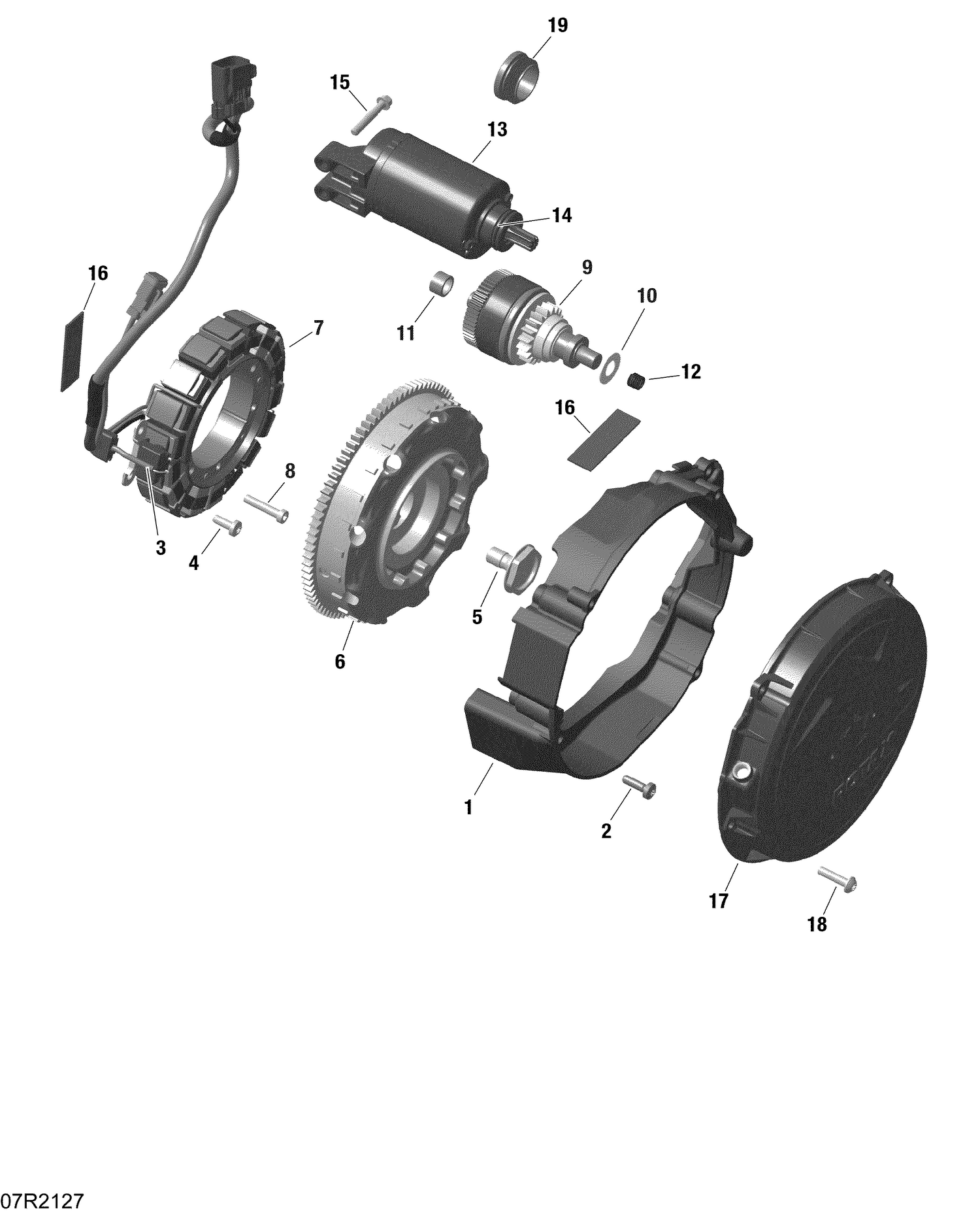

01- Rotax - Magneto - Manual and Electric Start
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911854 | Ignition Housing This part replaces 420911850. |
| 2 | 420441386 | Torx Flange Screw M6 X 20 |
| 3 | 420966844 | Pickup Ass'y This part replaces 420966841. |
| 4 | 420441386 | Torx Flange Screw M6 X 20 |
| 5 | 420840851 | Collar Hex Screw M12 X 25 |
| 6 | 420866048 | Magneto Flywheel This part replaces 420864437. |
| 7 | 420864427 | Stator Ass'y 55V/1300W |
| 8 | 420540000 | Allen Screw M6 x 30 |
| 16 | 420201360 | Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
| 18 | 420940431 | Plastite Screw |
