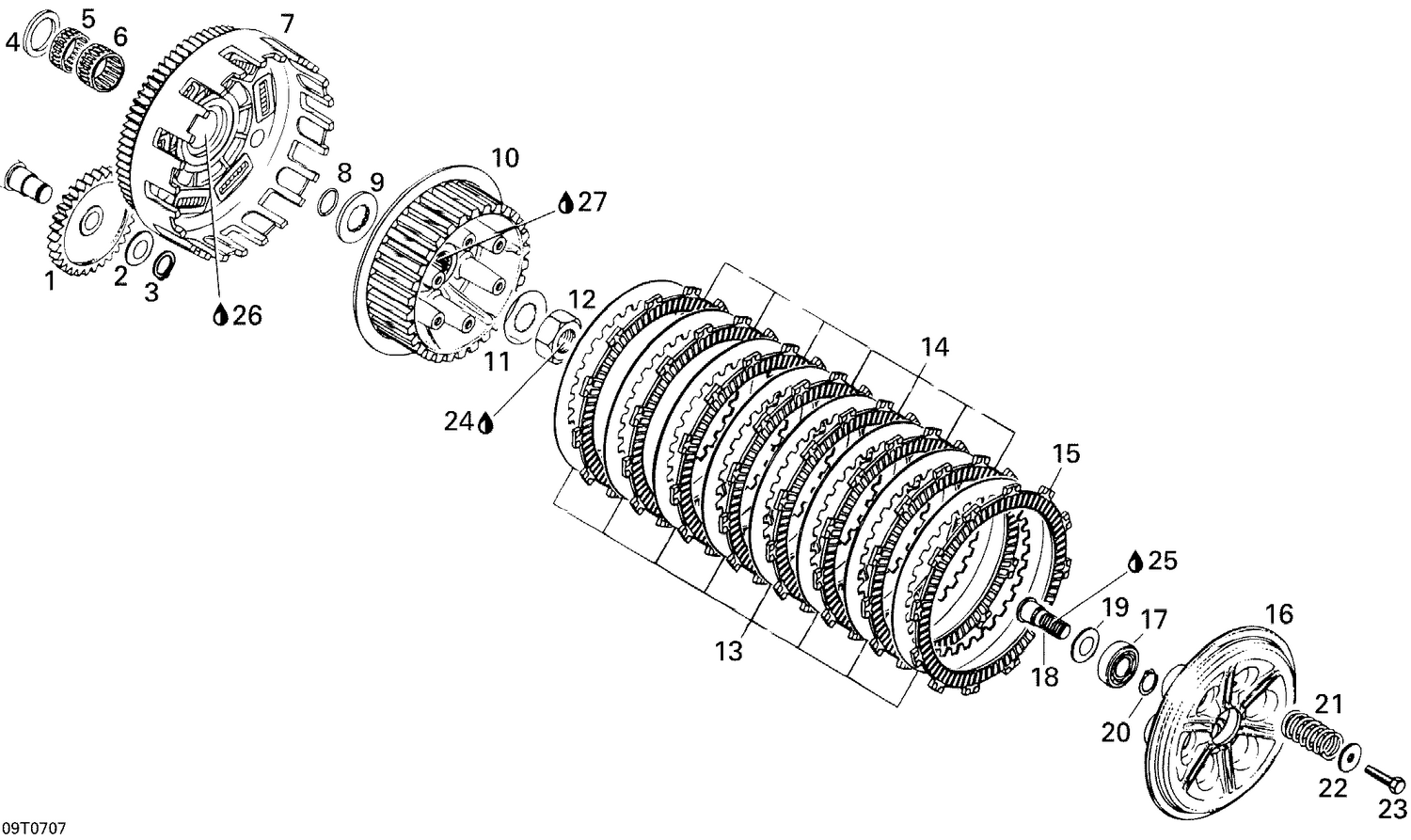

| Ref | Part Number | Description |
|---|
| 1 |
420235272 |
OIL PUMP GEAR - Call your local BRP dealership |
| 2 |
420227401 |
THRUST WASHER - Call your local BRP dealership |
| 3 |
420945650 |
RETAINING RING - Call your local BRP dealership |
| 4 |
420427460 |
Thrust Washer |
| 5 |
420932930 |
Needle Bearing |
| 6 |
420232890 |
Needle Bearing |
| 7 |
420296365 |
PRIMARY DRIVE ASS'Y - Call your local BRP dealership |
| 8 |
420250890 |
O-Ring |
| 9 |
420244950 |
THRUST WASHER - Call your local BRP dealership |
| 10 |
420259117 |
Clutch Hub |
| 11 |
420245325 |
TAB WASHER - Call your local BRP dealership |
| 12 |
420242607 |
NUT M18 - Call your local BRP dealership |
| 13 |
420259262 |
Plate 1,5 mm |
| 14 |
420259210 |
Friction Plate 3,5 mm |
| 15 |
420259215 |
FRICTION PLATE 3,5 MM - Call your local BRP dealership |
| 16 |
420259122 |
PRESSURE PLATE - Call your local BRP dealership |
| 17 |
420232262 |
BALL BEARING 6002 - Call your local BRP dealership |
| 18 |
420259203 |
RACK-ACTUATION CLUTCH - Call your local BRP dealership |
| 19 |
420227401 |
THRUST WASHER - Call your local BRP dealership |
| 20 |
420945650 |
RETAINING RING - Call your local BRP dealership |
| 21 |
420239162 |
CLUTCH SPRING - Call your local BRP dealership |
| 22 |
420244020 |
WASHER - Call your local BRP dealership |
| 23 |
207162544 |
Hex. Screw M6 X 25 |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293550030 |
Grease, Super Lube |
| 26 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
