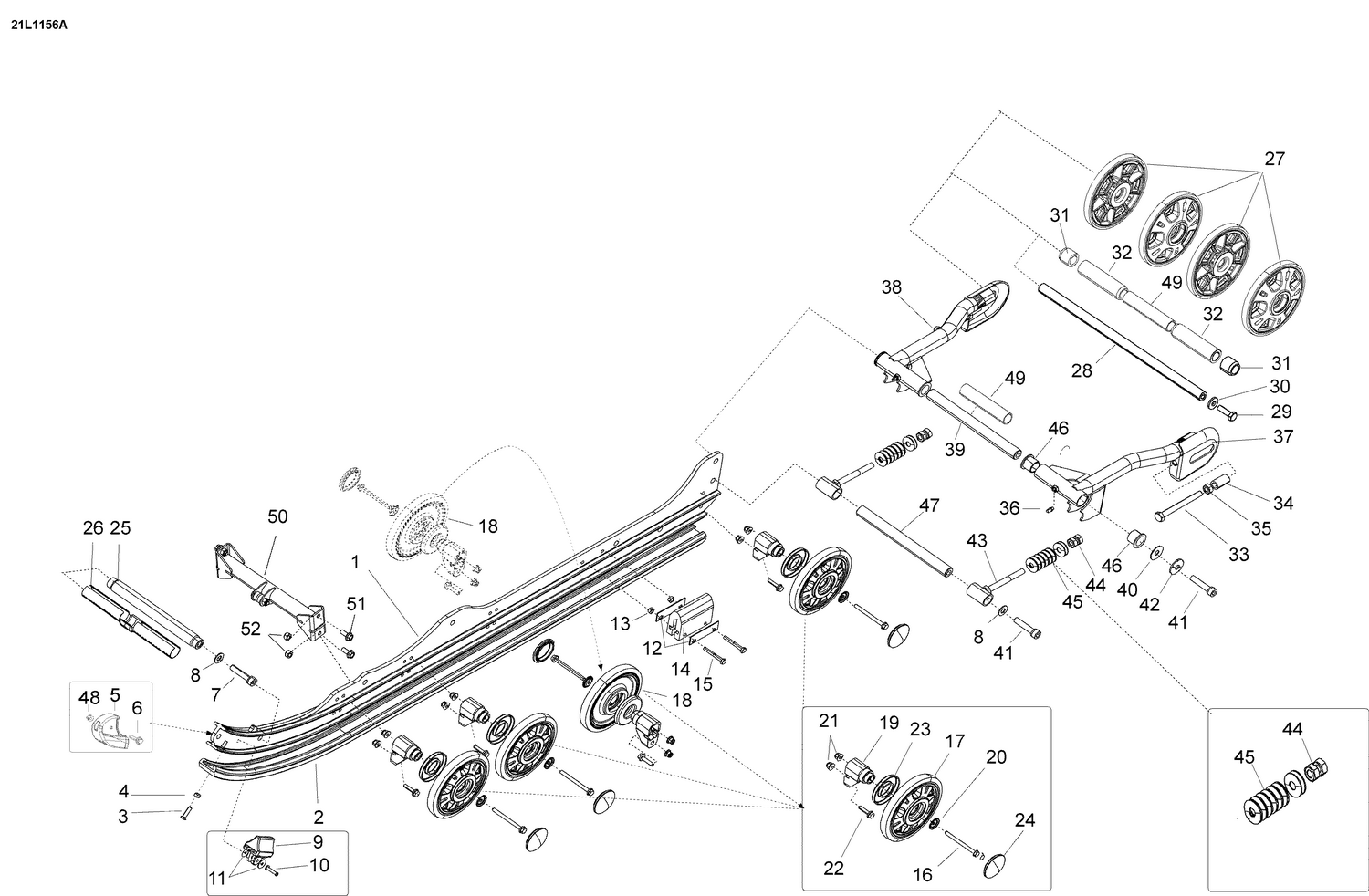

08- Rear Suspension
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192425 | Runner PPS 500 |
| 2 | 503191306 | Slider Shoe 137'', Black |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 33010 | Lock Nut M6 (1=10Pcs) |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 205504544 | Socket Screw |
| 8 | 234001410 | Flat Washer 10 mm |
| 9 | 503192106 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 548387 | Support plate - Call your local BRP dealership |
| 13 | 33010 | Lock Nut M6 (1=10Pcs) |
| 14 | 570023100 | Rubber Stopper |
| 15 | 207064044 | Hex. Screw M6 X 40 |
| 16 | 207667044 | Hex Flange Screw M6 x 65 |
| 17 | 503191942 | Wheel outside -141mm. |
| 18 | 503191316 | Wheel 141 Ass'y |
| 19 | 503193894 | Casted Support This part replaces 503192793. |
| 20 | 503191820 | Wheel Cup M6 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 207662544 | Hex. Flange Screw M6 X 25 |
| 23 | 503190434 | Labyrinth Seal |
| 24 | 570063600 | Wheel Cap |
| 25 | 503192927 | Shaft |
| 26 | 605355263 | Retainer Strap |
| 27 | 503192128 | Wheel 165 |
| 28 | 503191408 | Rear Axle |
| 29 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 30 | 503190439 | Washer |
| 31 | 503192048 | Spacer |
| 32 | 503192671 | Spacer |
| 33 | 40239 | Screw hex cap |
| 34 | 503192696 | Spacer |
| 35 | 232006414 | Hex. Nut M10 |
| 36 | 408200700 | Grease Fitting |
| 37 | 503192053 | Extension swing LH |
| 38 | 503192054 | Extension swing RH |
| 39 | 5347713 | Shaft |
| 40 | 20116 | Shim 10,5/30X1,5 ZNE |
| 41 | 205504547 | Screw socket grip |
| 42 | 512056700 | Lock Washer |
| 43 | 503192695 | Adjustment screw |
| 44 | 232006414 | Hex. Nut M10 |
| 45 | 25004 | Cup Spring |
| 46 | 31024 | Bearing |
| 47 | 503192927 | Shaft |
| 48 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 49 | 605448429 | Sleeve |
| 50 | 503192739 | Support lower, center shock |
| 51 | 207602587 | Screw M10 x 25 |
