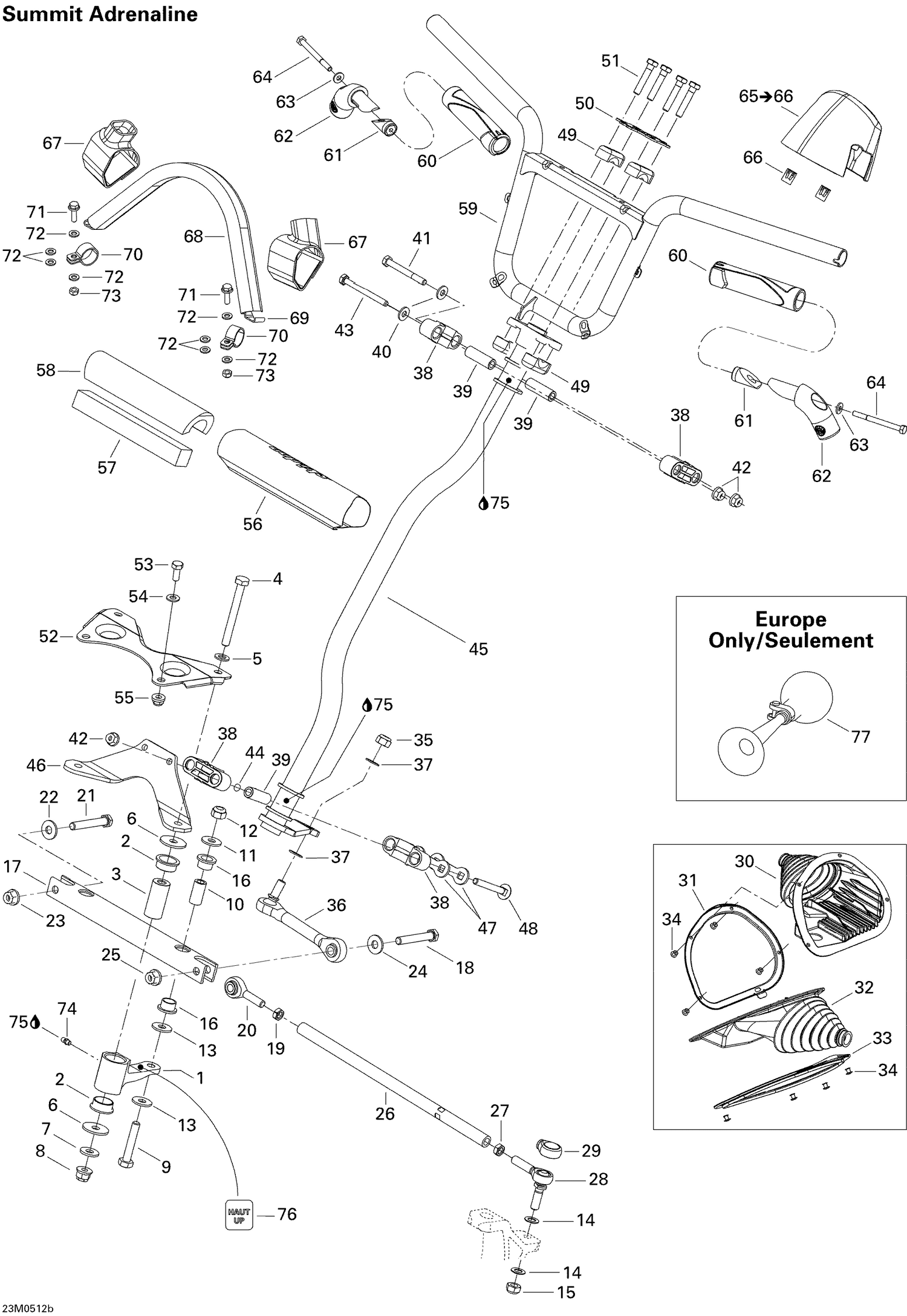

07- Steering System ADRENALINE
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506151627 | RH Swivel Arm |
| 1 | 506151628 | LH Swivel Arm |
| 2 | 415041100 | CUSHION - Call your local BRP dealership |
| 3 | 506151272 | SWIVEL PIVOT - Call your local BRP dealership |
| 4 | 207009086 | HEX. SCREW M10 X 90 - Call your local BRP dealership |
| 5 | 503183800 | Washer |
| 6 | 506150000 | Washer 10 mm |
| 7 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 8 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 9 | 207005544 | Hex. Screw M10 X 55 |
| 10 | 506151273 | Pivot Bar |
| 11 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 12 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 13 | 250200032 | Washer |
| 14 | 503175800 | Washer |
| 15 | 232501416 | Elastic Flange Nut M10 |
| 16 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 17 | 506151328 | SWIVEL BAR - Call your local BRP dealership |
| 18 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 19 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 20 | 506151810 | LH Ball Joint |
| 21 | 207004544 | Hex. Screw M10 X 45 |
| 22 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 23 | 233201414 | Hex. Flange Elastic Nut M10 |
| 24 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 25 | 233201414 | Hex. Flange Elastic Nut M10 |
| 26 | 506151375 | TIE-ROD - Call your local BRP dealership |
| 27 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 28 | 506151811 | Ball Joint |
| 29 | 506151650 | PROTECTION CAP - Call your local BRP dealership |
| 30 | 506151725 | RH Tie-Rod Cap |
| 31 | 506151356 | RH RETAINER RING - Call your local BRP dealership |
| 32 | 506151726 | LH Tie-Rod Cap |
| 33 | 506151357 | LH RETAINER RING - Call your local BRP dealership |
| 34 | 390909100 | Avex Rivet |
| 35 | 232501416 | Elastic Flange Nut M10 |
| 36 | 506151621 | BALL JOINT, DOUBLE - Call your local BRP dealership |
| 37 | 503175800 | Washer |
| 38 | 506150400 | Housing Half |
| 39 | 506150500 | Housing Bushing |
| 40 | 503189157 | Washer |
| 41 | 207087044 | Hex. Screw M8 X 70 |
| 42 | 233281414 | Hex. Flange Elastic Nut M8 |
| 43 | 207088044 | Hex. Screw M8 X 80 |
| 44 | 506151140 | O-RING - Call your local BRP dealership |
| 45 | 506151855 | Main Tube |
| 46 | 506151330 | STEERING SHAFT SUPPORT - Call your local BRP dealership |
| 47 | 506150600 | Stopper Plate |
| 48 | 207787044 | Carriage Bolt M8 X 70 |
| 49 | 709400919 | Steering Support This part replaces 506151622. |
| 50 | 506151547 | REINFORCEMENT - Call your local BRP dealership |
| 51 | 250000082 | HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership |
| 52 | 506151536 | PIVOT SUPPORT - Call your local BRP dealership |
| 53 | 207182544 | Hex. Screw M8 X 25 |
| 54 | 234081410 | Flat Washer 8 mm |
| 55 | 233281414 | Hex. Flange Elastic Nut M8 |
| 56 | 506151860 | Steering Cover |
| 57 | 506151861 | Steering Cover Foam Insert |
| 58 | 506151862 | Steering Cover Foam |
| 59 | 506151767 | HANDLEBAR - Call your local BRP dealership |
| 60 | 506151595 | Handle Grip |
| 61 | 506151827 | LOCK WEDGE - Call your local BRP dealership |
| 62 | 506151825 | SHORT J-HOOK - Call your local BRP dealership |
| 63 | 250200039 | Flat Washer |
| 64 | 207067084 | HEX. SCREW M6 X 70 - Call your local BRP dealership |
| 66 | 517302785 | Edge Clip |
| 67 | 506151738 | PROTECTOR - Call your local BRP dealership |
| 68 | 506152115 | Strap Ass'y This part replaces 415095500. |
| 69 | 506152115 | Strap Ass'y This part replaces 415090200. |
| 70 | 506152536 | Black Support Plate This part replaces 506151792. |
| 71 | 207662084 | Hex. Flange Screw M6 X 20 |
| 72 | 234061410 | Flat Washer 6 mm |
| 73 | 232561414 | Elastic Stop Nut M6 |
| 74 | 408200700 | Grease Fitting |
| 75 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 76 | 516001750 | Upper Decal |
