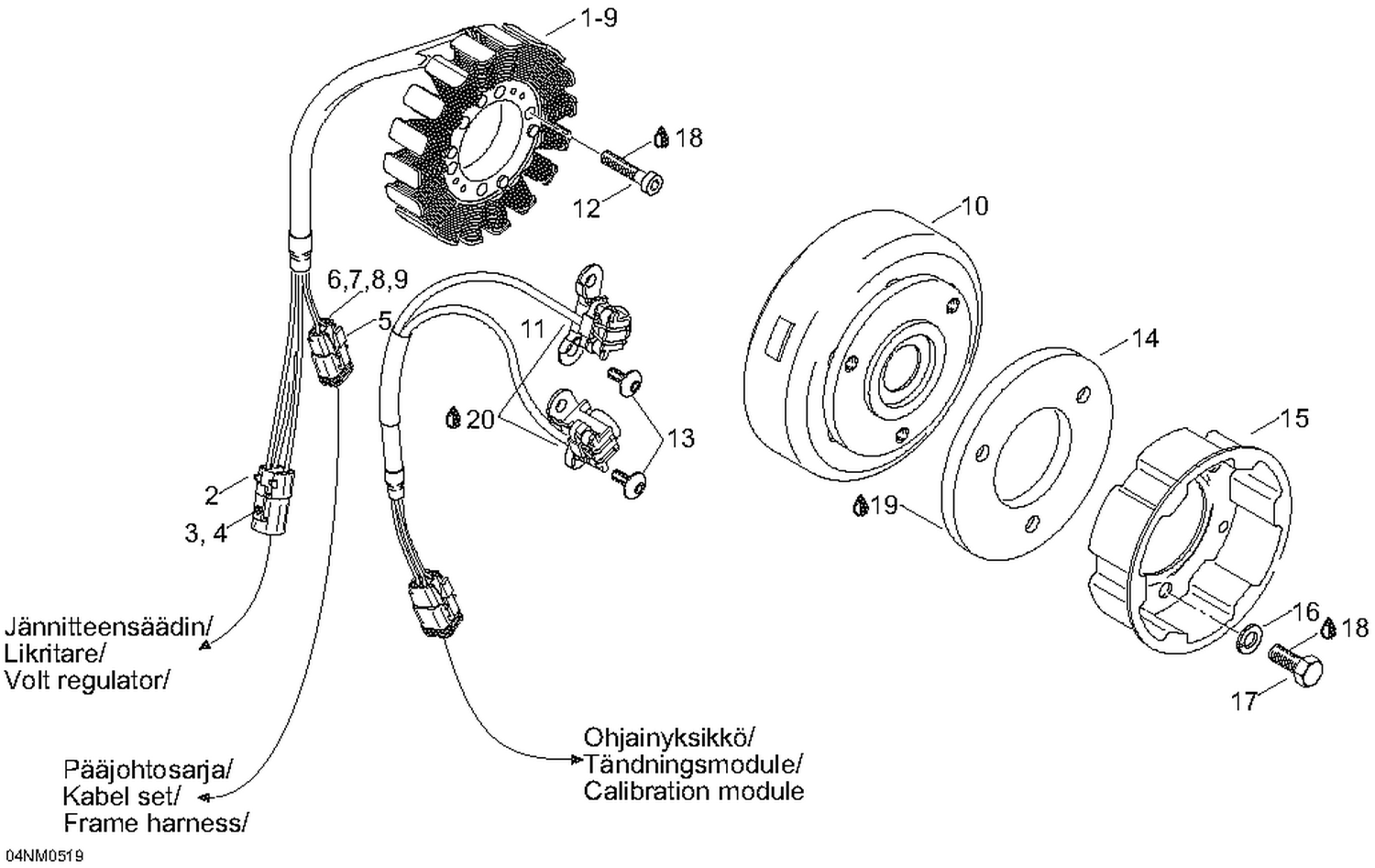

03- Magneto
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278001473 | Female terminal housing |
| 3 | 515175568 | Female terminal |
| 4 | 278001474 | Female lock |
| 5 | 515175760 | HEADLAMP BUSHING - Call your local BRP dealership |
| 6 | 278000632 | Female terminal |
| 7 | 278001661 | FEMALE TERMINAL - Call your local BRP dealership |
| 8 | 515175675 | Female lock |
| 9 | 293000052 | Sealing Cap |
| 10 | 420888324 | Magneto flywheel |
| 11 | 410922948 | Pickup Ass'y This part replaces 420966803. |
| 12 | 205063044 | Allen screw M6x30 This part replaces 420840880. |
| 13 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 14 | 420866756 | Fly wheel |
| 15 | 420852533 | Starting Pulley This part replaces 420852532. |
| 15 | 420852590 | Starter cup |
| 16 | 420827405 | Lock washer |
| 17 | 207182044 | Hex. Cap Screw M8 x 20 This part replaces 420940591. |
| 17 | 420841520 | Socket head screw M8 x 12 |
| 18 | 293800060 | Loctite 243, 10ml |
| 19 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
