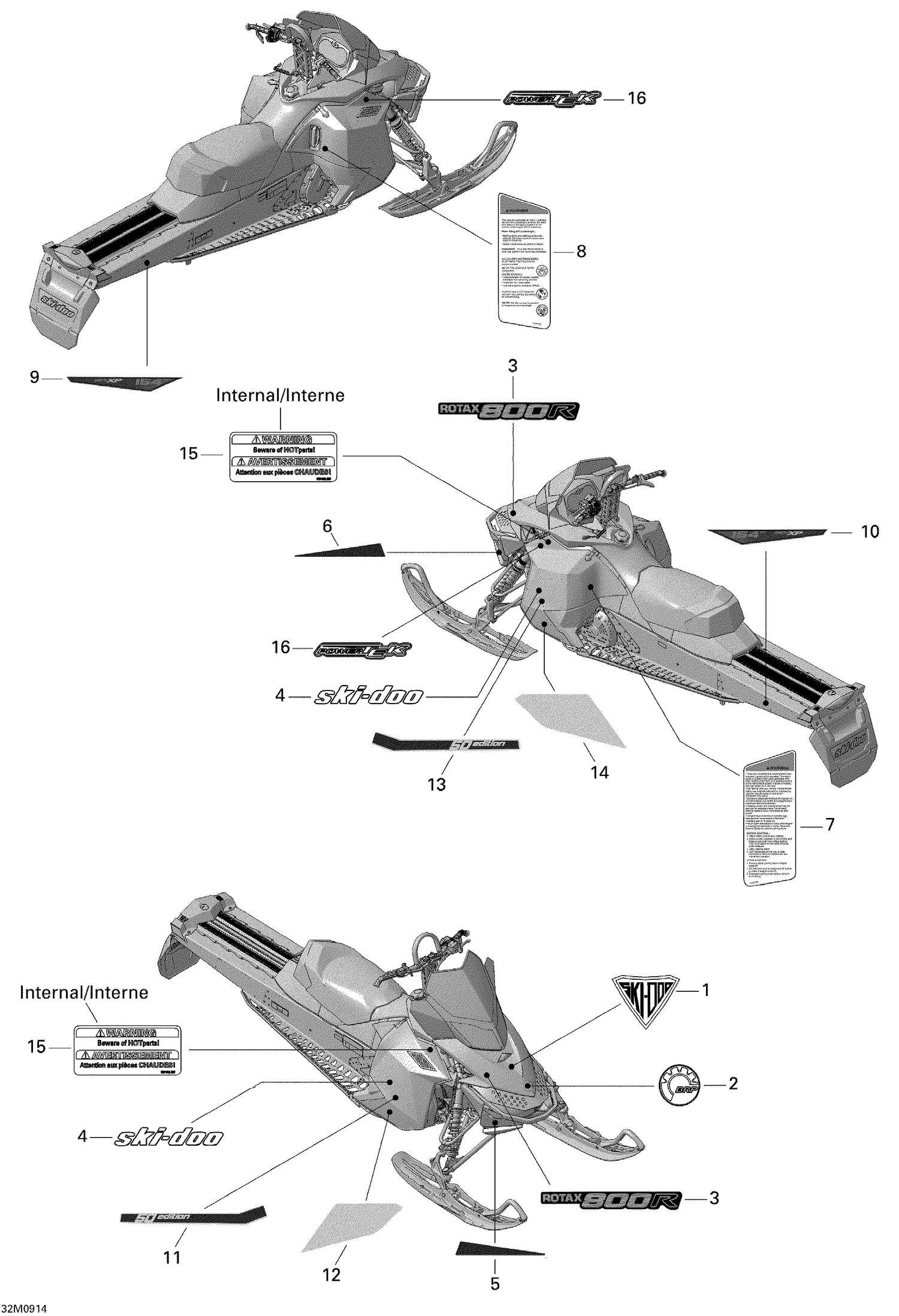

| Ref | Part Number | Description |
|---|
| 1 |
516003758 |
PLATE HOOD, CENTRAL - Call your local BRP dealership |
| 2 |
516008739 |
BRP Logo 68mm This part replaces 219902469. |
| 3 |
516003440 |
HOOD DECAL, ROTAX 800R - Call your local BRP dealership |
| 4 |
516003756 |
LOWER DECAL - Call your local BRP dealership |
| 5 |
516003753 |
RH UPPER BOTTOM PAN - Call your local BRP dealership |
| 6 |
516003752 |
LH UPPER BOTTOM PAN - Call your local BRP dealership |
| 7 |
516003788 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 8 |
516003790 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 9 |
516003684 |
RH FRAME DECAL, REV XP 154 - Call your local BRP dealership |
| 10 |
516003683 |
LH FRAME DECAL, REV XP 154 - Call your local BRP dealership |
| 11 |
516003755 |
RH LOWER DECAL - Call your local BRP dealership |
| 12 |
516003908 |
RH LOWER DECAL, YELLOW - Call your local BRP dealership |
| 13 |
516003754 |
LH Lower Decal |
| 14 |
516003907 |
LH Lower Decal, Yellow |
| 15 |
516002965 |
WARNING DECAL, HOT PARTS - Call your local BRP dealership |
