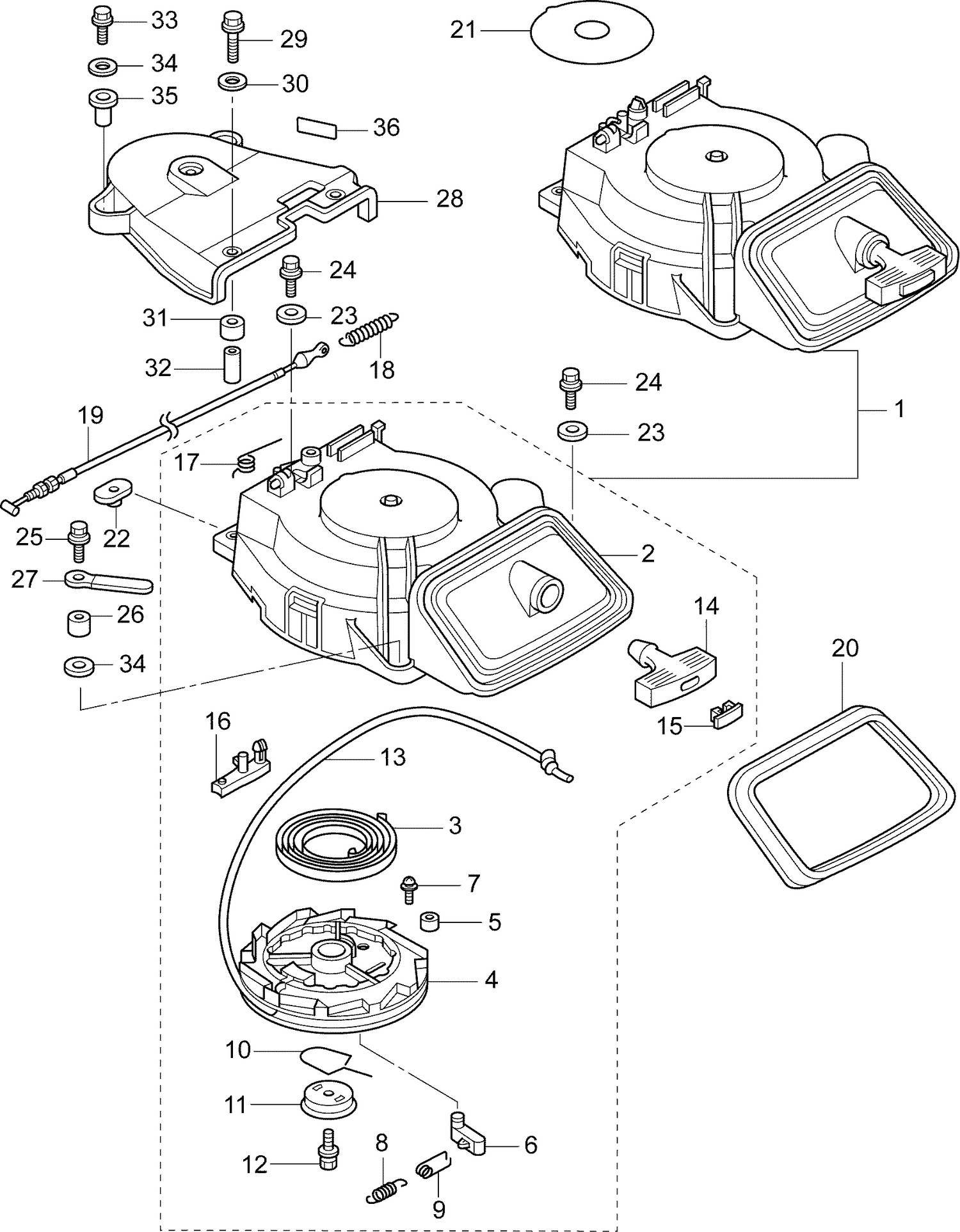

15-0_RECOIL STARTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5040641 | RECOIL STARTER ASSEMBLY |
| 18 | 5040452 | STARTER LOCK CAM SPRING |
| 19 | 5040645 | STARTER LOCK WIRE |
| 20 | 5040698 | STARTER SEAL |
| 21 | 5041150 | CAUTION DECAL (B) |
| 22 | 5040831 | NUT |
| 24 | 5040487 | PRECOATED BOLT 6-20 |
| 25 | 5040453 | PRECOATED BOLT 6-30 |
| 26 | 5041031 | Collar Bracket |
| 28 | 5041198 | BELT COVER |
| 29 | 5041550 | BOLT |
| 31 | 5041196 | RUBBER MOUNT |
| 32 | 5041197 | COLLAR 6.2-9-21 |
| 33 | 5041548 | BOLT |
| 35 | 5040657 | Collar 6.1-9-8.9 |
