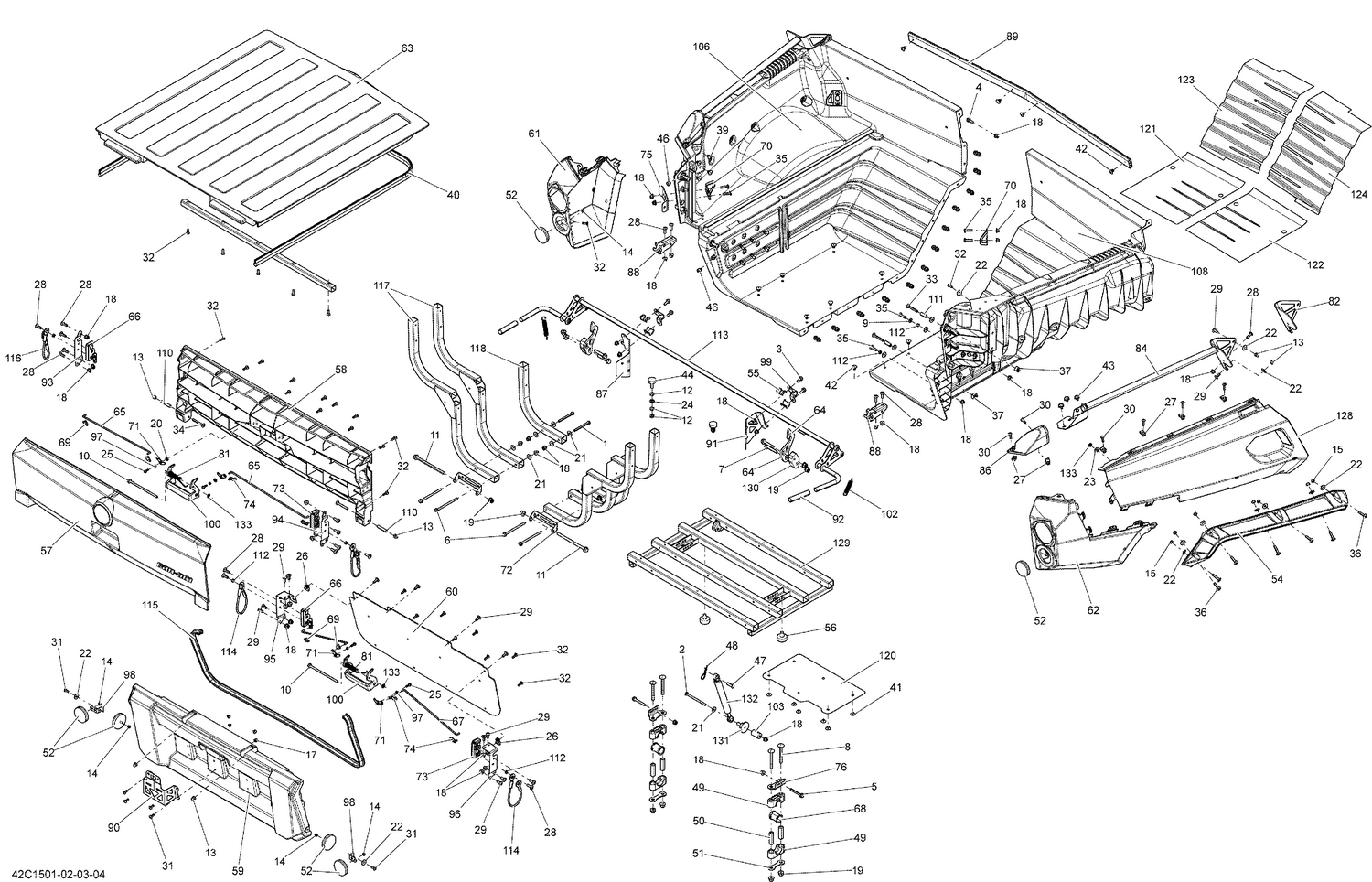

09- Rear Cargo Box _42C1504
Parts (124)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207066544 | Hex. Screw M6 X 65 |
| 2 | 207069044 | Hex. Screw M6 X 90 |
| 3 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 207665044 | Hex. Flange Screw M6 X 50 |
| 6 | 207669584 | Hex. Flange Screw M6 X 95 |
| 7 | 207684586 | Hex. Flange Screw M8 X 45 |
| 8 | 207787044 | Carriage Bolt M8 X 70 |
| 9 | 224061121 | Flat Washer |
| 10 | 230663084 | Hex. Flange Screw M6 X 130 |
| 11 | 230683034 | Hex. Flange Screw M8 X 130 |
| 12 | 232180600 | Hex. Jam Nut M8 |
| 13 | 232361493 | Domed Nut M6 |
| 14 | 232551414 | Elastic Stop Nut M5 |
| 15 | 232561434 | Elastic Stop Nut M6 |
| 17 | 233251434 | Flange Elastic Nut M5 |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 234061410 | Flat Washer 6 mm |
| 21 | 234062410 | Flat Washer 6 mm |
| 22 | 234062670 | Stainless Steel Flat Washer |
| 23 | 234081100 | Flat Washer 8 mm, Nylon |
| 24 | 234181401 | Lock Washer 8 mm |
| 25 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 26 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 27 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 28 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 29 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 30 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 31 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 32 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 33 | 250000215 | Torx Screw M6 X 45 |
| 34 | 250000749 | Torx Truss Screw M6 X 50 This part replaces 250000239. |
| 35 | 250000284 | Torx Screw M6 x 25 |
| 36 | 250000842 | Stainless, Torx Screw M6 X 30 This part replaces 250000371. |
| 37 | 269500725 | M6 Nut Housing Ass'y |
| 39 | 293150100 | Pop Rivet 3/16" |
| 40 | 219704451 | Was 293250240 Neoprene Seal |
| 41 | 293150103 | Pop Rivet 3/16" |
| 42 | 293150104 | Pop Rivet 3/16" |
| 43 | 293150190 | Pop Rivet 3/16 |
| 44 | 293720091 | Frame Rubber Bumper |
| 46 | 293830005 | Rubber Bumper |
| 47 | 414079100 | Pin |
| 48 | 414575600 | Hair Pin |
| 49 | 506150400 | Housing Half |
| 50 | 506150500 | Housing Bushing |
| 51 | 506150600 | Stopper Plate |
| 52 | 705011221 | Red Reflector This part replaces 705002408. |
| 54 | 705008671 | LH Upper Rear Mudguards |
| 54 | 705008673 | RH Upper Rear Mudguards |
| 55 | 705500033 | Half Ring |
| 56 | 708000884 | Rubber Stopper |
| 57 | 708300442 | CAMO OUTSIDE TOP PANNEL - Call your local BRP dealership |
| 57 | 708301256 | Yellow Outside Top Pannel |
| 57 | 708302403 | Timeless Black, Top Panel This part replaces 708301583. |
| 58 | 708300053 | Inside Top Pannel |
| 59 | 715002365 | Outside Bottom Pannel Ass'y This part replaces 715001255. |
| 60 | 708300073 | INSIDE BOTTOM PANNEL - Call your local BRP dealership |
| 61 | 708301383 | LH Rear Facia |
| 62 | 708301384 | RH Rear Facia |
| 63 | 708300131 | Separator Pannel Ass'y |
| 64 | 708300136 | Box Retainer |
| 65 | 708300160 | Top Rod |
| 66 | 708300162 | LH Latch |
| 67 | 708300164 | Lower Bottom Rod |
| 68 | 708300172 | Pivot Bushing |
| 69 | 708300182 | LH Tie Rod Clip |
| 70 | 708300183 | Retaining Plate |
| 71 | 708300184 | Activator |
| 72 | 708300185 | Bracket Pivot |
| 73 | 708300201 | RH Latch |
| 74 | 708300202 | RH Tie Rod Clip |
| 75 | 708300206 | Retaining Plate Support |
| 76 | 708300210 | Adjustable Stopper Plate |
| 81 | 708300219 | Spring |
| 82 | 708300333 | LH Painted Rail Cap |
| 82 | 708300334 | RH Painted Rail Cap |
| 84 | 708300231 | LH Welded Rail |
| 84 | 708300232 | RH Welded Rail |
| 86 | 708301380 | LH Rail Cover |
| 86 | 708301381 | RH Rail Cover |
| 87 | 708300278 | LH Latch Lever Support |
| 88 | 708300345 | Upper Pivot Support |
| 89 | 708301633 | Front Support |
| 90 | 708300349 | Plate Support |
| 91 | 708300351 | RH Latch Lever Support |
| 92 | 708300358 | Cap Latch Lever |
| 93 | 708300359 | LH Upper Support |
| 94 | 708300360 | RH Upper Support |
| 95 | 708300361 | LH Lower Support |
| 96 | 708300362 | RH Lower Support |
| 97 | 708300365 | Bushing |
| 98 | 708300367 | REFLECTOR SUPPORT - Call your local BRP dealership |
| 99 | 708300392 | Clamp Reatiner |
| 100 | 708300398 | Handle |
| 102 | 708300454 | Spring |
| 103 | 708300470 | Spacer |
| 106 | 715002361 | Left Box Kit |
| 108 | 715002915 | RIGHT BOX KIT - Call your local BRP dealership This part replaces 715002357. |
| 110 | 708300735 | Bushing |
| 111 | 708300736 | Spacer |
| 112 | 708300737 | Bushing |
| 113 | 708300751 | Cargo Handle Ass'y |
| 114 | 708300762 | Lower Retainer Cable |
| 115 | 219704451 | Was 293250240 Neoprene Seal |
| 116 | 708300763 | Upper Retainer Cable |
| 117 | 708300879 | Black Welded Lateral Support |
| 118 | 708300877 | Black Lateral Support |
| 120 | 708300780 | Heat Deflector |
| 121 | 708300809 | Heat Deflector Sheet |
| 122 | 708300810 | Heat Deflector Sheet |
| 123 | 708300811 | Heat Deflector Sheet |
| 124 | 708300812 | Heat Deflector Sheet |
| 128 | 708300834 | FENDER REAR L B-005 - Call your local BRP dealership |
| 128 | 708300835 | FENDER REAR R B-005 - Call your local BRP dealership |
| 128 | 708301242 | Yellow LH Rear Fender |
| 128 | 708301243 | YELLOW RH REAR FENDER - Call your local BRP dealership |
| 128 | 708301312 | Brush Aluminum LH Rear Fender |
| 128 | 708301313 | Brush Aluminum RH Rear Fender |
| 129 | 708300875 | Black Box Support |
| 130 | 708300902 | Spacer |
| 131 | 708301059 | Spacer |
| 132 | 708301136 | Gaz Shock |
