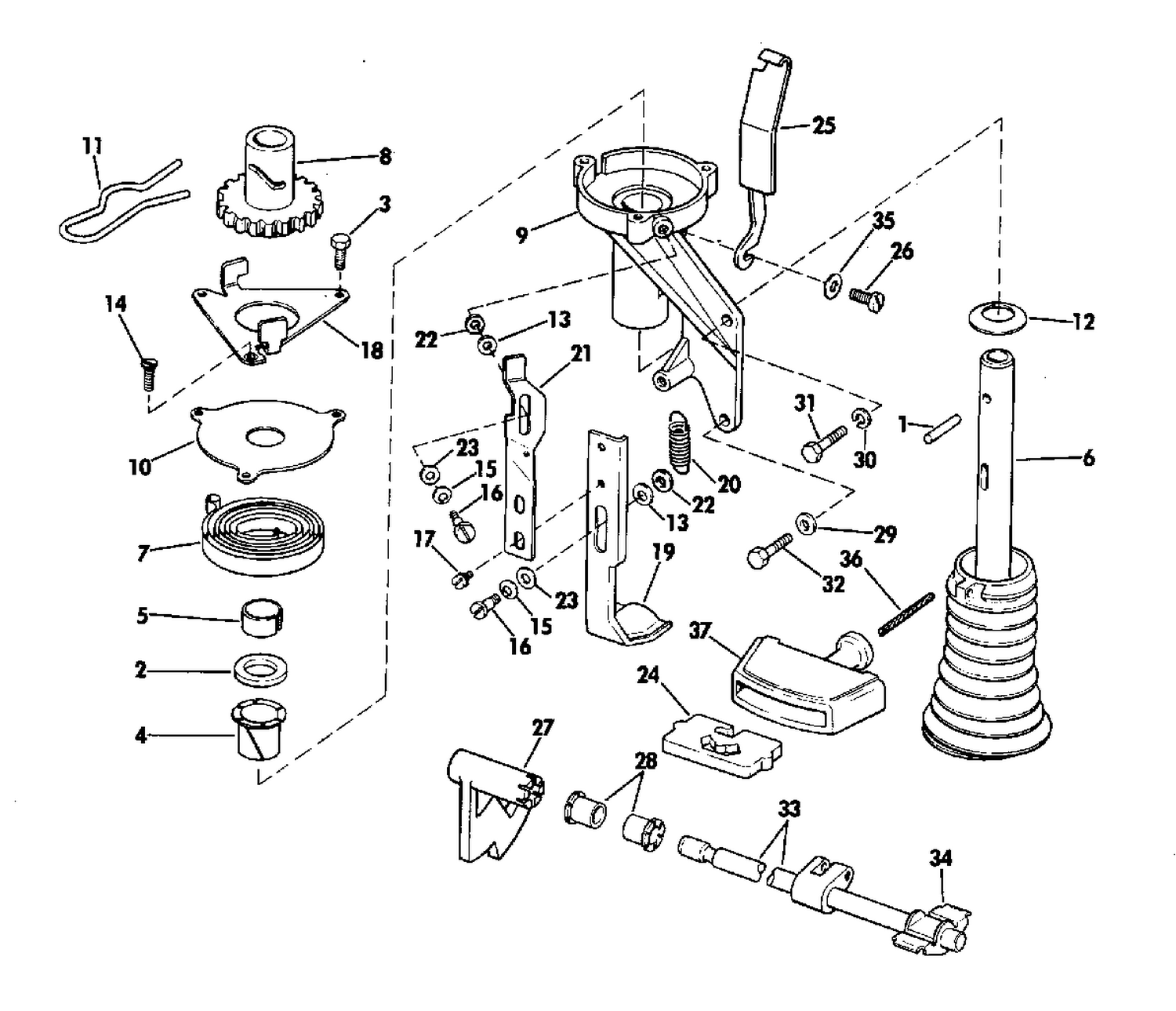

REWIND STARTER
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0317518 | PIN, Pinion |
| 2 | 0313925 | THRUST WASHER |
| 3 | 0317602 | SCREW, Cover to bracket |
| 4 | 0317382 | BUSHING, Starter shaft |
| 5 | 0317391 | RETAINER, Starter spring |
| 6 | 0385948 | SPOOL & STARTER REWIND |
| 7 | 0031738 | SPRING, Starter rewind |
| 8 | 0317530 | PINION, Starter |
| 9 | 0317375 | BRACKET, Rewind starter |
| 10 | 0317379 | STARTER, Brkt |
| 11 | 0317531 | SPRING, Pinion drag |
| 12 | 0318617 | SPRING, Washer |
| 15 | 0309750 | RONDELLE, ressort - Tige soupape d'échappement |
| 16 | 0318529 | SHOULDER SCREW |
| 17 | 0317601 | SCREW, Cam to link |
| 18 | 0317603 | LATCH, Spring pinion |
| 19 | 0317604 | LINK, Starter lockout |
| 20 | 0317610 | SPRING, Starter lockout |
| 21 | 0317605 | CAM, Starter lockout |
| 23 | 0303886 | LOCKWASHER |
| 25 | 0318610 | GUIDE, Starter rope |
| 26 | 0309905 | SCEW,Cylinder head |
| 27 | 0317538 | CAM, Shaft interlock |
| 28 | 0312708 | BUSHING |
| 29 | 0306453 | LOCKWASHER, Fuel pump |
| 31 | 0302479 | VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 33 | 0385302 | LEVER & SHIFT SHAFT ASSY |
| 34 | 0317606 | LEVER |
| 35 | 0316676 | LOCKWASHER, Ground |
| 36 | ROPE, | Rewind starter |
| 0385208 | 0385208 | STARTER ASSEMBLY |
