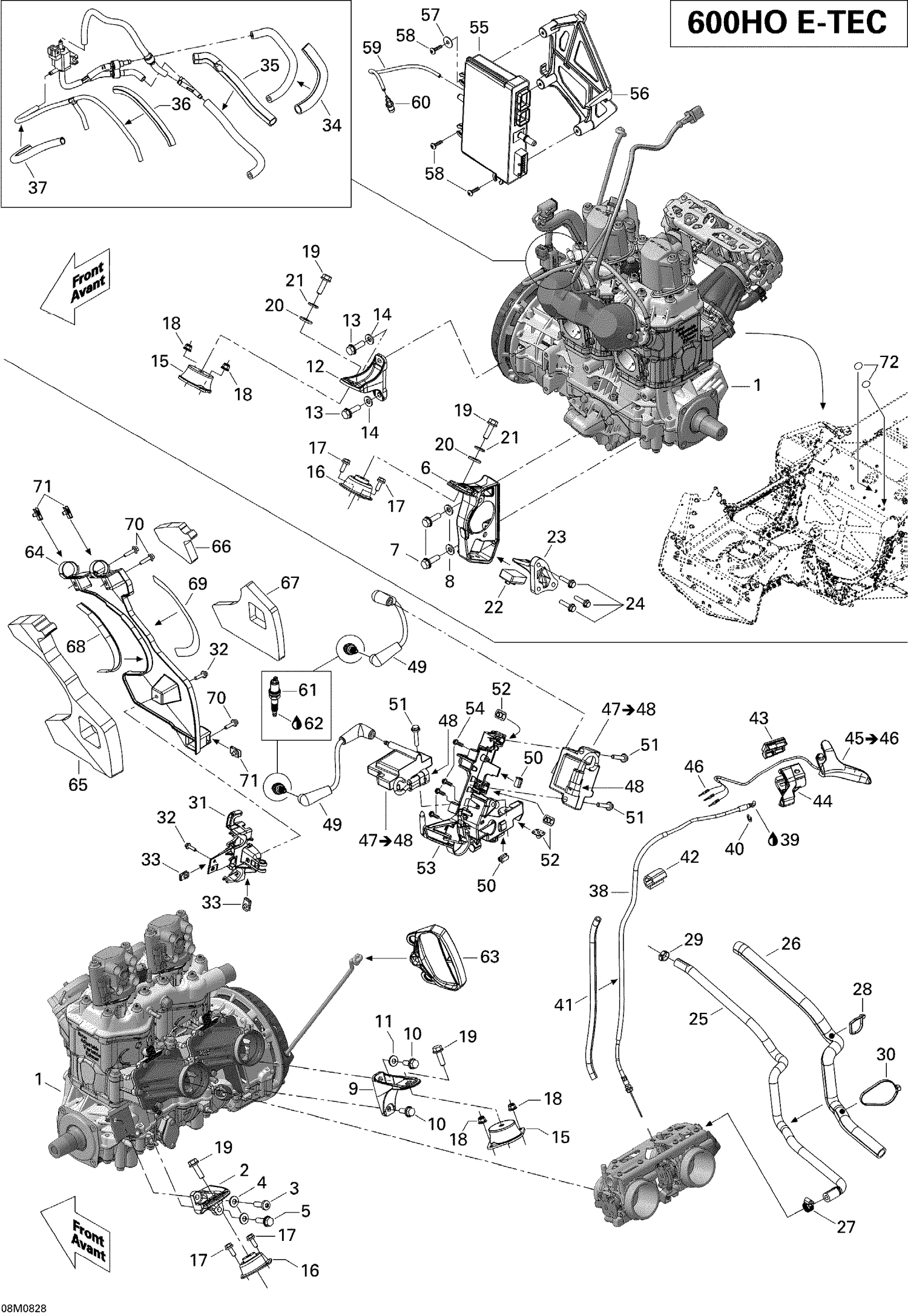

| Ref | Part Number | Description |
|---|
| 1 |
400604029 |
Engine 593 HOE |
| 2 |
512060478 |
Rear Support, PTO This part replaces 512060173. |
| 3 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 4 |
234281474 |
Conical Spring Washer M8 |
| 5 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 6 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060203. |
| 7 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 8 |
234281474 |
Conical Spring Washer M8 |
| 9 |
512060559 |
Rear Support, MAG This part replaces 512060114. |
| 10 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 11 |
234281474 |
Conical Spring Washer M8 |
| 12 |
512060108 |
FRONT SUPPORT, MAG - Call your local BRP dealership |
| 13 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 14 |
234281474 |
Conical Spring Washer M8 |
| 15 |
512060729 |
Rubber Mount This part replaces 512060246. |
| 16 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 17 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 20 |
503183200 |
Yellow, Washer |
| 21 |
234281474 |
Conical Spring Washer M8 |
| 22 |
512060179 |
STOPPER - Call your local BRP dealership |
| 23 |
512060576 |
Stopper Support This part replaces 512060180. |
| 24 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 25 |
512060740 |
Formed Hose, Output This part replaces 512060349. |
| 26 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 27 |
293650170 |
Tridon Gear Clamp |
| 28 |
414115200 |
Tie-Rap 180 mm |
| 29 |
293650025 |
Oetiker Gear Clamp |
| 30 |
414115200 |
Tie-Rap 180 mm |
| 31 |
512060298 |
Solenoid Support |
| 32 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 33 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 34 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 35 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 36 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 37 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 38 |
512060611 |
Throttle Cable This part replaces 512060230. |
| 39 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 40 |
414274500 |
Circlip |
| 41 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 42 |
512060313 |
Protector |
| 43 |
512060198 |
Upper Housing Ass'y |
| 44 |
512060197 |
LOWER HOUSING - Call your local BRP dealership |
| 46 |
515175232 |
Male Terminal |
| 48 |
710000568 |
Housing |
| 49 |
512061126 |
Ignition Cable, 177mm long This part replaces 512060094. |
| 50 |
409014200 |
CLIP - Call your local BRP dealership |
| 51 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 52 |
293100003 |
Nut Welded, M6 |
| 53 |
512060888 |
Ignition Coils Support This part replaces 512060287. |
| 54 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 55 |
512060089 |
Calibrated Module |
| 56 |
512060858 |
Calibrated Module Support This part replaces 512060297. |
| 57 |
250200040 |
Flat Washer |
| 58 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 59 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 60 |
414814100 |
Male Connector |
| 61 |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129375. |
| 62 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 63 |
512060136 |
Starter Grip |
| 64 |
512060339 |
NOISE SHIELD - Call your local BRP dealership |
| 65 |
512060343 |
Interior Noise Foam |
| 66 |
512060344 |
Upper Exterior Noise Foam |
| 67 |
512060362 |
LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership |
| 68 |
512060574 |
Heat Shield This part replaces 512060358. |
| 69 |
512060575 |
Heat Shield This part replaces 512060371. |
| 70 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 71 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
