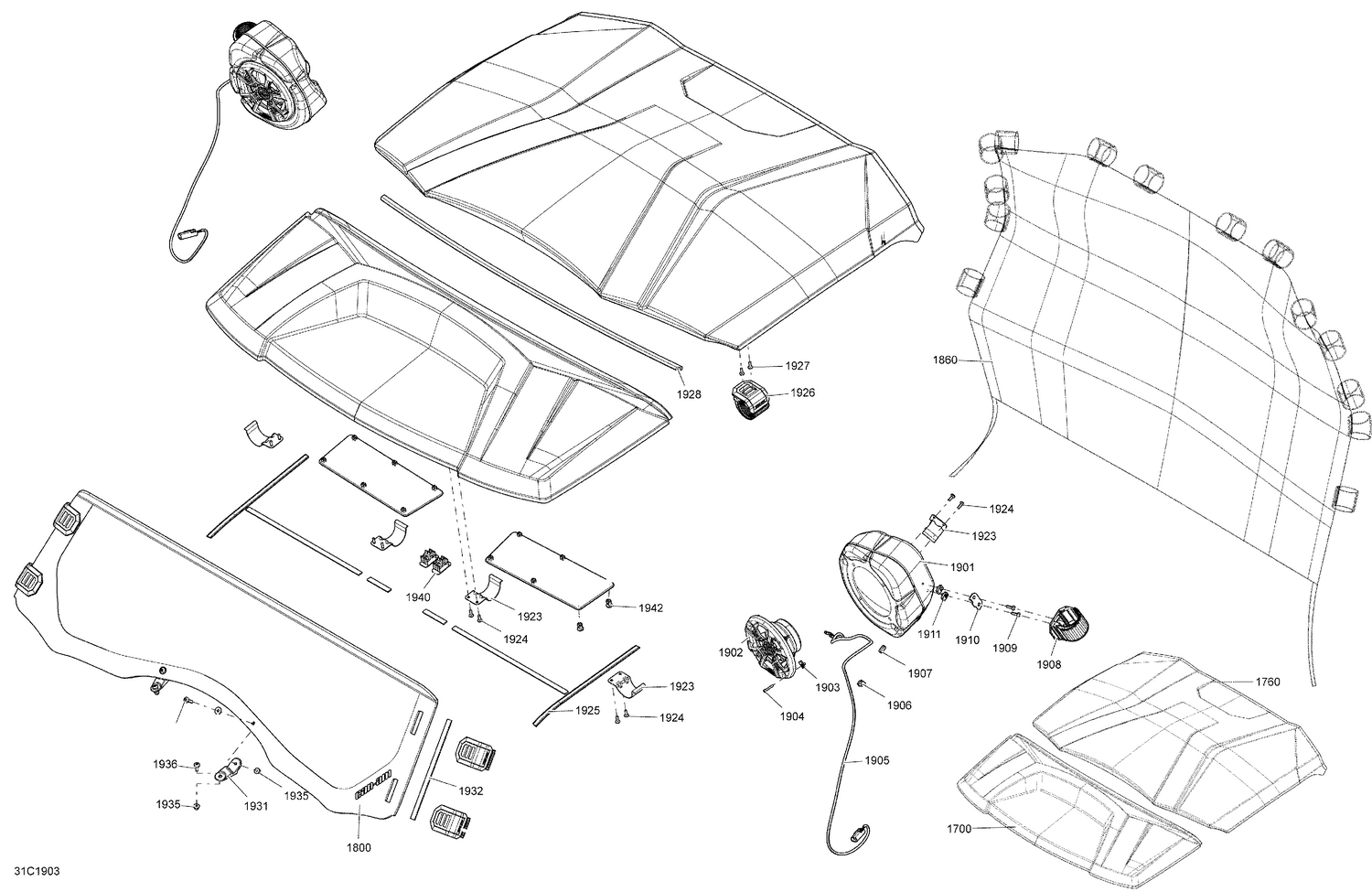

09- Body And Accessories - Accessories - Package LTD
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1700a | 705009030 | U Brace Strip |
| 1700b | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1700c | 710007173 | Plug Carling This part replaces 710001999. |
| 1700d | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1760a | 219704368 | Seal Tray 1000Mm Long |
| 1760b | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1800 | 703501024 | Windshield Half Ass'y |
| 1860 | 715003078 | Wind Deflector |
| 1901 | 710002837 | LH Speaker Box Ass'y |
| 1901 | 710002839 | RH Speaker Box Ass'y |
| 1902 | 710002838 | Speaker |
| 1903 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 1904 | 250000622 | Torx Pan Screw M4 X 20 |
| 1905 | 710004341 | Speaker Harness |
| 1906 | 414227300 | Clip |
| 1907 | 414036300 | Grommet |
| 1908 | 705013420 | Retainer Velcro Perforated |
| 1909 | 250000724 | Torx Screw M5 X 20 |
| 1910 | 710002946 | M5 Support Plate |
| 1911 | 250000958 | Panel Nut M5 X 0.8 |
| 1923 | 705009030 | U Brace Strip |
| 1924 | 250000720 | Torx Screw K50 X 16 |
| 1925 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1926 | 705011349 | J Clip |
| 1926 | 705013420 | Retainer Velcro Perforated |
| 1927 | 250000720 | Torx Screw K50 X 16 |
| 1928 | 219704368 | Seal Tray 1000Mm Long |
| 1931 | 705006537 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 1932 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1935 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1936 | 250000488 | Torx Truss Screw M6 X 20 |
| 1937 | 705009030 | U Brace Strip |
| 1938 | 250000720 | Torx Screw K50 X 16 |
| 1939 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1940 | 710007173 | Plug Carling This part replaces 710001999. |
