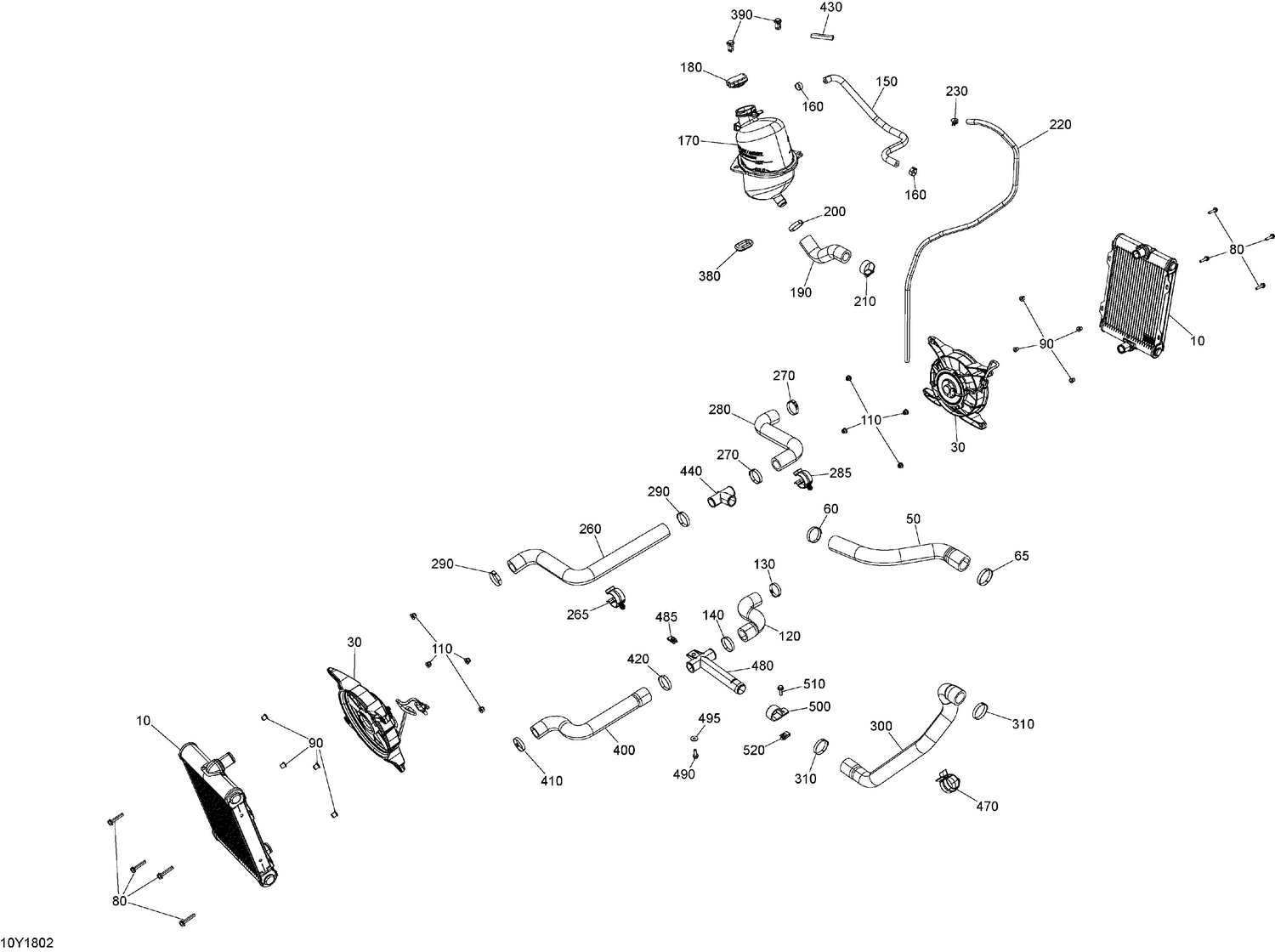

01- Cooling — Parts Catalog

Parts (43)

Ref	Part Number	Description
10	709200529	Radiator
30	709200523	Fan
50	709200871	Upper Formed Water Pump Hose This part replaces 709200322.
60	509000045	Oetiker Gear Clamp 36.1MM
65	293650199	Oetiker Gear Clamp
80	207663046	Hex. Flange Screw M6 X 30
90	709200553	Sleeve
110	233261414	Hex. Flange Elastic Nut M6 x 1.0
120	709200872	RH Lower Formed Radiator Hose This part replaces 709200512.
130	509000045	Oetiker Gear Clamp 36.1MM
140	293650199	Oetiker Gear Clamp
150	709200324	Formed Hose
160	293650046	Oetiker Clamp
170	709200749	Coolant Tank
180	509000187	Pressure Cap
190	709200874	Lower Formed Coolant Tank Hose This part replaces 709200499.
200	293650165	Oetiker Gear Clamp
210	293650051	Tridon Gear Clamp
220	219704410	Polyurethane Hose 10000Mm Long
230	414554800	Spring Clamp
260	709200875	LH Upper Radiator Hose This part replaces 709200511.
265	275500951	Clip
270	509000045	Oetiker Gear Clamp 36.1MM
280	709200876	RH Upper Radiator Hose Formed This part replaces 709200510.
285	275500951	Clip
290	509000045	Oetiker Gear Clamp 36.1MM
300	709200877	Lower Formed Water Pump Hose This part replaces 709200321.
310	293650199	Oetiker Gear Clamp
380	705003668	Oblong Grommet
390	293150230	Tuflok Plastic Rivet This part replaces 293150089.
400	709200878	LH Lower Formed Radiator Hose This part replaces 709200518.
410	509000045	Oetiker Gear Clamp 36.1MM
420	293650199	Oetiker Gear Clamp
430	219704354	Trim 1000Mm Long
440	509000219	T-Fitting
470	275500590	Retainer
480	709200580	Manifold
485	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
490	207662044	Hex. Flange Screw M6 X 20
495	234062410	Flat Washer 6 mm
500	293750035	Open Clamp
510	207562034	Hex. Flange Screw M6 X 20, Scotch Grip
520	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
