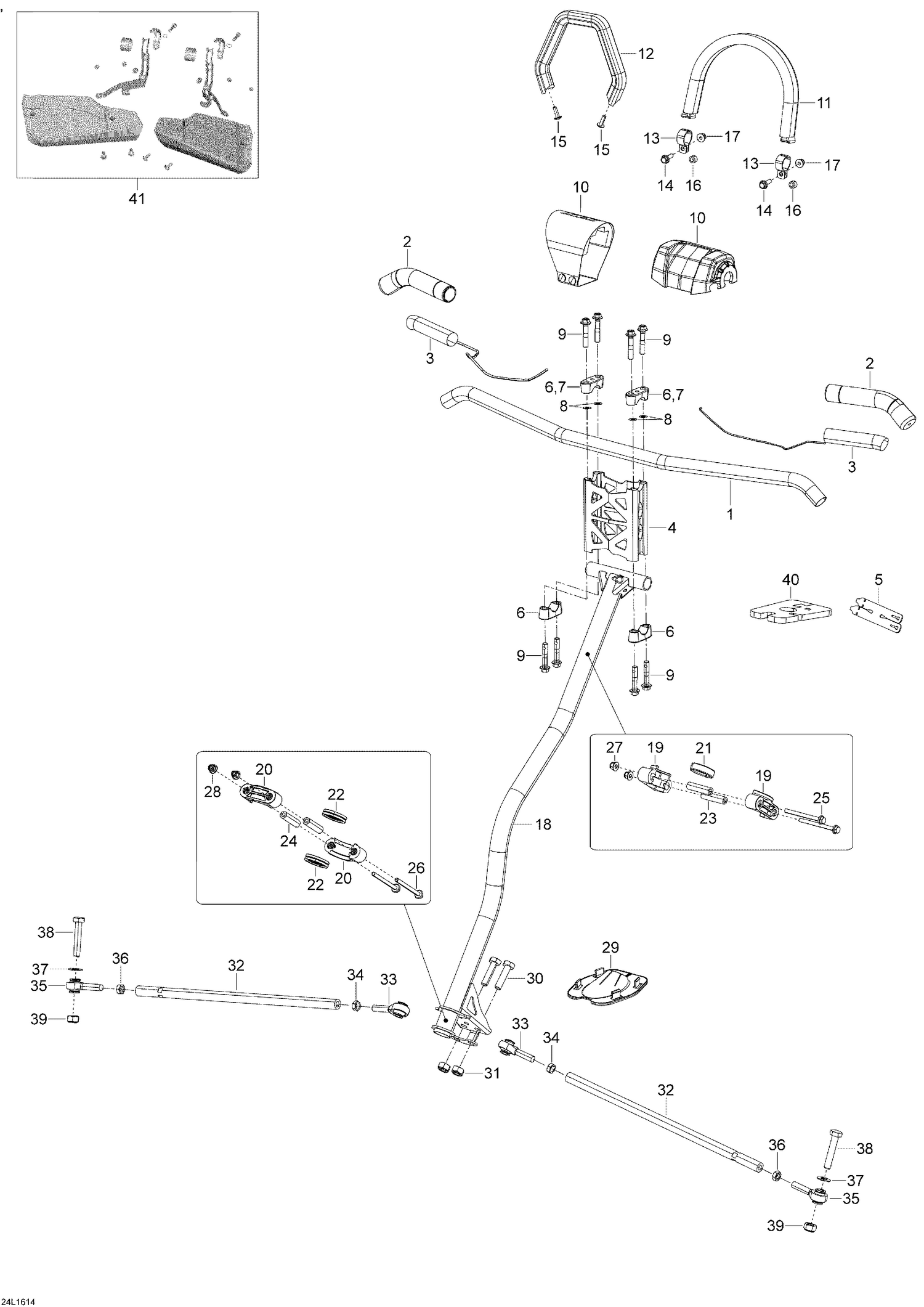

07- Steering System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 506152483 | Grip |
| 3 | 506152428 | Heating Element (25W) |
| 8 | 234081430 | Flat Washer M8 |
| 9 | 250000285 | Hex. Flange Screw M8 x 40 |
| 18 | 506152962 | Steering Column This part replaces 506152839. |
| 19 | 506152508 | Upper Half-Housing |
| 20 | 506152217 | Lower Half-Housing |
| 21 | 506152509 | Upper Vibrat. Gasket |
| 22 | 506152518 | Lower Vibration Ring |
| 23 | 506152297 | Housing Bushing |
| 24 | 506152297 | Housing Bushing |
| 25 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 26 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 27 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 28 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 29 | 506152163 | Stopper Plate |
| 30 | 207004044 | Hex.Cap Screw M10 x 40 |
| 31 | 232500416 | Elastic Stop Nut M10 |
| 32 | 506152498 | Tie Rod |
| 33 | 506152081 | Ball Joint (LH Thread) |
| 34 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 35 | 506152019 | Ball Joint (RH Thread) |
| 36 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 37 | 506152582 | Washer |
| 38 | 207005544 | Hex. Cap Screw M10 x 55 |
| 39 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
| 40 | 506152404 | Cushion |
