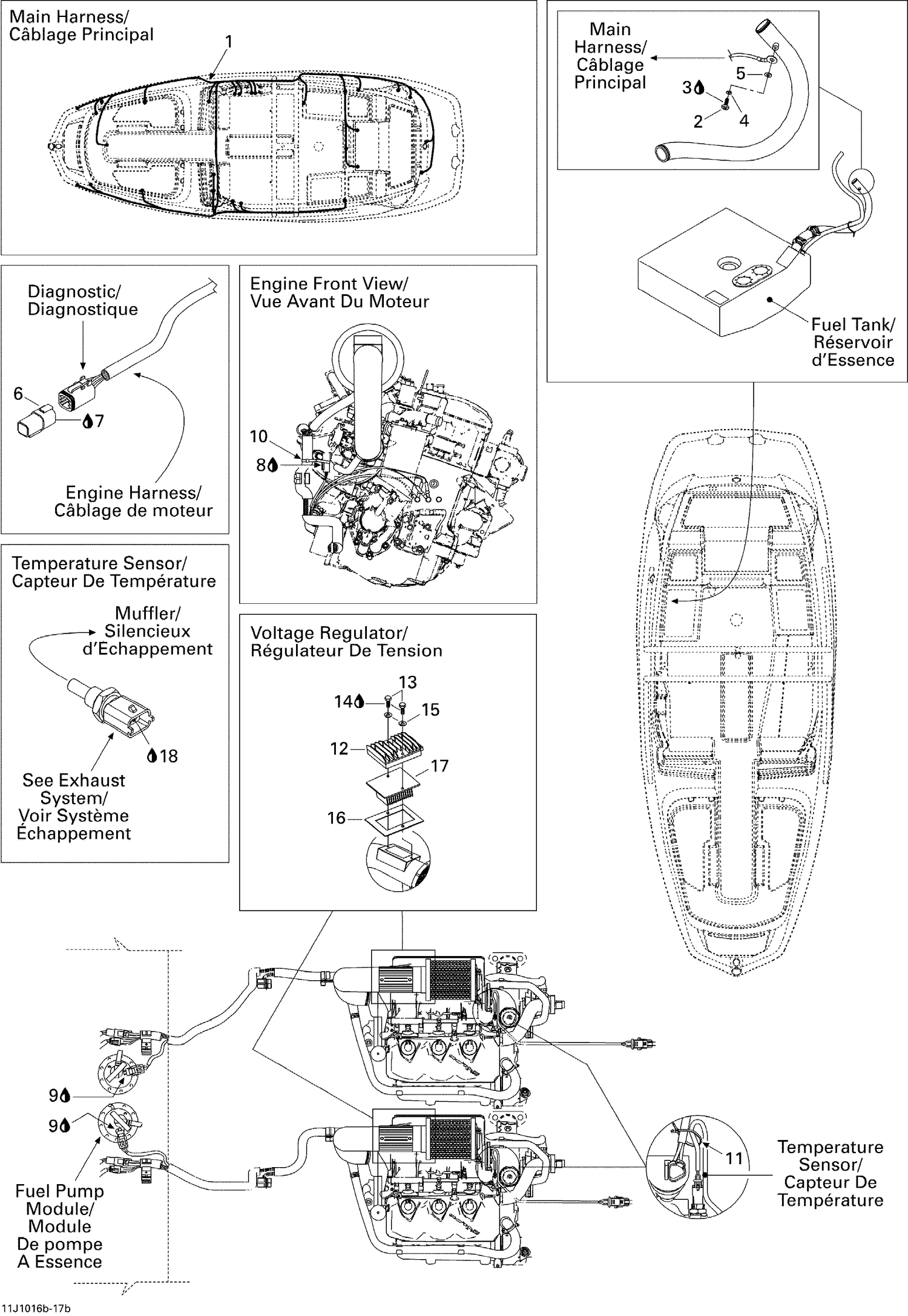

| Ref | Part Number | Description |
|---|
| 1 |
204471409 |
Accessory Harness |
| 2 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 3 |
293800060 |
Loctite 243, 10 ml |
| 4 |
234141601 |
Lock Washer 4 mm |
| 5 |
234041600 |
Flat Washer 4 mm, Stainless |
| 6 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 9 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 10 |
414115200 |
Tie-Rap 180 mm |
| 11 |
293750002 |
Tie Wrap 142 mm |
| 12 |
710001103 |
Voltage Regulator |
| 13 |
204100226 |
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
211200025 |
Lock Washer 1/4” |
| 16 |
204471293 |
SEAL - Call your local BRP dealership |
| 17 |
204471296 |
RECTIFIER HEAT SINK - Call your local BRP dealership |
