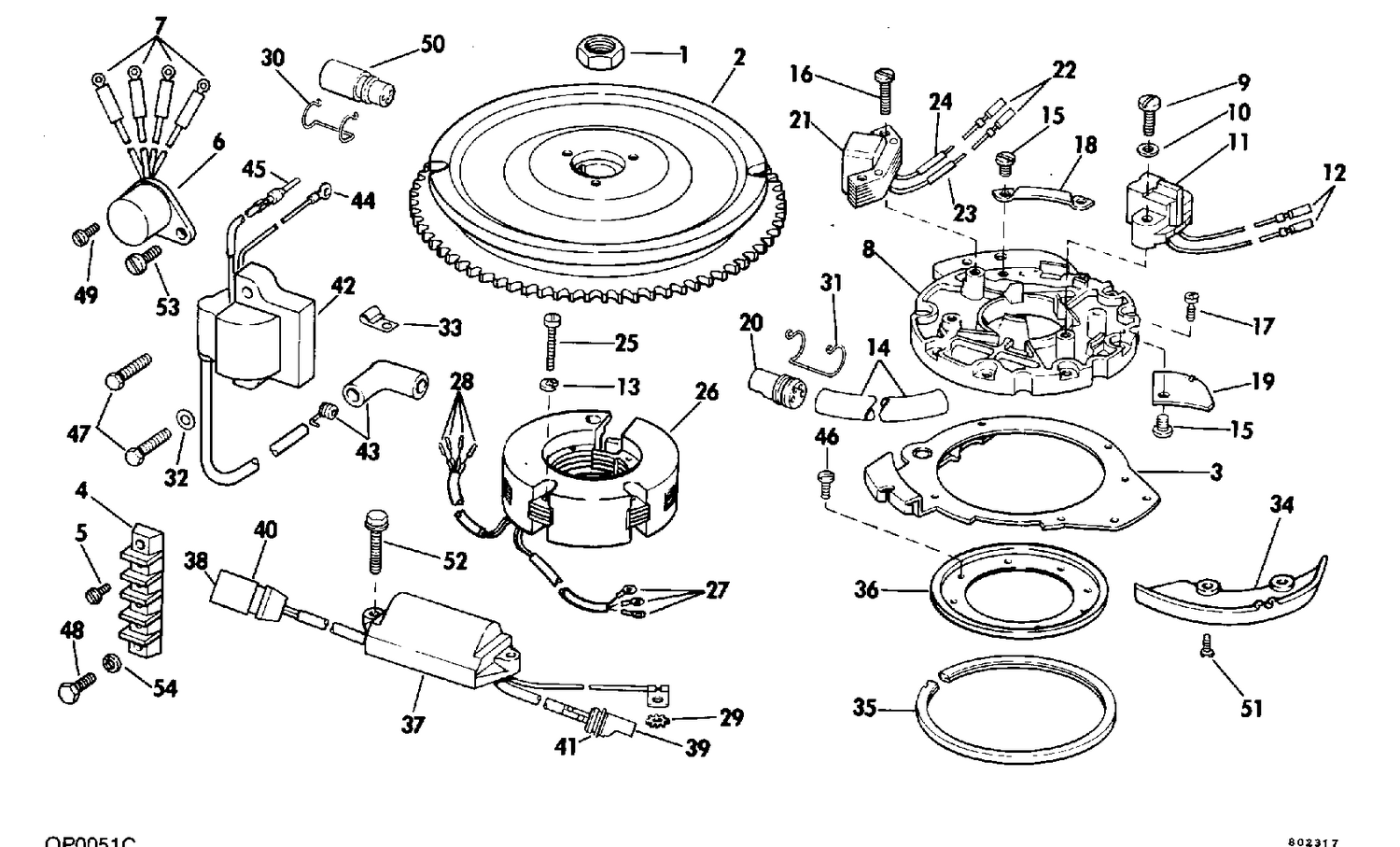

| Ref | Part Number | Description |
|---|
| 3 |
0388261 |
RETAINER & LINK ASSY. |
| 4 |
0582317 |
TERMINAL BLOCK |
| 6 |
0581778 |
REDRESSEUR |
| 11 |
0583387 |
SENSOR ASSEMBLY This part replaces 0582069. |
| 14 |
0511482 |
SLEEVE |
| 17 |
0511460 |
VIS, dispositif de retenue |
| 18 |
0511458 |
COLLIER, fils |
| 19 |
0511459 |
CACHE, fils |
| 21 |
0581670 |
CHARGE COIL This part replaces 0582059. |
| 26 |
0581651 |
STATOR ASSEMBLY |
| 31 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 32 |
0306407 |
LOCCKWASHER,Cover latch |
| 34 |
0326876 |
CAM, Throttle control This part replaces 0324882. |
| 35 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 36 |
0322102 |
PLATE, Support |
| 37 |
0581927 |
POER PACK ASSY |
| 40 |
0511449 |
COMMECTOR, Coil to power pack |
| 42 |
0582330 |
COIL ASSY. |
| 49 |
0314576 |
SCREW |
| 51 |
0331036 |
VIS, attache de palier This part replaces 0320468. |
| 52 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 0582021 |
0582021 |
PLATE ASSEMBLY COMPLETE |
| 0582029 |
0582029 |
CHARGE COIL & PLATE ASSY |
