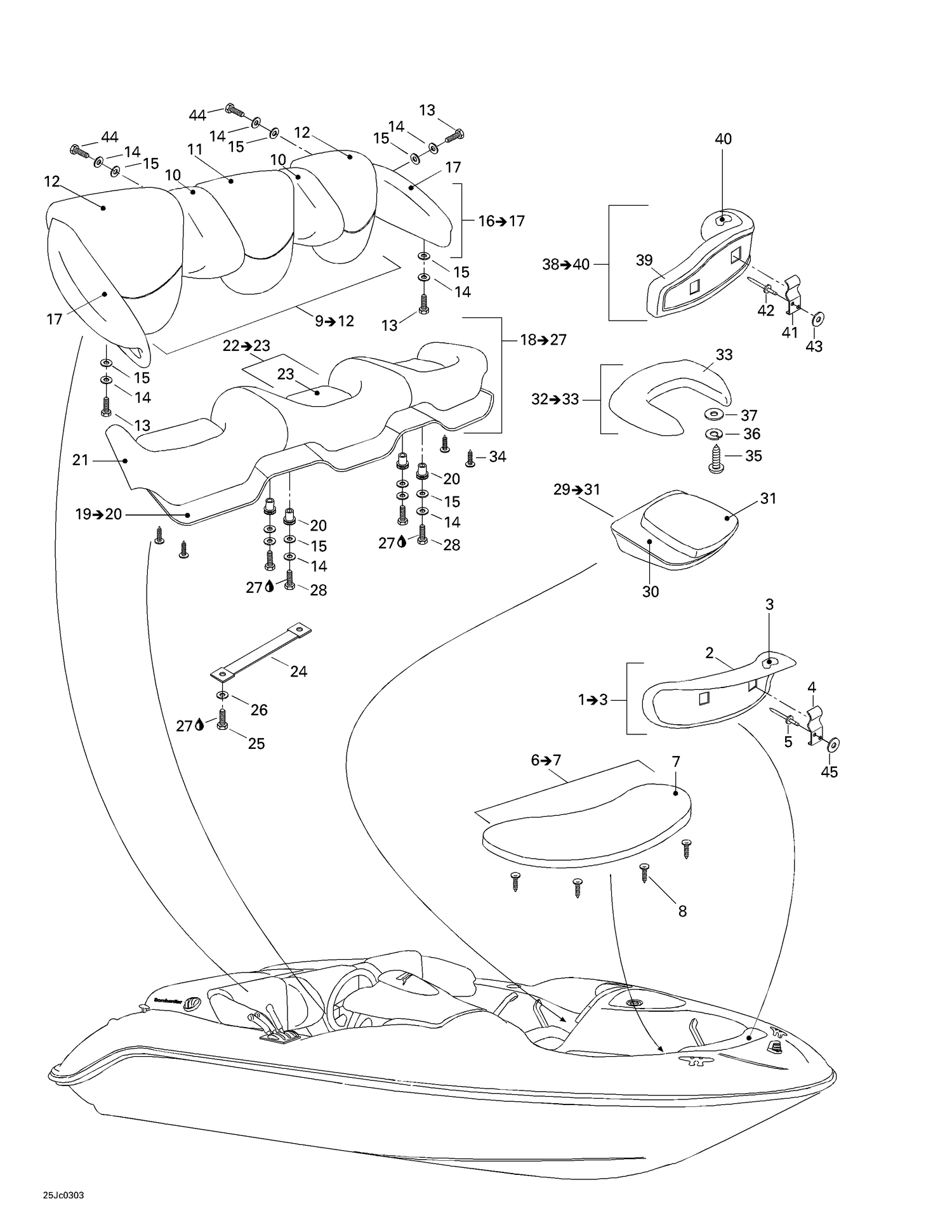

| Ref | Part Number | Description |
|---|
| 2 |
204611716 |
Front Backrest Cover |
| 3 |
Not |
Available As Spare Part - Front Backrest Foam |
| 4 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 5 |
293150043 |
Pop Rivet 3/16" |
| 7 |
204611718 |
Front Seat Cover |
| 8 |
293730006 |
Black, Dart |
| 10 |
204611720 |
Backrest Cover, Bright Yellow |
| 11 |
204611721 |
Backrest Cover (Center) |
| 12 |
204611722 |
Backrest Cover RH (Starboard) |
| 13 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 14 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership This part replaces 204100006. |
| 17 |
204611727 |
Armrest Cover |
| 20 |
204100005 |
Anchor Washer |
| 21 |
204611729 |
Rear Seat Cover, Bright Yellow |
| 23 |
Not |
Available As Spare Part - Rear Seat Pillow Cover |
| 24 |
204611732 |
Rear Seat Strap, Bright Yellow |
| 25 |
207161660 |
Hex. Screw M6 X 16 |
| 26 |
234062600 |
Flat Washer M6, Stainless |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
207364560 |
Hex. Screw M6 x 45, Scotch Grip |
| 30 |
204610557 |
Keeper Seat Base Cover |
| 31 |
204611734 |
Keeper Seat Cover |
| 33 |
204611736 |
Keeper Seat Ring Cover |
| 34 |
293730021 |
Dart |
| 35 |
209663860 |
Tapping Phillips Screw 6.3 X 38 |
| 36 |
234161601 |
Lock Washer Helical M6 |
| 37 |
234061600 |
Stainless Flat Washer M6 |
| 39 |
204611737 |
Keeper Seat Backrest Cover |
| 40 |
269000339 |
Keeper Seat Backrest Foam |
| 41 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 42 |
293150043 |
Pop Rivet 3/16" |
| 43 |
234061600 |
Stainless Flat Washer M6 |
| 44 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 45 |
234061600 |
Stainless Flat Washer M6 |
| 204611723 |
Backrest |
Cover LH (Port Side) 204611723 |
| 204611724 |
Armrest |
Ass'y, Port Side 204611724 |
