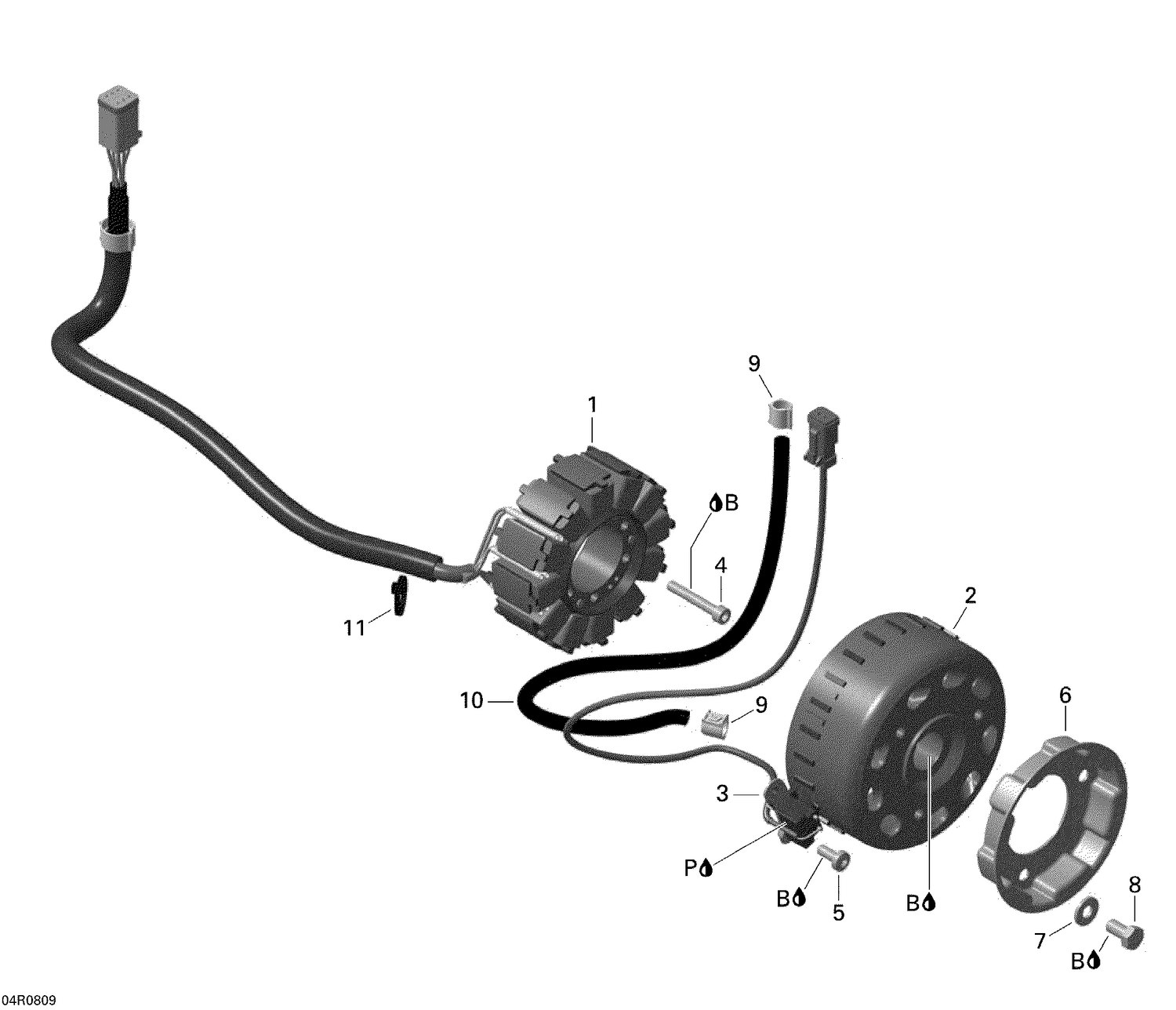

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| 1 |
420665435 |
Stator Plate This part replaces 420665431. |
| 2 |
420665442 |
Flywheel This part replaces 420665441. |
| 3 |
410922969 |
Pick-Up Ass'y |
| 4 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 5 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 6 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 7 |
420827405 |
Flat Washer |
| 8 |
207181644 |
Hex. Screw M8 x 16 |
| 9 |
420960894 |
CLIP - Call your local BRP dealership |
| 10 |
Not |
Available As Spare Part - Tube |
| 11 |
420866714 |
Tie Rap |
