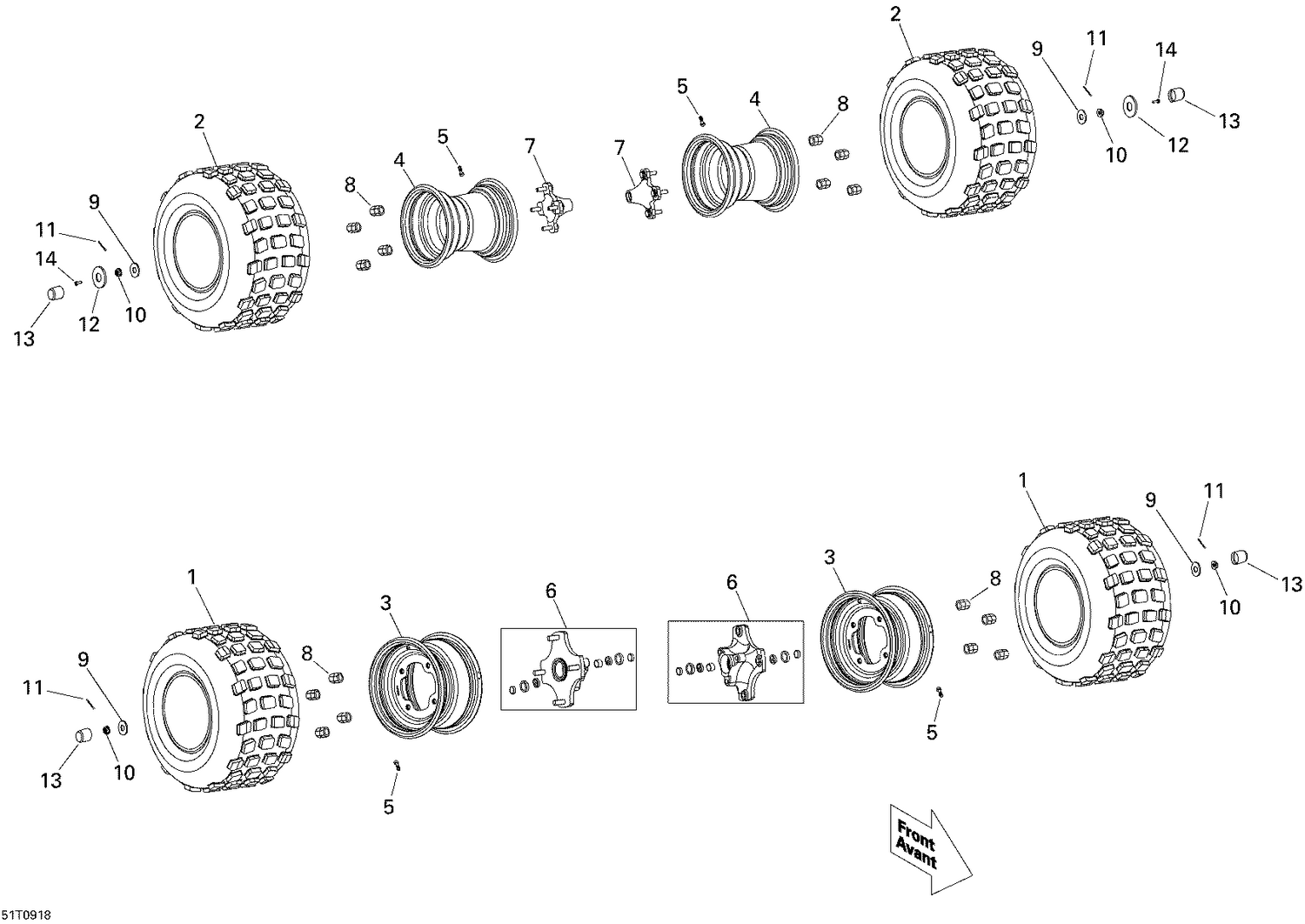

07- Wheels And Tires
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V42711DGF01HLL | Front Tire This part replaces V42711DGF00H. |
| 2 | V42712DGF01HLL | Rear Tire This part replaces V42712DGF00H. |
| 3 | V42701DGF01HLL | Front Rim This part replaces V42701DGF00H. |
| 4 | V42702DGF02HLL | Rear Rim This part replaces V42702DGF01H. |
| 5 | V42751MAA000LL | Rim Valve This part replaces V42751MAA000. |
| 6 | V44650CEK010LL | Front Hub This part replaces V45110DGF00H. |
| 7 | V44630CEK010SLLL | Rear Wheel Axle Fixed Bracket This part replaces V44630CEK000. |
| 8 | V9030210017LL | Auminium Nut M10 This part replaces V9030210017. |
| 9 | V55002MAA010LL | Washer This part replaces V55002MAA000. |
| 10 | V9405214000LL | Castle Nut M14 This part replaces V9405214000. |
| 11 | V9420130032LL | Cotter Pin This part replaces V9420130032. |
| 12 | V55002MEM010ZCLL | Rear Wheel Washer This part replaces V55002MEM010ZC. |
| 13 | V53456CEK030LL | Rubber Cap This part replaces V53456CEK000. |
