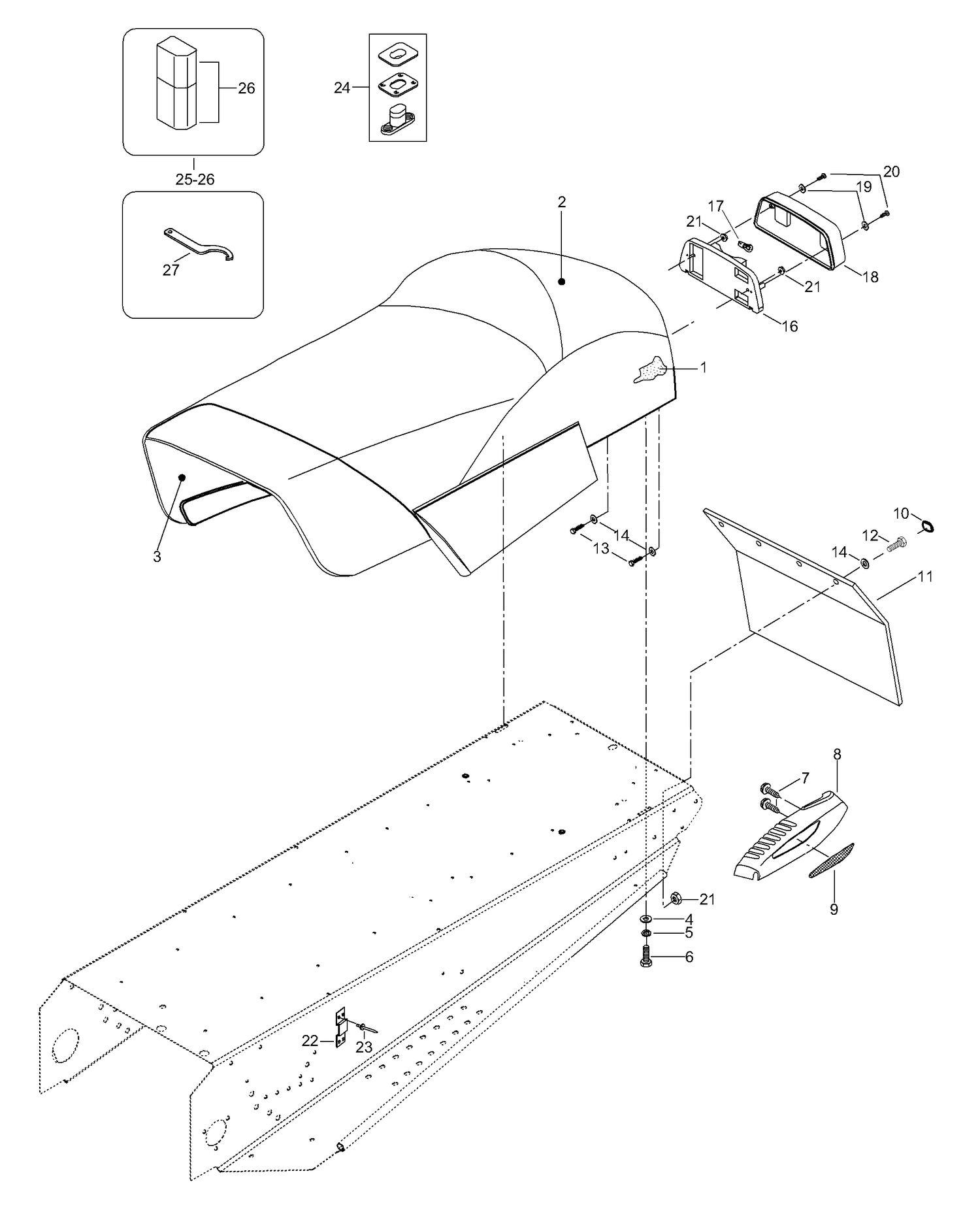

| Ref | Part Number | Description |
|---|
| 1 |
5243866 |
Seat foam |
| 2 |
605148612 |
Seat cover |
| 3 |
5146815 |
Seat bottom |
| 4 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 5 |
20014 |
Lock washer |
| 6 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 7 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 8 |
861777700 |
RH MOULDING KIT - Call your local BRP dealership |
| 8 |
861777800 |
L.H. moulding |
| 9 |
516000241 |
R.H. rear reflector |
| 9 |
516000242 |
L.H. rear reflector |
| 10 |
415073300 |
Cap |
| 11 |
5246131 |
Snow guard |
| 12 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 13 |
40002 |
Screw M6 x 40 |
| 14 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 16 |
414979400 |
Taillamp housing |
| 17 |
520000758 |
Bulb This part replaces 410504000. |
| 18 |
414513700 |
Lens |
| 19 |
414516400 |
Washer - Call your local BRP dealership |
| 20 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
5447908 |
Seat fastening plate |
| 23 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 24 |
5444390 |
Seat Buckle |
| 26 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
