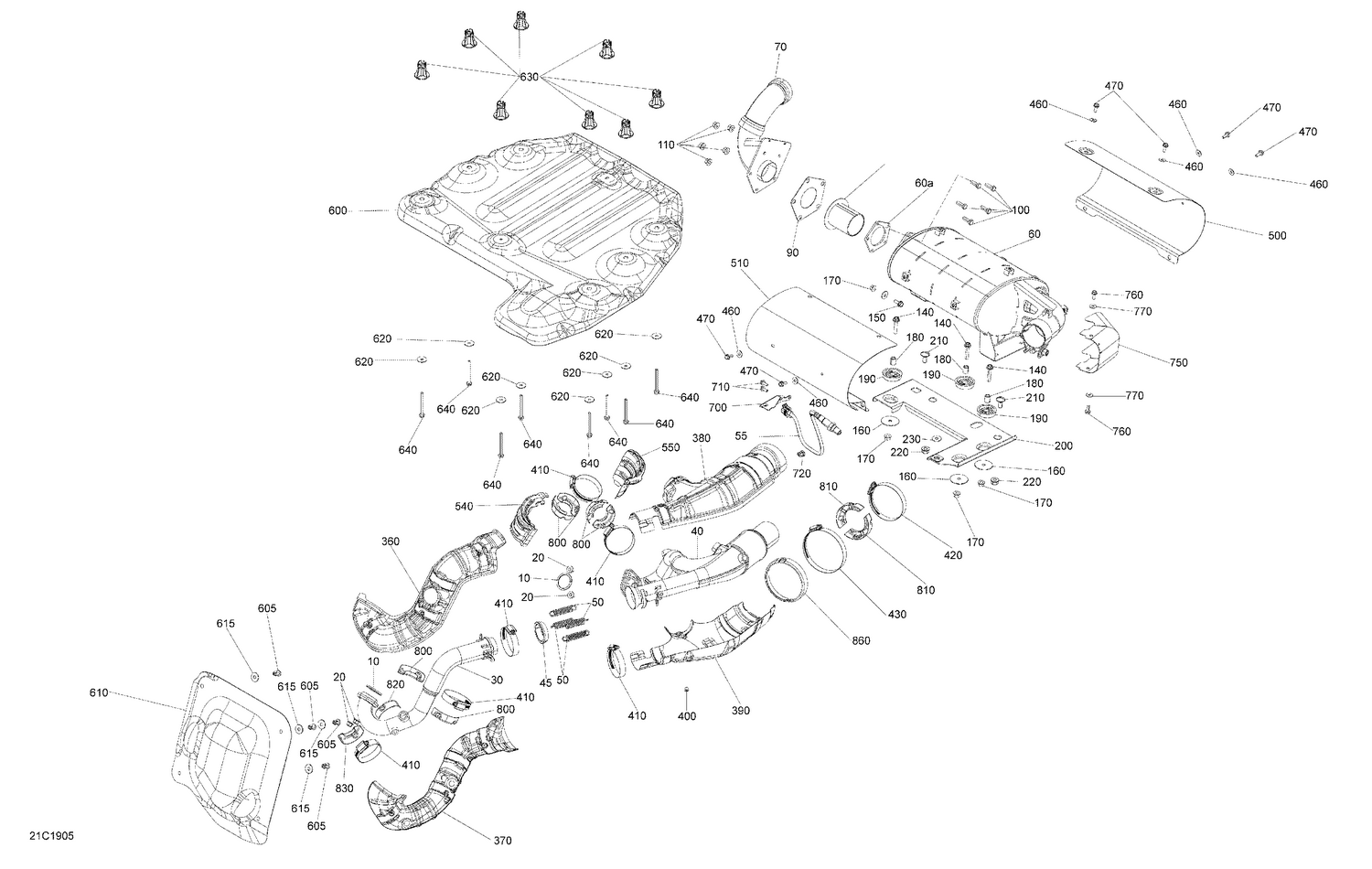

01- Exhaust
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 30 | 707601913 | Front Exhaust Pipe |
| 40 | 707601825 | Rear Exhaust Pipe |
| 45 | 707601814 | Exhaust Gasket |
| 50 | 707601834 | Spring |
| 55 | 707600872 | Oxygen Sensor |
| 60a | 293650228 | Exhaust Pipe Clamp |
| 70 | 707602520 | Tail Pipe |
| 80 | 707601803 | Spark Arrester |
| 90 | 707602205 | Gasket |
| 100 | 207182546 | Hex. Screw Cap DIN.933 |
| 110 | 233081416 | Hex. Flange Nut M8 |
| 140 | 207684044 | Hex. Flange Screw M8 X 40 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 234082410 | Flat Washer 8 mm |
| 170 | 233081416 | Hex. Flange Nut M8 |
| 180 | 707601969 | Spacer |
| 190 | 707602102 | Rubber Mount |
| 200 | 707601588 | Muffler Support |
| 210 | 207782044 | Carriage Bolt, M8 X 20 |
| 220 | 233081416 | Hex. Flange Nut M8 |
| 230 | 234082410 | Flat Washer 8 mm |
| 360 | 707601923 | Heat Shield, Front |
| 370 | 707602403 | Front Heat Shield |
| 380 | 707601925 | Heat Shield |
| 390 | 707601926 | Heat Shield |
| 400 | 293150071 | Pop Rivet 1/8 X |
| 410 | 293650258 | Tridon Gear Clamp |
| 420 | 293650250 | Tridon Gear Clamp |
| 430 | 293650261 | Tridon Gear Clamp |
| 460 | 234062410 | Flat Washer 6 mm |
| 470 | 250000906 | Hex Flange Screw M6 X 16 |
| 500 | 707601521 | Heat Shield |
| 510 | 707602041 | Heat Shield |
| 540 | 707601927 | Heat Shield, Rear |
| 550 | 707601928 | Heat Shield, Rear |
| 600 | 707603178 | Heat Shield This part replaces 707602042. |
| 605 | 293150230 | Tuflok Plastic Rivet |
| 610 | 707602043 | Heat Shield |
| 615 | 234082410 | Flat Washer 8 mm |
| 620 | 224060251 | Washer |
| 630 | 706002976 | Heatshield Spacer |
| 640 | 207566544 | Hex. Flange Screw M6x65 |
| 720 | 710005529 | Dart Mount |
| 750 | 707602532 | Heat Shield |
| 760 | 250000906 | Hex Flange Screw M6 X 16 |
| 770 | 234062410 | Flat Washer 6 mm |
| 800 | 707602026 | Exhaust Pipe Spacer |
| 810 | 707602027 | Exhaust Pipe Spacer |
| 820 | 707601948 | Exhaust Pipe Spacer |
| 830 | 707602016 | Exhaust Pipe Spacer |
