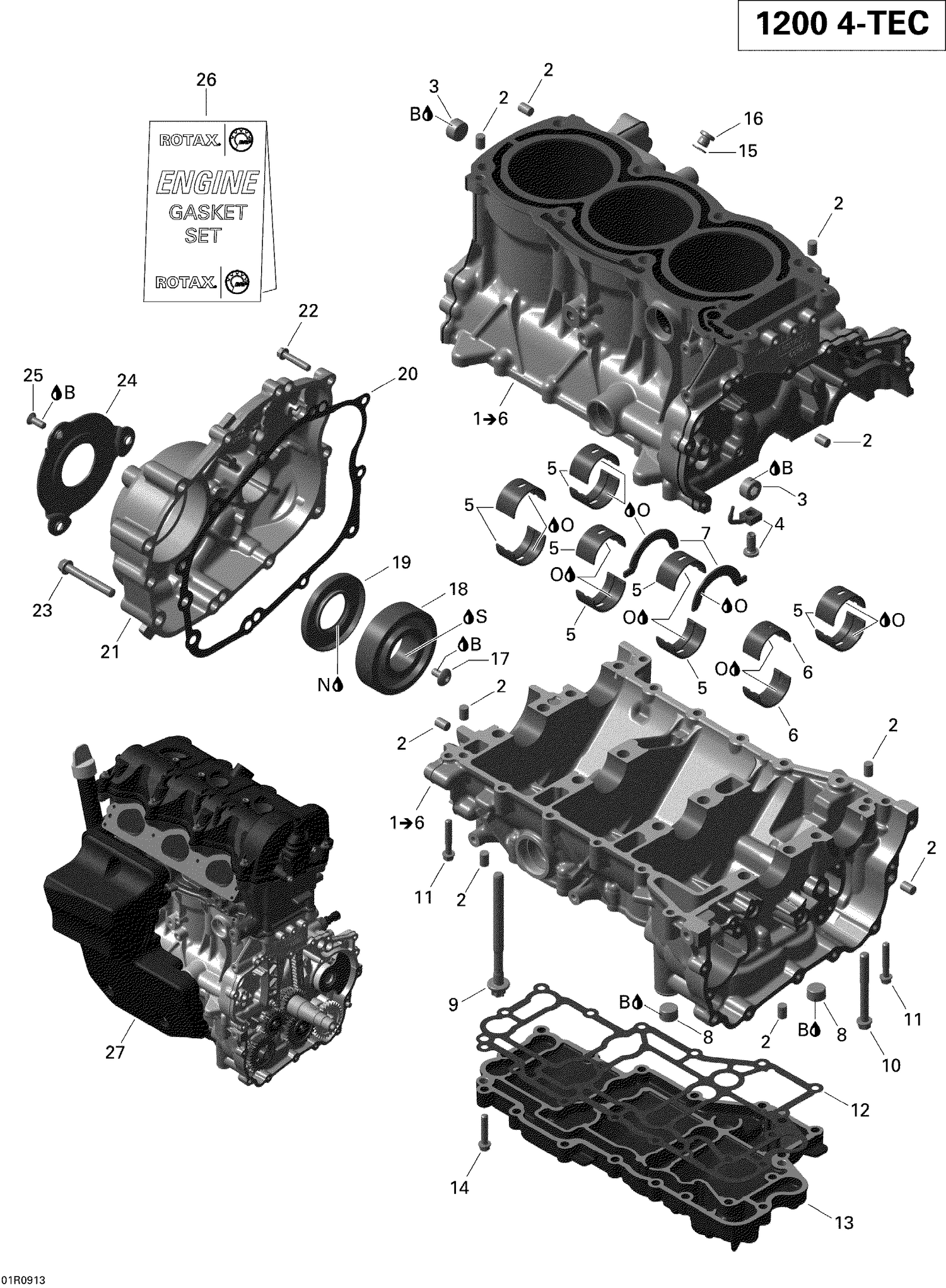

01- Engine Block
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| N | 413707000 | Dow Corning 111, 150 g |
| O | Not | Available As Spare Part - Engine Oil |
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420240170 | Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 4 | 420956826 | OIL SPRAY NOZZLE - Call your local BRP dealership This part replaces 420956774. |
| 5 | 420933852 | Plain Bearing |
| 6 | 420933862 | Plain Bearing |
| 7 | 420933140 | Ring Half |
| 8 | 420240178 | SCREW PLUG M16 X 1.5 - Call your local BRP dealership |
| 9 | 420940945 | Torx Flange Screw M9 X 113 |
| 10 | 420840211 | Torx Flange Screw M8 X 70 |
| 11 | 420641258 | Torx Flange Screw M6 X 35 |
| 12 | 420430770 | Gasket |
| 13 | 420611822 | OIL SUMP COVER - Call your local BRP dealership |
| 14 | 420440647 | Torx Flange Screw M6 X 30 |
| 15 | 420230150 | Oil Seal |
| 16 | 420641733 | Plug Screw M10 X 1 |
| 17 | 420241537 | Hex Flat Head Screw M6 X 13 T30 This part replaces 420241535. |
| 18 | 420432125 | Ball Bearing |
| 19 | 420431402 | Oil Seal This part replaces 420431400. |
| 20 | 420430760 | Gasket |
| 21 | 420611845 | PTO Cover |
| 22 | 420440647 | Torx Flange Screw M6 X 30 |
| 23 | 420641213 | Torx Flange Screw M8 X 55 |
| 24 | 420910240 | Oil Seal Cover |
| 25 | 420440906 | Countersunk Screw M6 X 16 |
| 26 | 420893054 | Engine Gasket Kit This part replaces 420893050. |
| 27 | 420120303 | Long Block 1203 This part replaces 420120301. |
