Parts Catalog

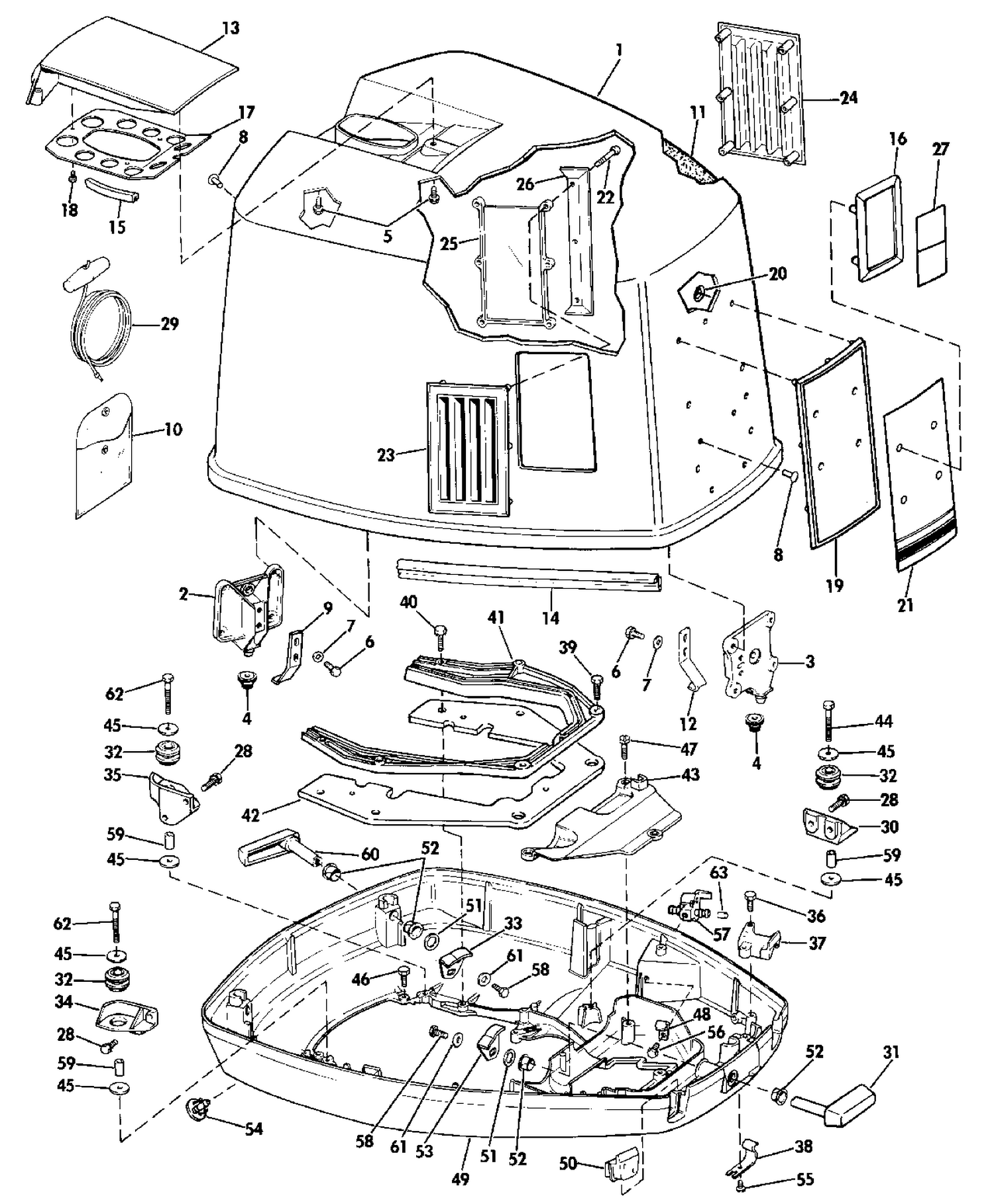

ENGINE COVER - JOHNSON

Parts (53)

Ref	Part Number	Description
1	0394406	ENGINE COVER ASSY., 2.6
1	0394964	ENGINE COVER ASSY., 150
2	0394976	LOCATING BRACKET, Rear This part replaces 0389972.
3	0389971	LOCATING BARCKET, Front
7	0306407	LOCCKWASHER,Cover latch
10	0314494	BAG EMERGENCY STARTER ROPE
11	0321256	SOUND BLANKET, Top
12	0323175	HOOK , Motor Cover, Front
14	0328686	SEAL, Engine cover This part replaces 0326508.
15	SEAL,	Baffle to handle
16	0329729	APPLIQUE, Outer
17	0206520	AIR INLET BAFFLE
19	0329730	APPLIQUE, Front
21	0329724	PLATE, Applique front
23	0329736	LOUVER, Engine cover, stbd
24	0329735	LOUBER, Engine cover, port
25	0329737	BAFFLE, 175STL
26	0329866	BRACKET, Louver mtg
27	0329153	PLATE, Outer, 150
27	0329726	PLATE, Outer, 2.6
28	0328695	CLAMP, Engine cable
29	0378347	CORDE DE LANCEUR
30	0315111	SUPPORT, Front
31	0383641	LATCH HANDEL ASSY., Front
32	0316354	ENGINE COVER SUPPORT GROMMET
33	0323169	HOOK, Lower rear port
34	0315113	SUPORT, Stbd, rear
35	0315112	SUPPORT, Port rear
36	0307151	SCREW
37	0318849	CLAMP, Instrument cable
38	0333739	RETAINER, Fuel hose to cover This part replaces 0329610.
39	0328695	CLAMP, Engine cable
40	0307151	SCREW
41	0327668	FRAME ASSY
42	0911102	SEAL, Frame
43	0328358	COVER ASSY. Air entrance
44	0303398	VIS, support
46	0328695	CLAMP, Engine cable
47	0328695	CLAMP, Engine cable
49	0434288	ENGINE COVER, Lower This part replaces 0394373.
50	0320834	GROMMET
53	0323170	HOOK Front and stbd., rear
54	0321885	NIPPLE
55	0310539	SCREW, Clamp choke solenoid
56	0908159	SCREW, Bearing clamp This part replaces 0328728.
57	0393941	FUEL CONNECTOR
57	0394309	FUEL CONNECTOR
58	0312241	SCREW, Trim/Tilt relay bracket
59	0302406	SLEEVE
60	0383685	LATCH HANDEL ASSY., Rear
62	0303398	VIS, support
0394414	0394414	DECAL SET
0394961	0394961	OWNER'S MANUAL, 150
