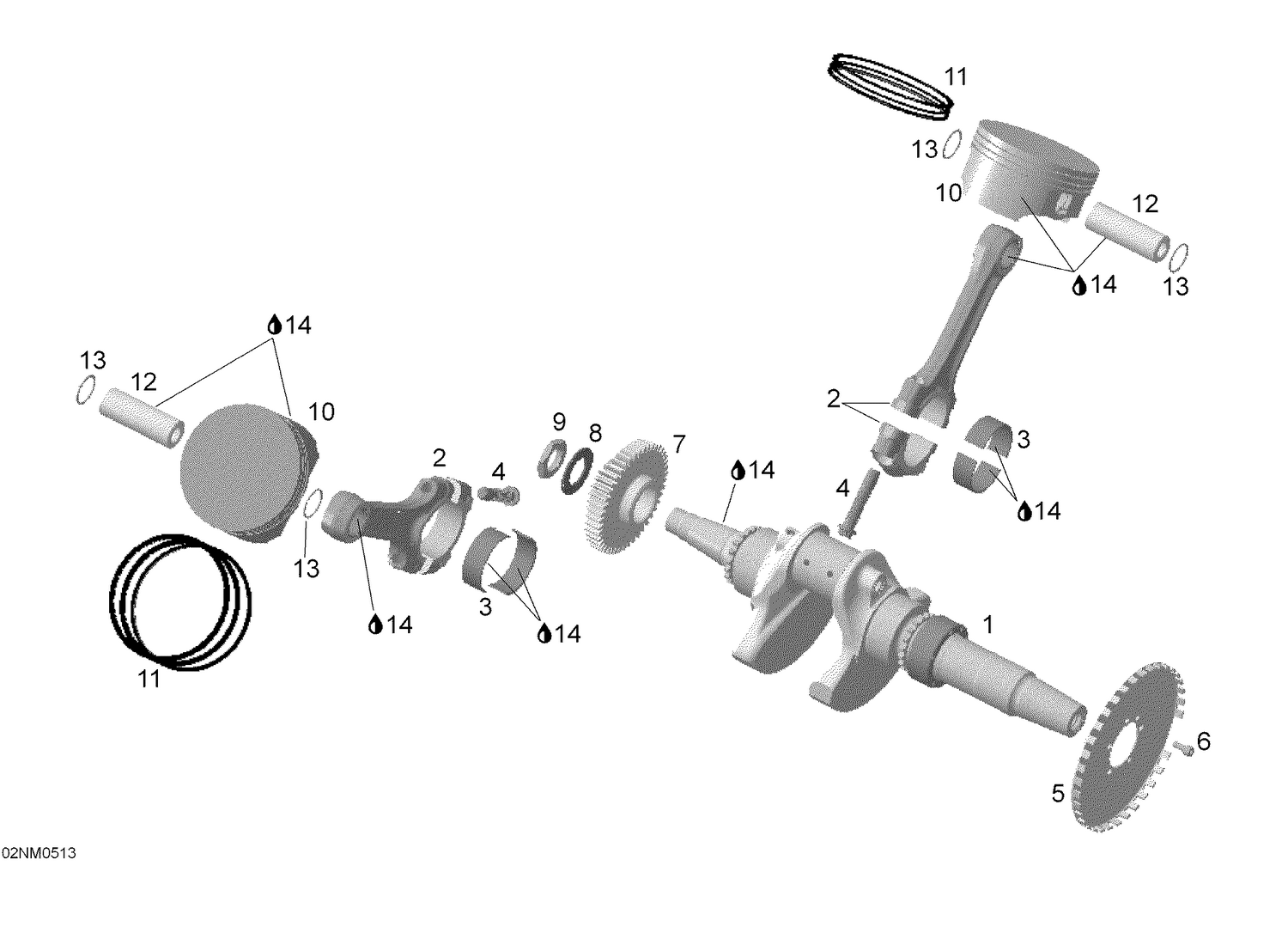

| Ref | Part Number | Description |
|---|
| 1 |
420889443 |
Crankshaft |
| 2 |
420917546 |
CONNECTING ROD ASS?Y - Call your local BRP dealership |
| 3 |
420933523 |
Bushing This part replaces 420933520. |
| 4 |
420640991 |
Connecting Rod Screw This part replaces 420640990. |
| 5 |
420966850 |
TRIGGER WHEEL - Call your local BRP dealership |
| 6 |
420640541 |
SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership |
| 7 |
420834446 |
Drive gear (45 teeth) |
| 8 |
420245860 |
Spring washer |
| 9 |
420242879 |
Ecrou*Nut This part replaces 420242871. |
| 10 |
420296565 |
Piston assy 99.96 mm |
| 11 |
420890380 |
Piston Set Ring This part replaces 420888864. |
| 12 |
420216250 |
Piston pin |
| 13 |
420845580 |
Monohook circlip |
