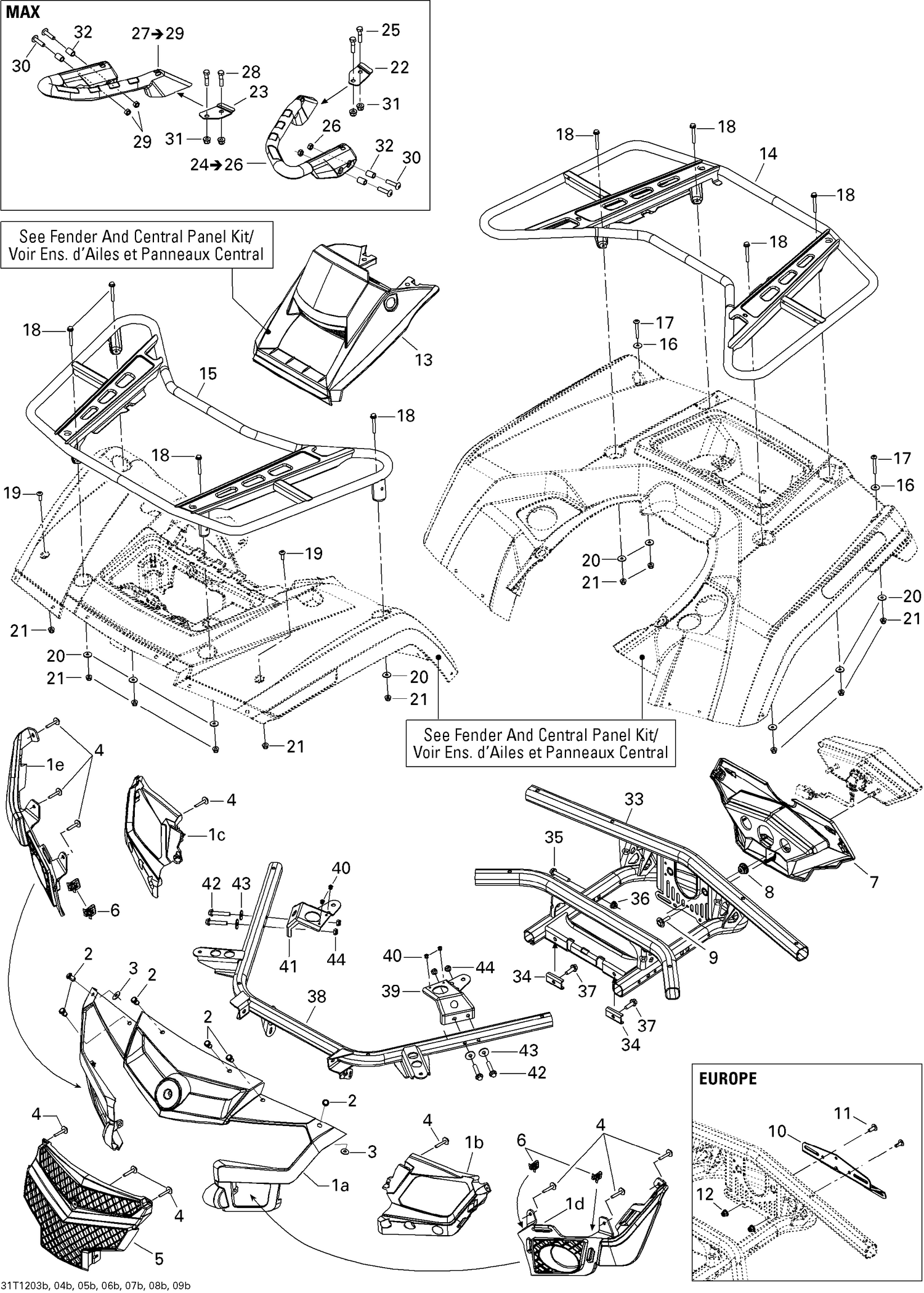

09- Body And Accessories 2
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1b | 705002825 | LH HEAD LAMP SUPPORT - Call your local BRP dealership |
| 1c | 705002826 | RH Head Lamp Support |
| 2 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 3 | 506151252 | Washer |
| 4 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 5 | 705002779 | UPPER GRILL - Call your local BRP dealership |
| 6 | 517302785 | Edge Clip |
| 7 | 705003840 | Rear Facia |
| 8 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 9 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 13 | 705003490 | Dashboard |
| 14 | 705002617 | Rear Luggage Rack |
| 15 | 705002616 | Front Luggage Rack |
| 16 | 250200040 | Flat Washer |
| 17 | 250000749 | Torx Truss Screw M6 X 50 This part replaces 250000239. |
| 18 | 207065544 | Hex. Screw M6 X 55 |
| 19 | 250000284 | Torx Screw M6 x 25 |
| 20 | 224061201 | Flat Washer This part replaces 250200072. |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 705003656 | Rear Support |
| 34 | 705003647 | U Reinforcement |
| 35 | 207685044 | Hex. Flange Screw M8 X 50 |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 38 | 705003655 | FRONT SUPPORT - Call your local BRP dealership |
| 39 | 705002995 | LH ANCHOR PLATE - Call your local BRP dealership |
| 40 | 390402300 | Pop Rivet 3/16" |
| 41 | 705002997 | RH Anchor Plate |
| 42 | 207684544 | Hex. Flange Screw M8 X 45 |
| 43 | 234082410 | Flat Washer 8 mm |
