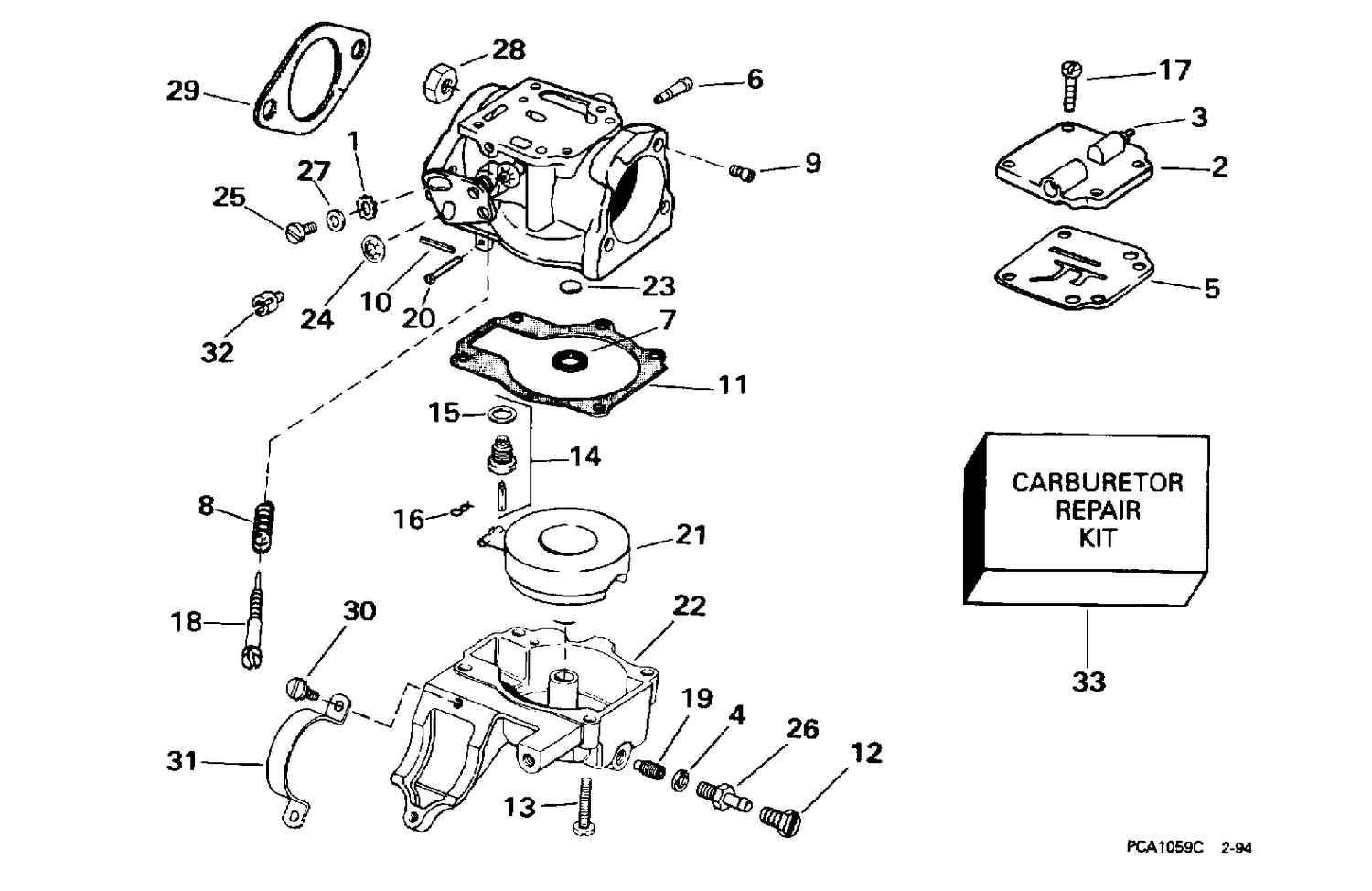

CARBURETOR
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 16 | 0336842 | CLIP, SPRING |
| 22 | 0439383 | FLOAT CHAMBER This part replaces 0393131. |
| 28 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 29 | 0325092 | GASKET |
| 30 | 0329594 | SCREW, Cam follower |
| 31 | 0328907 | COLLIER, amorçage vers support |
| 32 | 0313329 | LOCKWASHER, Carburetor link |
| 0436718 | 0436718 | CARB. ASSY. |
