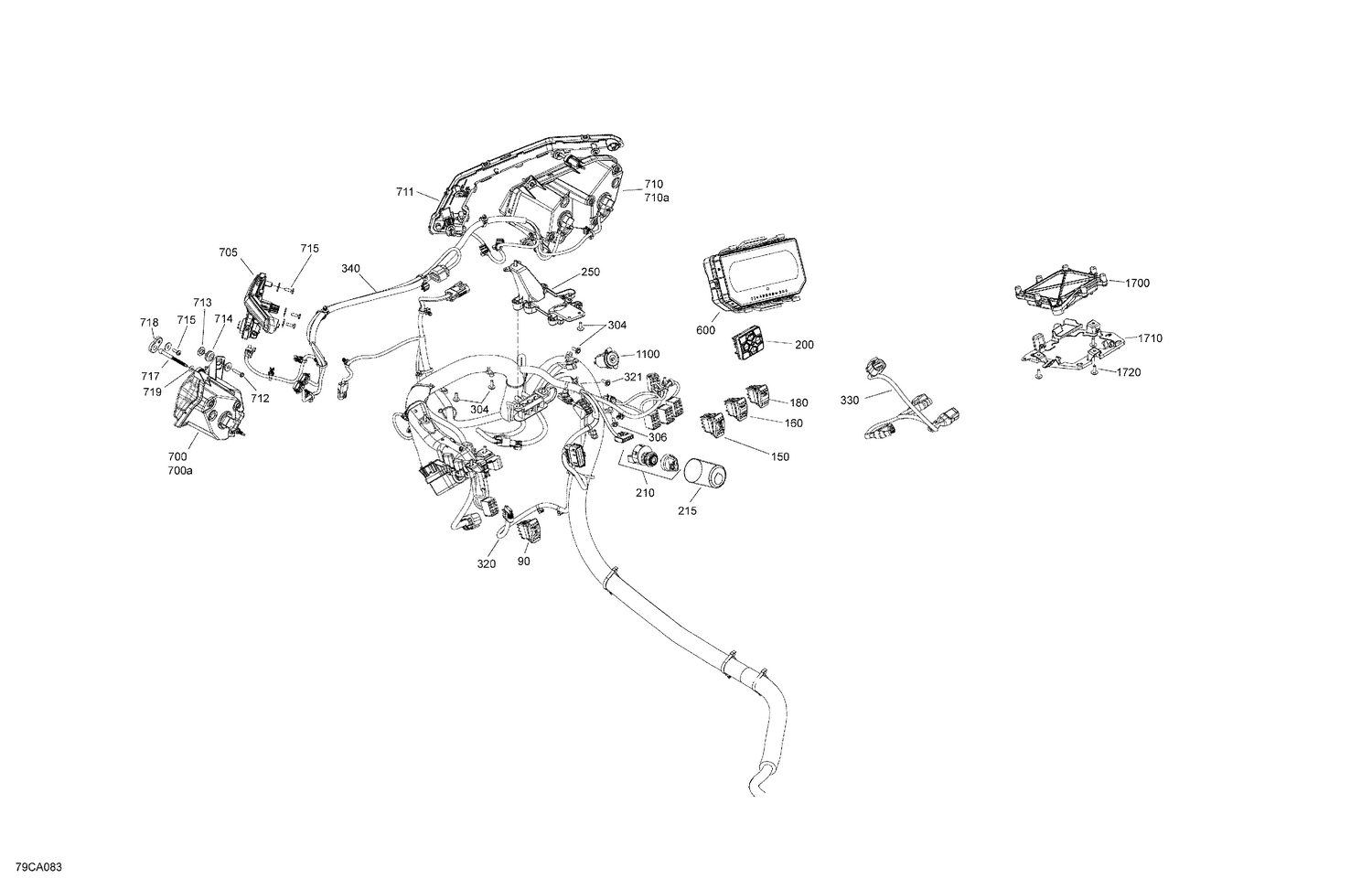

08- Electric - Front System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 90 | 710004492 | Light Switch |
| 150 | 710006040 | Differential Switch |
| 160 | 710006559 | Differential Mode Switch |
| 180 | 710007173 | Plug Carling |
| 200 | 710006650 | Multifonction Switch |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 250 | 710005672 | Housing Support |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 330 | 710006807 | Front Differential Wiring Harness |
| 600 | 710007409 | Multifunction Gauge MID |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 710004994 | LH Signature Beam |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 710004995 | RH Signature Beam |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet |
| 715 | 250000959 | Screw PT Type K-50 X 16 |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1700 | 710008871 | Differential Module This part replaces 710008127. |
| 1710 | 710006104 | FDM Support |
