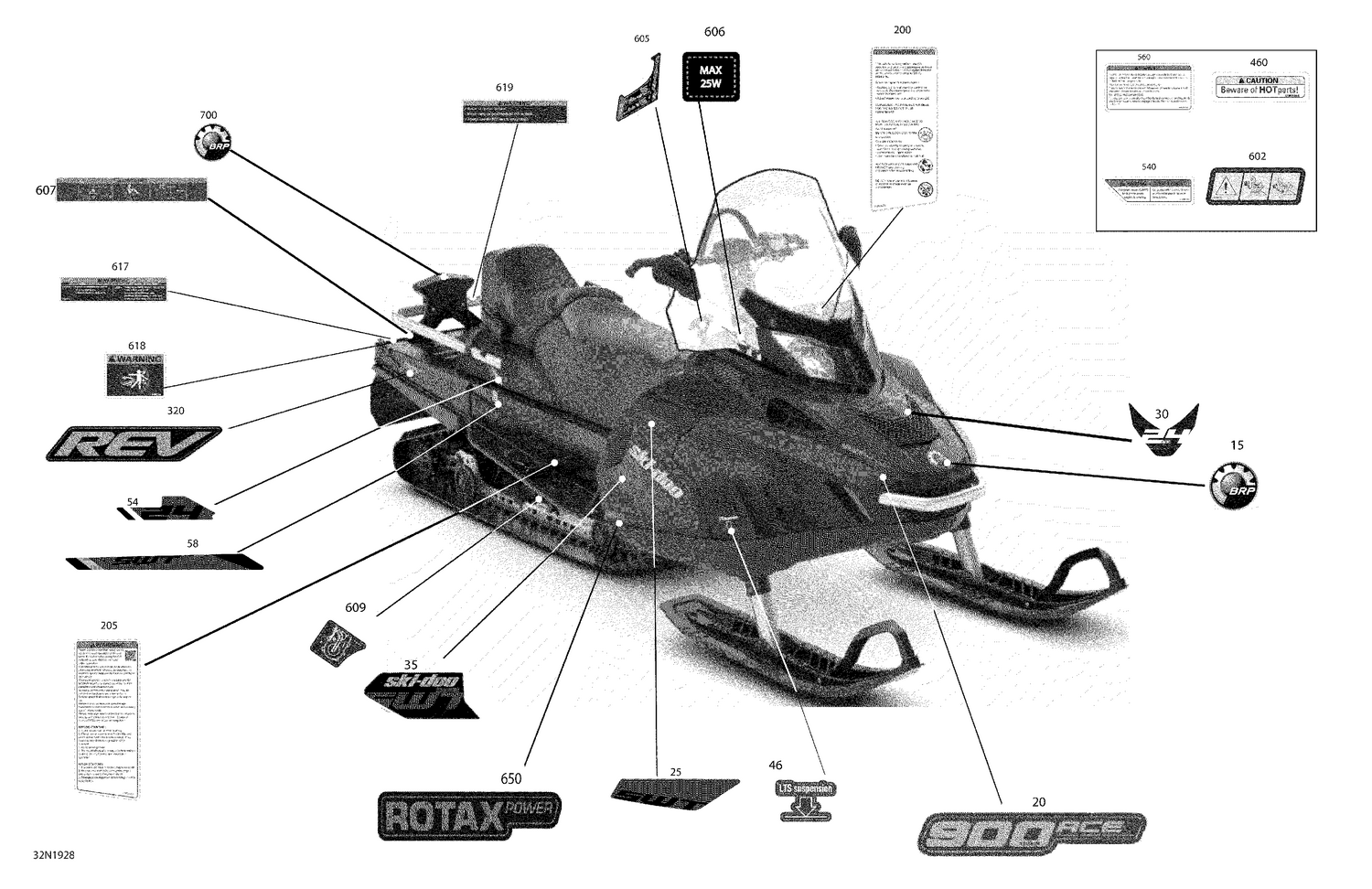

09- Decals - 900 ACE - Package SWT
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 20 | 516006454 | Hood Decal "900 Ace" |
| 25 | 516009901 | Access Panel Decal "SWT" This part replaces 516008778. |
| 30 | 516009116 | Front Hood Decal "Skandic SWT" |
| 35 | 516009120 | Side Panel Decal "Ski-Doo SkandicSWT" |
| 46 | 516007160 | Decal " LTS Suspension " |
| 54 | 516008781 | LH/RH Decal, Storage Box " 24 " |
| 58 | 516009904 | LH/RH Frame Decal "SWT" This part replaces 516008782. |
| 200 | 516004652 | Warning Decal |
| 205 | 516009224 | Warning Decal |
| 320 | 516008835 | Decal " Rev " |
| 460 | 516006903 | Hot Parts Decal |
| 540 | 516005683 | Security label, drive pulley cover |
| 560 | 516005682 | DECAL WARNING - Call your local BRP dealership |
| 602 | 516005111 | Instruction Decal, Back Seat Locking |
| 605 | 516004305 | Instruction Label, Transmission |
| 617 | 516004960 | Rear Security Decal, English |
| 618 | 516007583 | Rotating Track Warning Decal |
| 619 | 516004961 | Security Decal |
| 650 | 516008760 | Decal ROTAX POWER |
