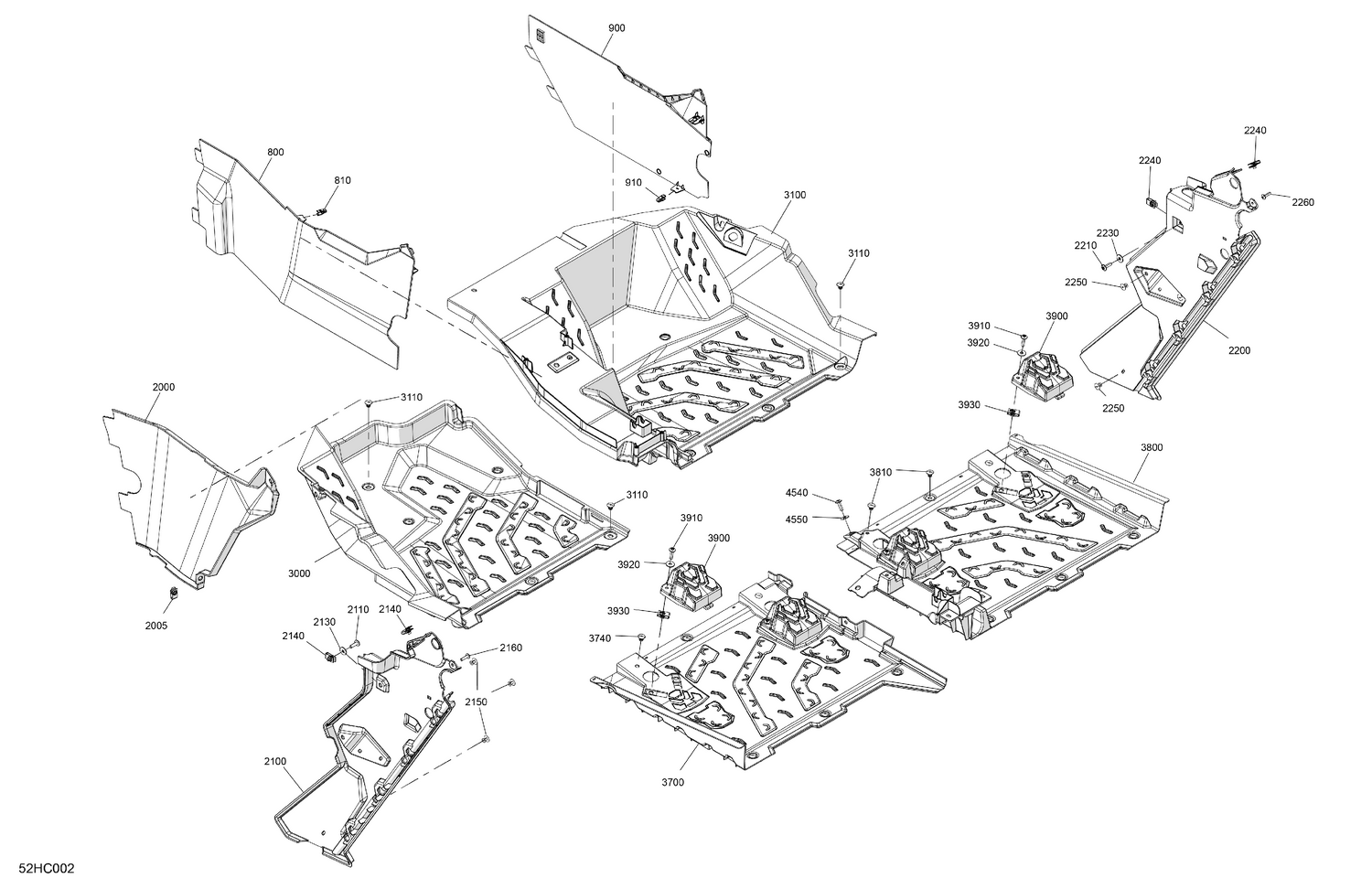

07- Cab Interior - Floor
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 707901087 | LH Console Panel |
| 810 | 705010721 | Clip |
| 900 | 707901088 | RH Console Panel |
| 910 | 705010721 | Clip |
| 2000 | 707900477 | Side Panel Cover |
| 2005 | 250100198 | Panel Nut M6 X 1.0 |
| 2100 | 707900804 | LH Central Cab Panel |
| 2110 | 250000722 | Torx Screw M6 X 20 |
| 2130 | 234062670 | Stainless Steel Flat Washer |
| 2140 | 250100198 | Panel Nut M6 X 1.0 |
| 2150 | 293150103 | Pop Rivet 3/16" |
| 2160 | 250000722 | Torx Screw M6 X 20 |
| 2200 | 707900805 | RH Central Cab Panel |
| 2210 | 250000722 | Torx Screw M6 X 20 |
| 2230 | 234062670 | Stainless Steel Flat Washer |
| 2240 | 250100198 | Panel Nut M6 X 1.0 |
| 2250 | 293150103 | Pop Rivet 3/16" |
| 2260 | 250000722 | Torx Screw M6 X 20 |
| 3000 | 707900339 | LH Front Floor |
| 3100 | 707900340 | RH Front Floor |
| 3110 | 293150104 | Pop Rivet 3/16" |
| 3700 | 707900495 | LH Floor |
| 3740 | 293150104 | Pop Rivet 3/16" |
| 3800 | 707900496 | Rear Right Floor |
| 3810 | 293150104 | Pop Rivet 3/16" |
| 3900 | 707900595 | Footrest Support |
| 3910 | 250000807 | Torx Truss Screw M6 X 25 |
| 3920 | 234062670 | Stainless Steel Flat Washer |
| 3930 | 250100198 | Panel Nut M6 X 1.0 |
| 4540 | 250000722 | Torx Screw M6 X 20 |
