Home / BRP / 1996 / Grand Touring / Grand Touring 580, 1996 / 01- Engine And Engine Support 580

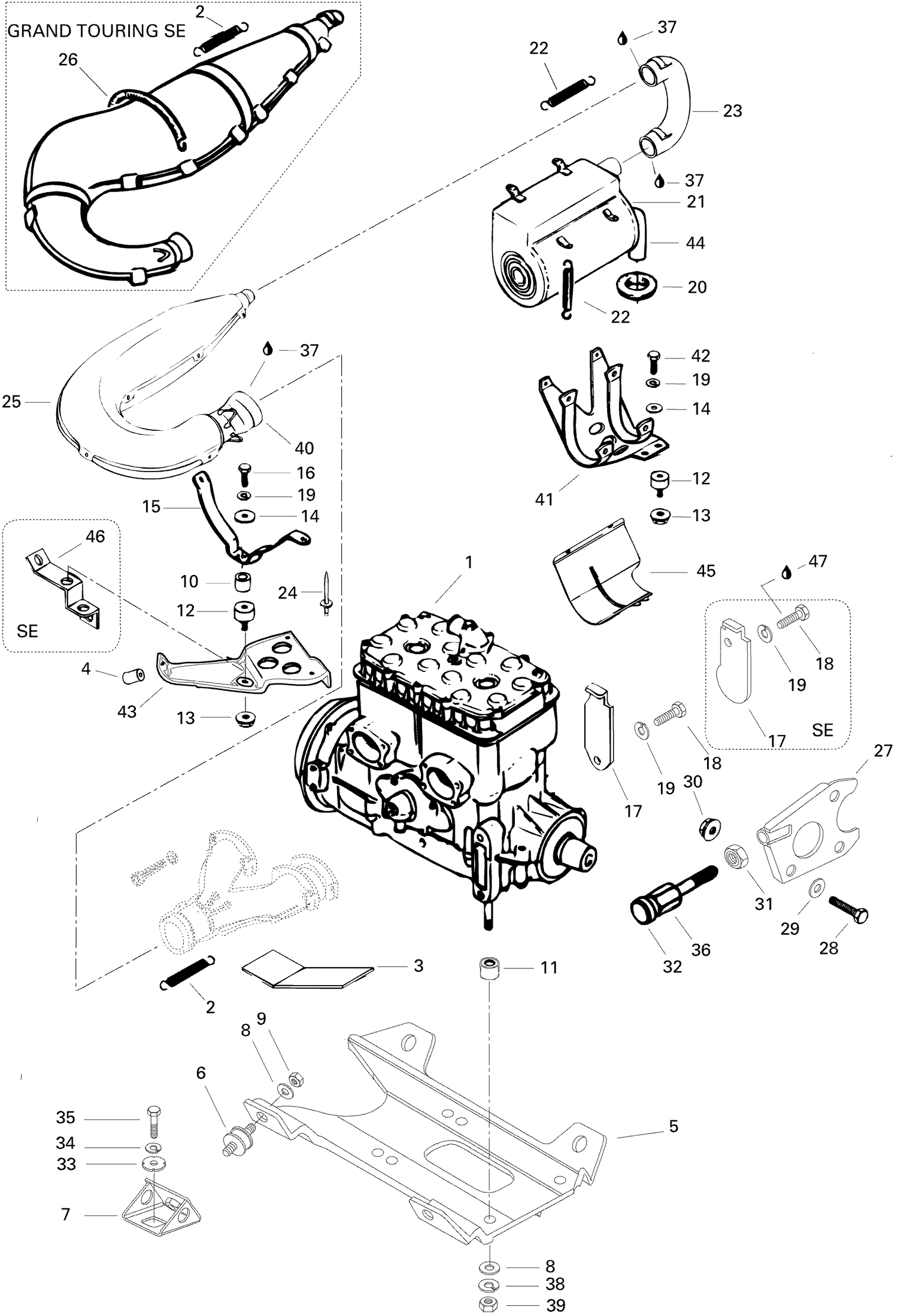

01- Engine And Engine Support 580

01- Engine And Engine Support 580

Parts (46)

RefPart NumberDescription
1 400507300 Moteur «582»
2 415107100 Spring This part replaces 414893700.
3 414706100 Reflection Plate
4 517277700 Spacer
5 512054400 Engine Support
6 570127700 RUBBER MOUNT - Call your local BRP dealership
7 512050900 Engine Support
8 234001410 Flat Washer 10 mm This part replaces 224001211.
9 233601416 Elastic Locking Nut M10 X 1.5 This part replaces 228501045.
10 517228500 Spacer
11 503128100 Spacer
12 570016100 Rubber Mount
13 233281414 Hex. Flange Elastic Nut M8 This part replaces 228781045.
14 234081410 Flat Washer 8 mm This part replaces 224081171.
15 514025800 Exhaust Pipe Support
16 207183044 Hex. Screw M8 X 30 This part replaces 222083065.
17 512049100 Stopper Plate
18 207181644 Hex. Screw M8 x 16 This part replaces 222081665.
19 234181401 Lock Washer 8 mm This part replaces 224781140.
20 570027300 Exhaust Grommet
21 514039400 Muffler
22 414851600 Spring
23 514039300 Tail Pipe
24 XXX Not Available As Spare Parts
25 514041700 Single Tune Pipe (Includes 40)
26 414851800 Spring
27 512052300 Support Plate
28 207182544 Hex. Screw M8 X 25 This part replaces 222082565.
29 234081410 Flat Washer 8 mm This part replaces 224081171.
30 232581414 Hex. Elastic Stop Nut M8 This part replaces 228581045.
31 232026414 RH Hex. Nut This part replaces 732610019.
32 570045400 STOPPER - Call your local BRP dealership
33 512056700 Lock Washer This part replaces 517168000.
34 234100602 WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
35 207102544 Hex. Screw M10 X 25 This part replaces 222002565.
36 512052400 Screw
37 293800090 Sealant, Loctite, 80 ml This part replaces 413710300.
38 234100602 WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
39 232006414 Hex. Nut M10 X 1.5 This part replaces 228001045.
40 420879991 FEMALE BALL JOINT - Call your local BRP dealership
41 514031800 Support Ass’y
42 222081265 Screw Hex. M8 x 12
43 518206600 Tuned Pipe Support
44 514022100 Inlet Tube
45 XXX Not Available As Spare Parts
46 XXX Not Available As Spare Parts
