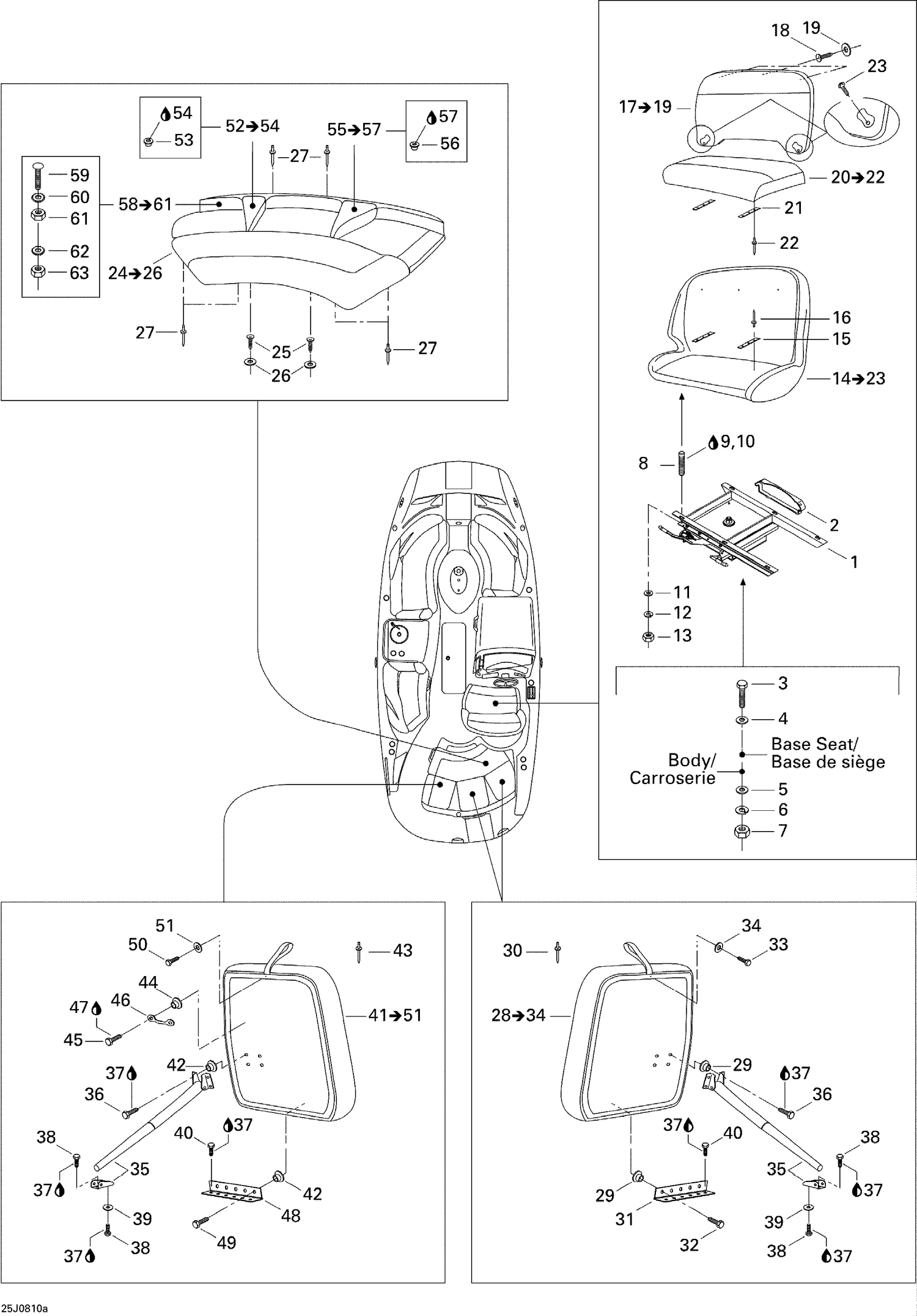

| Ref | Part Number | Description |
|---|
| 1 |
204611540 |
SWIVEL BASE SEAT - Call your local BRP dealership |
| 2 |
204610376 |
Rear Protector |
| 3 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 4 |
234081600 |
Stainless, Flat Washer 8 mm |
| 5 |
234082600 |
Flat Washer 8 mm, Stainless |
| 6 |
234181601 |
Lock Washer 8 mm, Stainless |
| 7 |
232581600 |
Hex. Elastic Nut M8 |
| 8 |
204100077 |
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 9 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 10 |
293800005 |
Loctite 271, 10 ml |
| 11 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
211200025 |
Lock Washer 1/4” |
| 13 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 15 |
293740007 |
Velcro Strip |
| 16 |
293150065 |
RIVET - Call your local BRP dealership |
| 18 |
293730014 |
Black Dart |
| 19 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
293740004 |
VELCRO STRIP - Call your local BRP dealership |
| 22 |
293150008 |
Pop Rivet 3/16" |
| 23 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 25 |
293730006 |
Black, Dart |
| 26 |
234062600 |
Flat Washer M6, Stainless |
| 27 |
293150013 |
Pop Rivet 3/16" |
| 29 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 30 |
293150043 |
Pop Rivet 3/16" |
| 31 |
204610750 |
BACKREST HINGE - Call your local BRP dealership |
| 32 |
204100035 |
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership |
| 33 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 34 |
234042600 |
Flat Washer 4 mm, Stainless |
| 35 |
204610749 |
Locking Support |
| 36 |
204100037 |
SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership |
| 37 |
293800060 |
Loctite 243, 10 ml |
| 38 |
204100035 |
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership |
| 39 |
234062600 |
Flat Washer M6, Stainless |
| 40 |
204100036 |
SOCKET HEAD SCREW 1/4? X 1-1/4? - Call your local BRP dealership |
| 42 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 43 |
293150043 |
Pop Rivet 3/16" |
| 44 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 45 |
204100045 |
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership |
| 46 |
204610988 |
Chain Pad |
| 47 |
293800060 |
Loctite 243, 10 ml |
| 48 |
204610750 |
BACKREST HINGE - Call your local BRP dealership |
| 49 |
204100035 |
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership |
| 50 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 51 |
234042600 |
Flat Washer 4 mm, Stainless |
| 53 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 54 |
293800060 |
Loctite 243, 10 ml |
| 56 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 57 |
293800060 |
Loctite 243, 10 ml |
| 59 |
204000130 |
Elevator Bolt |
| 60 |
234461608 |
External Serrated Lock Washer 6 mm |
| 61 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 62 |
234082600 |
Flat Washer 8 mm, Stainless |
