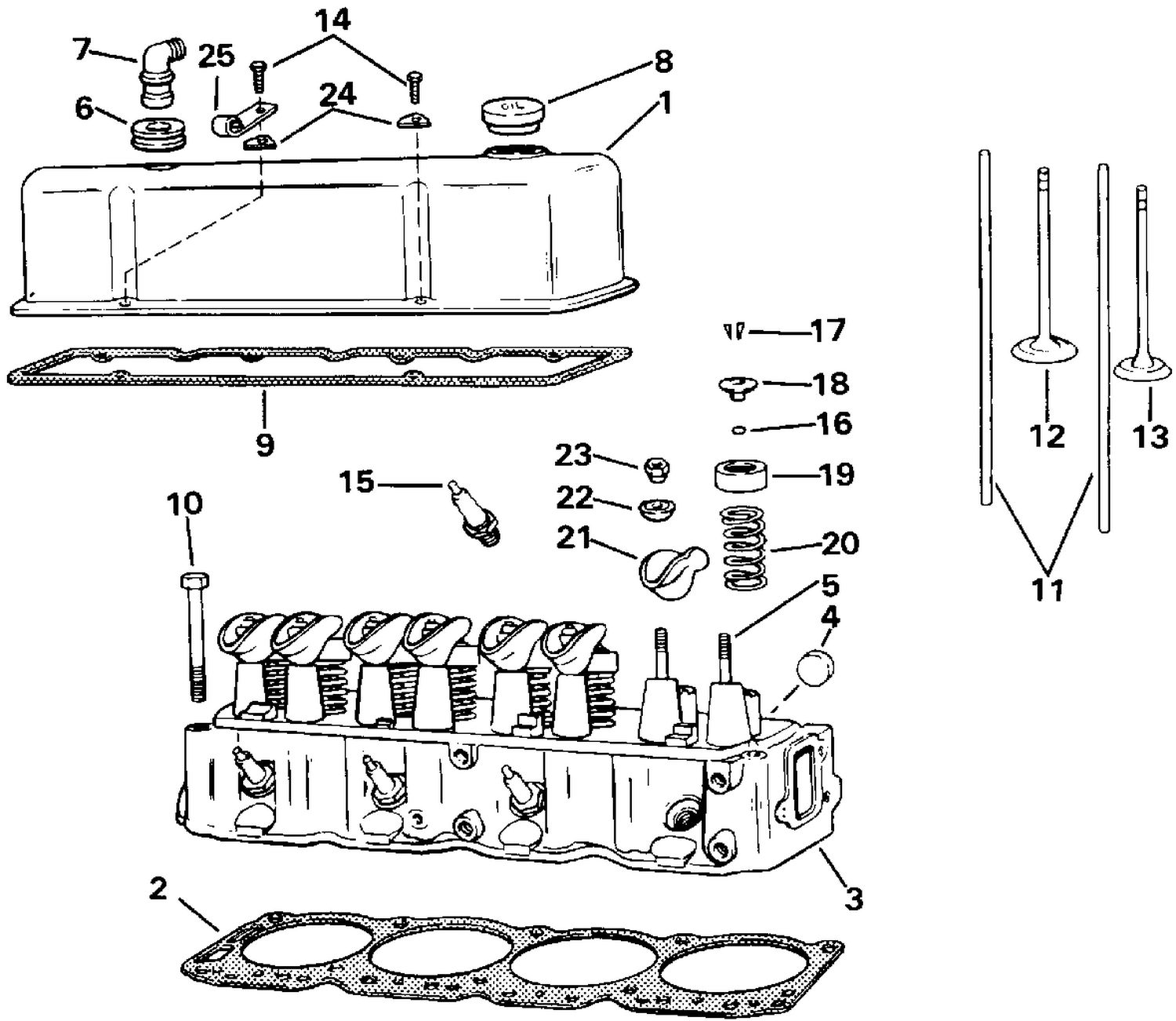

| Ref | Part Number | Description |
|---|
| 1 |
3853784 |
VALVE COVER This part replaces 0980502. |
| 2 |
3853336 |
GASKET, Cylinder head This part replaces 0914812. |
| 3 |
0986767 |
CYLINDER HEAD |
| 3 |
3854012 |
CYLINDER HEAD This part replaces 0986753. |
| 4 |
0311378 |
CORE PLUG |
| 5 |
3853146 |
STUD, 0.003 in. O.S. This part replaces 0914339. |
| 5 |
3853147 |
STUD, 0.013 in. O.S. This part replaces 0914340. |
| 6 |
0311543 |
GROMMET |
| 7 |
0311545 |
ELBOW |
| 8 |
3853842 |
OIL CAP, Push-on This part replaces 0985084. |
| 9 |
3852693 |
GASKET, Valve cover This part replaces 0913277. |
| 10 |
3853337 |
BOLT, Head to crankcase This part replaces 0914813. |
| 11 |
3853137 |
PUSH ROD This part replaces 0914329. |
| 12 |
0914388 |
VALVE, Exhaust, standard |
| 12 |
0914389 |
VALVE, Exhaust, 0.003 O.S. |
| 12 |
0914390 |
VALVE, Exhaust, 0.0015 O.S. |
| 12 |
3853127 |
VALVE, Exhaust, standard This part replaces 0914316. |
| 12 |
3853128 |
VALVE, Exhaust, 0.015 in. O.S. This part replaces 0914318. |
| 13 |
0914889 |
VALVE, Intake, standard |
| 13 |
0914890 |
VALVE, Intake, 0.003 O.S. |
| 13 |
0914891 |
VALVE, Intake, 0.015 O.S. |
| 13 |
0914892 |
VALVE, Intake, 0.030 O.S. |
| 13 |
3852448 |
VALVE, Intake, 0.003 in. O.S. This part replaces 0908591. |
| 13 |
3852449 |
VALVE, Intake, 0.015 in. O.S. This part replaces 0908592. |
| 13 |
3852450 |
VALVE, Intake, 0.030 in. O.S. This part replaces 0908593. |
| 13 |
3852451 |
VALVE, Intake, standard This part replaces 0908612. |
| 14 |
3852441 |
SCREW & LOCK WASHER This part replaces 0908407. |
| 15 |
0912937 |
SPARK PLUG, RV12YC |
| 15 |
0912938 |
SPARK PLUG, RS12YC |
| 16 |
3854956 |
SEAL, Valve stem This part replaces 0914323. |
| 17 |
3855823 |
KEY, Valve stem This part replaces 0914322. |
| 18 |
3853129 |
CAP, Valve spring This part replaces 0914320. |
| 19 |
3853145 |
SHIELD, Valve stem This part replaces 0914338. |
| 20 |
3853130 |
VALVE SPRING & DAMPER This part replaces 0914321. |
| 21 |
3853139 |
ARM, Valve rocker This part replaces 0914331. |
| 22 |
3853140 |
BALL, Rocker arm This part replaces 0914332. |
| 23 |
3853141 |
NUT, Rocker arm This part replaces 0914333. |
| 24 |
3852442 |
REINFORCEMENT This part replaces 0908408. |
