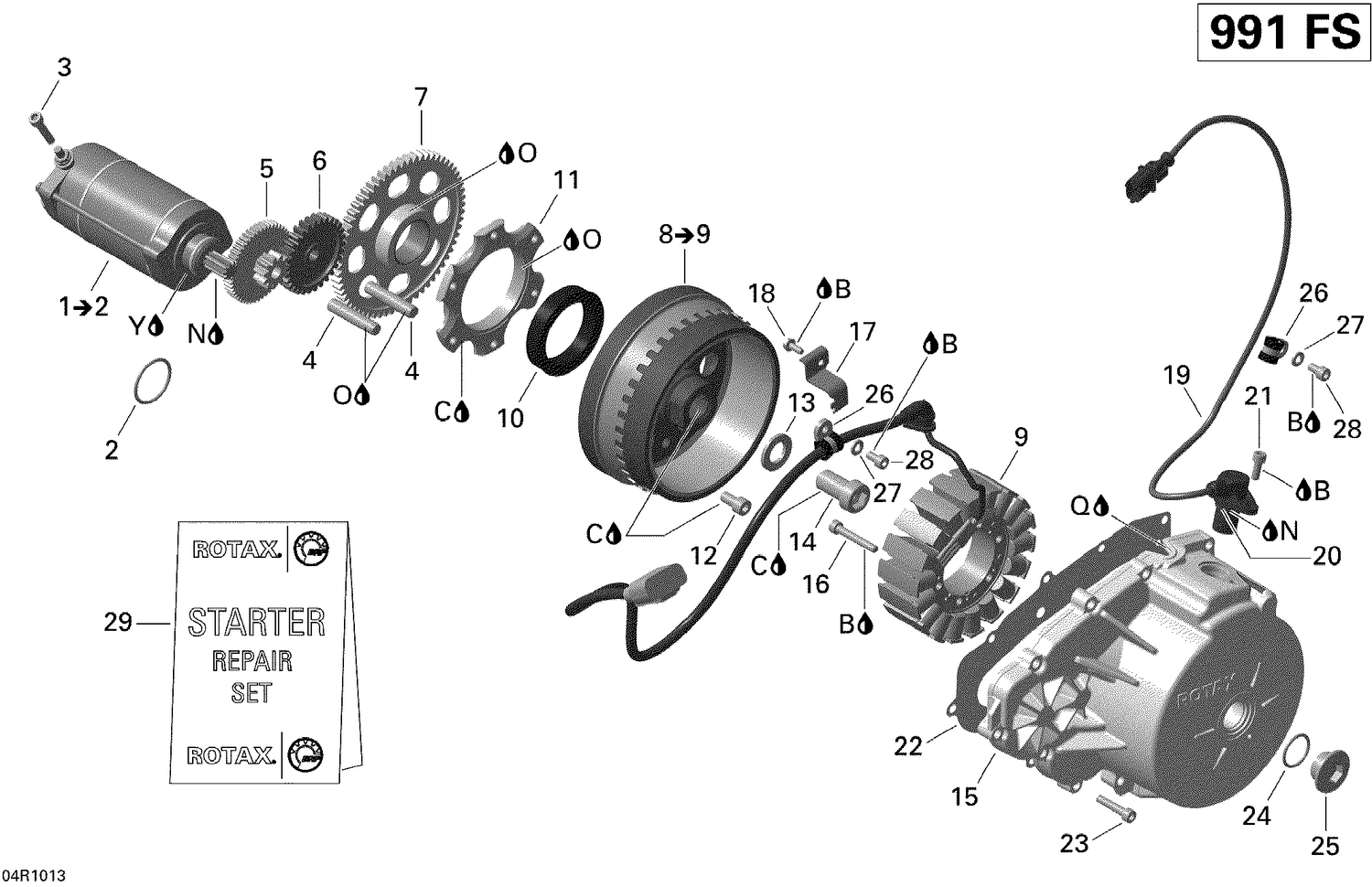

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| N |
413707000 |
Dow Corning 111, 150 g |
| O |
Not |
Available As Spare Part - Engine Oil |
| Q |
296000309 |
Silicone Sealant 51388, 300 ml |
| 2 |
420250140 |
O-Ring |
| 3 |
420840882 |
Allen Screw M6 X 30 |
| 4 |
420229302 |
Location Pin 10 M6x50 This part replaces 420229301. |
| 5 |
420634741 |
Starter Double Gear 11/49 T |
| 6 |
420634605 |
Starter Intermediate Gear, 30 Teeth |
| 7 |
420634593 |
Gear, 64 Teeth This part replaces 420634595. |
| 9 |
420685287 |
Magneto Ass'y This part replaces 420685335. |
| 10 |
420659110 |
Sprag Clutch |
| 11 |
420659129 |
Clutch Sprag Housing This part replaces 420659124. |
| 12 |
420641594 |
Socket Head Screw M8 X 16 This part replaces 420641590. |
| 13 |
420627270 |
Shim |
| 14 |
420241542 |
Socket Head Screw M16 X 30 This part replaces 420241540. |
| 15 |
420611311 |
Ignition Cover This part replaces 420611310. |
| 16 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 17 |
420251165 |
INNER CABLE COVER - Call your local BRP dealership |
| 18 |
420941935 |
Taptite Screw M5 x 12 |
| 19 |
420966570 |
Crankshaft Position Sensor Ass'y |
| 20 |
420431580 |
O-Ring |
| 21 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 22 |
420650341 |
Gasket |
| 23 |
205063044 |
Socket Head Screw M6 X 30 |
| 24 |
420430782 |
O-Ring |
| 25 |
420241633 |
Plug Screw M24X 1.5 This part replaces 420241630. |
| 26 |
414176000 |
Open Clamp |
| 27 |
420827961 |
FLAT WASHER - Call your local BRP dealership |
| 28 |
420840379 |
Socket Head Screw M6 X 11.5 This part replaces 420840371. |
| 29 |
420294354 |
STARTER BRUSH KIT - Call your local BRP dealership |
