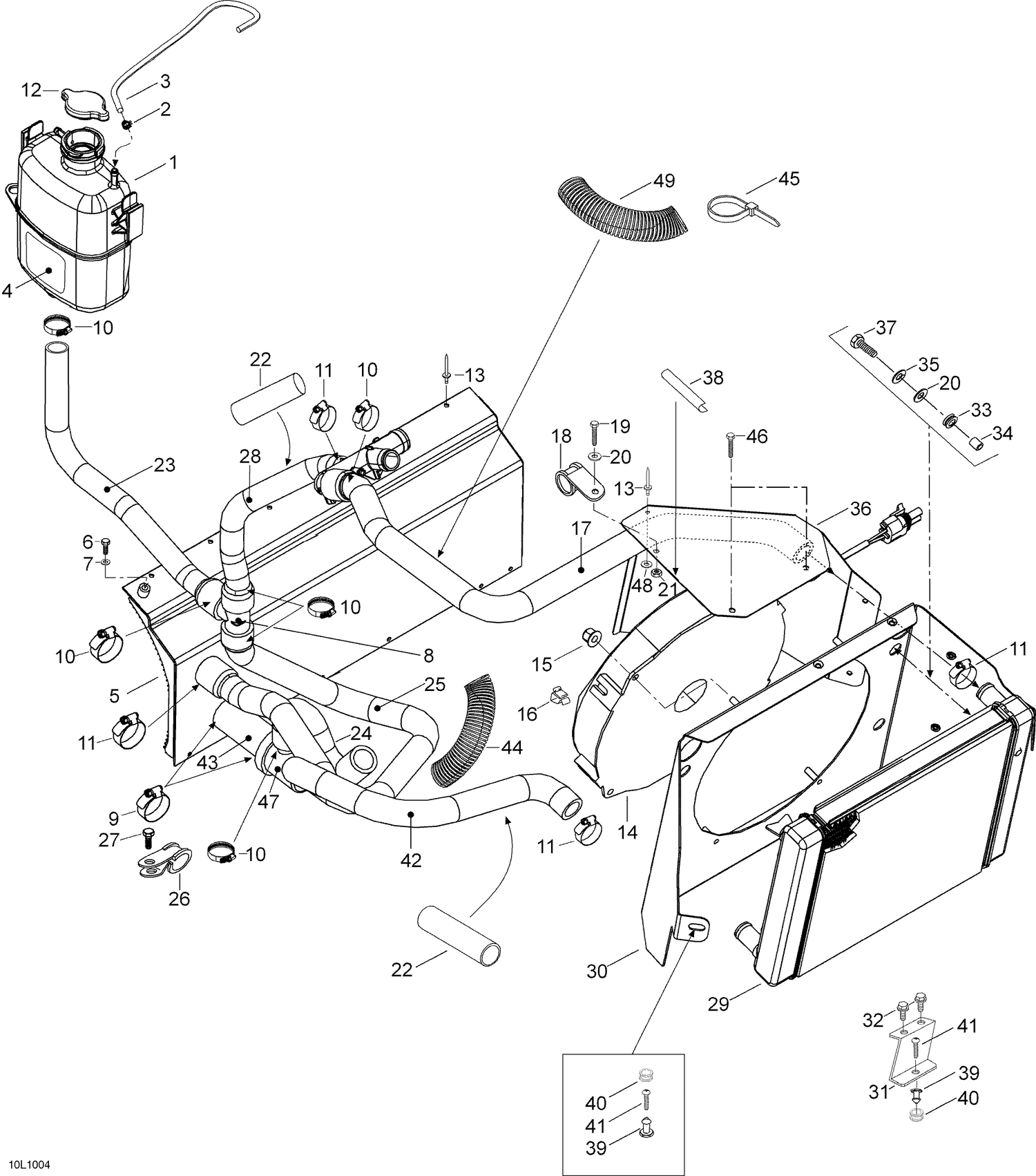

01- Cooling System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 276000086 | Coolant Tank |
| 2 | 605627003 | Clamp |
| 3 | 39038 | Hose |
| 4 | 44110 | Aluminum Foil |
| 5 | 605253699 | Radiator |
| 6 | 40114 | Screw M6 x 10 |
| 7 | Not | Available As Spare Part - Seal |
| 8 | 509000219 | T-Fitting |
| 9 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 10 | 605627002 | CLAMP - Call your local BRP dealership |
| 11 | 605627004 | Clamp |
| 12 | 509000180 | Radiator Pressure Cap |
| 13 | 36108 | Rivet |
| 14 | 605155907 | FAN - Call your local BRP dealership |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 414227300 | Clip |
| 17 | 605253694 | HOSE - Call your local BRP dealership |
| 18 | 27039 | Clamp |
| 19 | 40029 | Screw M6 x 16 |
| 20 | 234062410 | Flat Washer 6 mm |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 39062 | Al-Tubing |
| 23 | 605253689 | HOSE - Call your local BRP dealership |
| 24 | 605354452 | HOSE - Call your local BRP dealership |
| 25 | 605354451 | HOSE - Call your local BRP dealership |
| 26 | 27039 | Clamp |
| 27 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 28 | 605253690 | HOSE - Call your local BRP dealership |
| 29 | 605353238 | RADIATOR 250 - Call your local BRP dealership |
| 30 | 605254916 | SUPPORT PLATE - Call your local BRP dealership |
| 31 | 605354917 | FASTENING PLATE - Call your local BRP dealership |
| 32 | 40030 | Hex. Screw M6 x 20 |
| 33 | 709000582 | Grommet This part replaces 293720053. |
| 34 | 605453745 | Bushing |
| 35 | 20052 | Lock washer A6 |
| 36 | 605254458 | DEFLECTOR PLATE - Call your local BRP dealership |
| 37 | 210251650 | Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 38 | 28413 | Sealing list |
| 39 | 517303439 | Knob |
| 40 | 517307161 | Grommet This part replaces 517302841. |
| 41 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 42 | 605253693 | HOSE - Call your local BRP dealership |
| 43 | 605354450 | HOSE - Call your local BRP dealership |
| 44 | 27127 | Tubing |
| 45 | 414115200 | Tie-Rap 180 mm |
| 46 | 40030 | Screw M6 x 20 |
| 47 | 605353701 | THERMOSTAT - Call your local BRP dealership |
| 48 | 20002 | Washer A5,3 |
