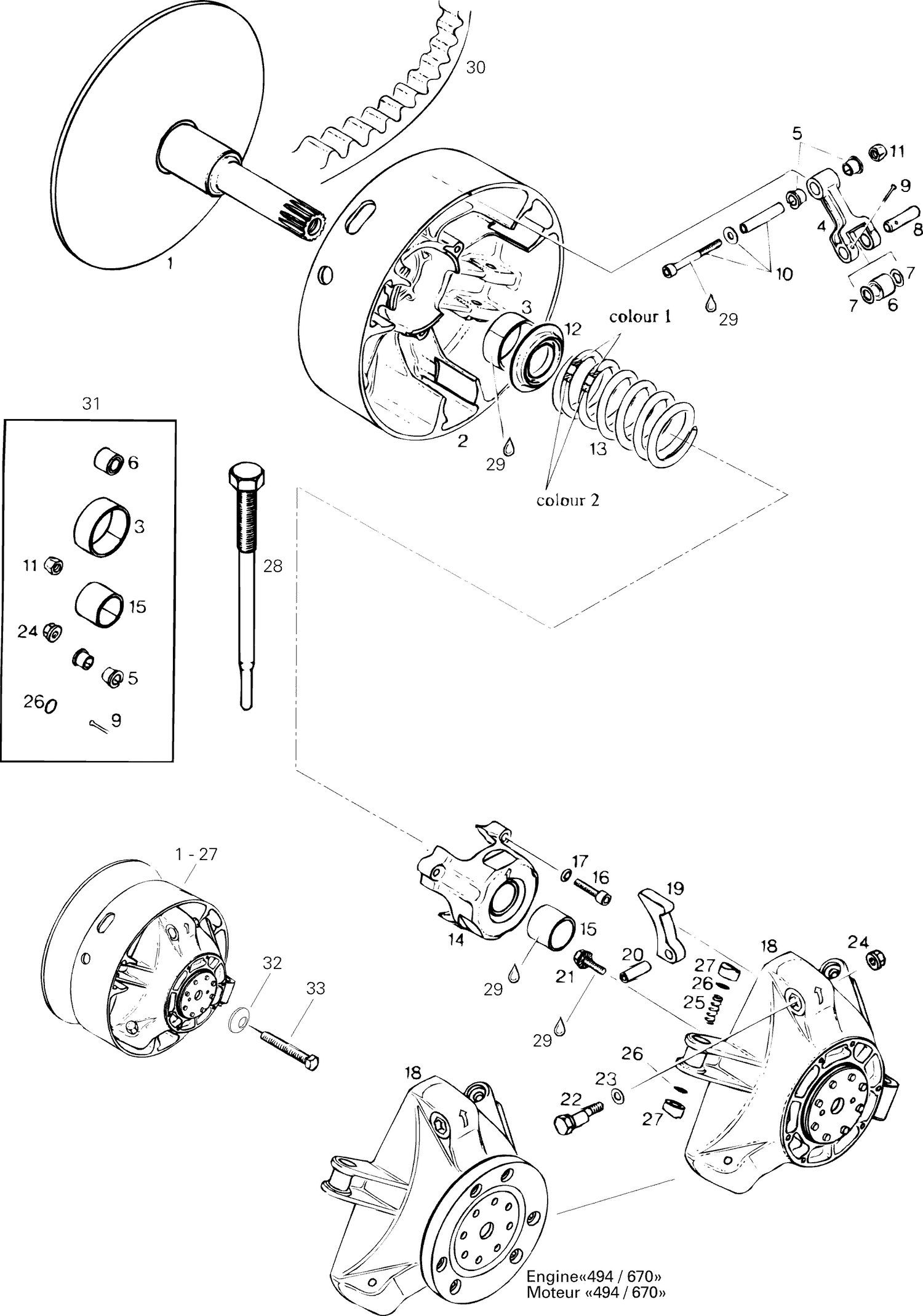

| Ref | Part Number | Description |
|---|
| 1 |
417222408 |
Flasque Fixe Us*Flange-Fix.Mach This part replaces 420480410. |
| 3 |
420433173 |
BUSHING OUTER HALF - Call your local BRP dealership |
| 5 |
417004305 |
Bushing This part replaces 420433195. |
| 6 |
417222947 |
Roller This part replaces 420429132. |
| 7 |
417004302 |
Stopper Washer This part replaces 420427400. |
| 8 |
417004309 |
Pin This part replaces 420429140. |
| 9 |
250400060 |
Cotter Pin This part replaces 420245210. |
| 10 |
420440166 |
Fitting Screw |
| 11 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 12 |
420427392 |
Spring Seat |
| 13 |
414689700 |
SPRING, YELLOW/ORANGE - Call your local BRP dealership |
| 15 |
417004501 |
Bushing This part replaces 420433188. |
| 16 |
205064086 |
Socket Screw M6 X 40 |
| 17 |
420245370 |
WASHER - Call your local BRP dealership |
| 18 |
420480395 |
Governor Cup |
| 19 |
420480280 |
Ramp (Sea-Level) |
| 20 |
420429150 |
Dowel Tube M8 x 24 |
| 21 |
420440180 |
Hex. Locking Screw M6 x 20 |
| 22 |
417222955 |
CALIBRATION SCREW - Call your local BRP dealership This part replaces 420440170. |
| 23 |
420927941 |
Washer |
| 24 |
233061414 |
Hex. Flange Nut M6 This part replaces 420442110. |
| 25 |
417005700 |
Spring This part replaces 420438100. |
| 26 |
732401030 |
O-Ring This part replaces 420430730. |
| 27 |
417223021 |
Slider Shoe This part replaces 420460045. |
| 28 |
529000064 |
Puller This part replaces 529022400. |
| 29 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 30 |
417300067 |
Drive Belt This part replaces 414918200. |
| 31 |
420483325 |
Clutch Repair Kit |
| 32 |
250200006 |
Spring Washer 14 mm This part replaces 732900021. |
