| Ref | Part Number | Description |
|---|
| 1 |
0389552 |

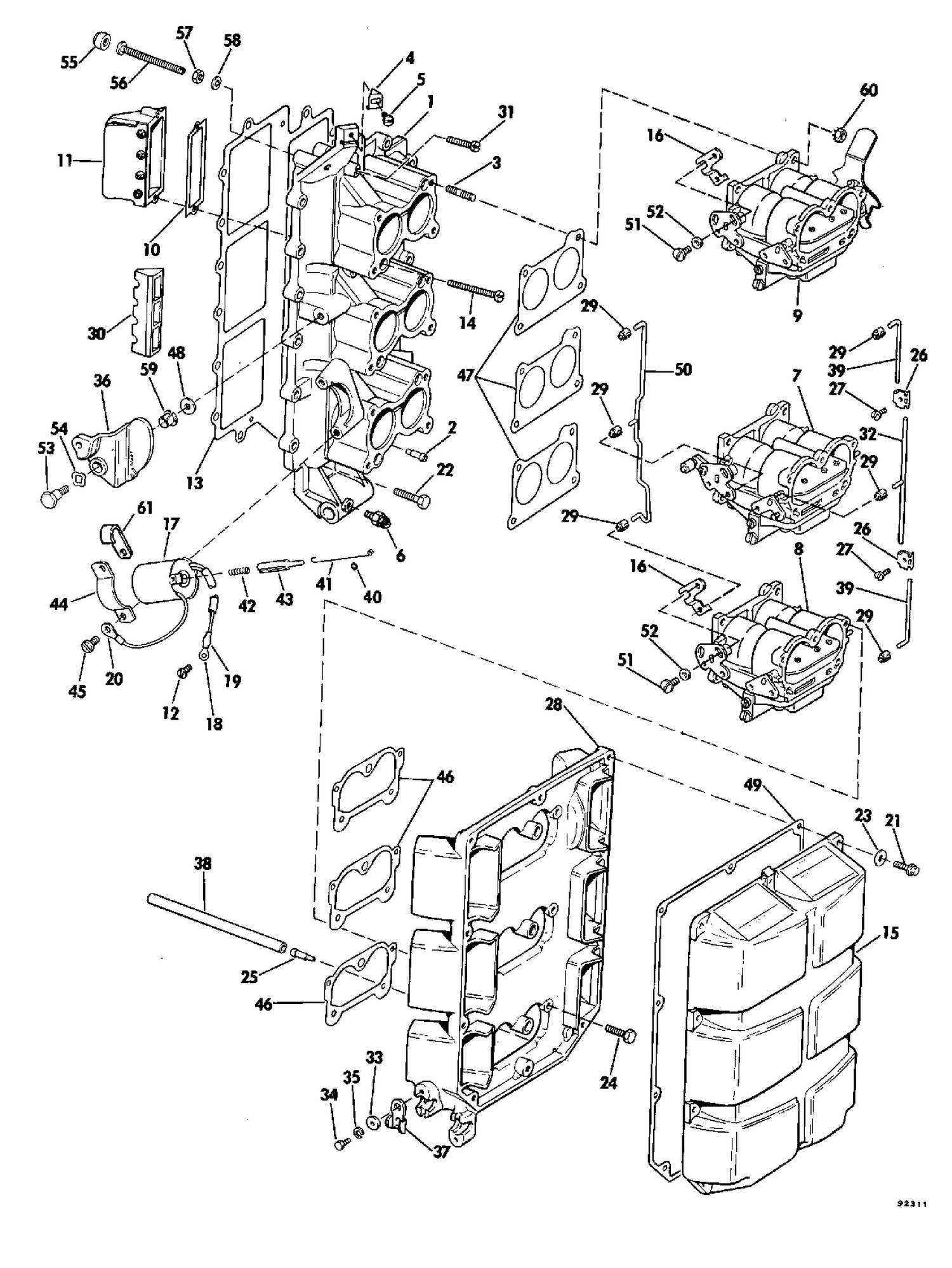

INTAKE MANIFOLD ASSEMBLY |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector This part replaces 0318174. |
| 7 |
CARB. |
ASSY., Middle |
| 8 |
CARB. |
ASSY., Lower |
| 9 |
CARB. |
ASSY., Upper |
| 10 |
0321907 |
GASKET, Leaf plate |
| 11 |
0389823 |
CLAPET |
| 13 |
0329718 |
GASKET, Manifold to c'case This part replaces 0321198. |
| 14 |
0313217 |
SCREW |
| 15 |
0320930 |
COVER, Air silencer This part replaces 0387871. |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
0581929 |
SOLENOID |
| 22 |
0306418 |
VIS, ancrage |
| 24 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 26 |
0318974 |
FASTENER, Cable clamp |
| 27 |
0303686 |
SCREW, Fastener |
| 28 |
0391254 |
BASE, Air silencer This part replaces 0324406. |
| 29 |
0313329 |
LOCKWASHER, Carburetor link |
| 30 |
0322722 |
FILLER BLOCK, 175, 185, 235 |
| 31 |
0133451 |
SCREW, Leaf plate manifold, short |
| 32 |
0387379 |
LINK & PIN ASSY |
| 33 |
0310688 |
SAPCER, Anchor block |
| 36 |
0322503 |
THROTTLE CAM |
| 37 |
0310687 |
DETENT SPRING, Anchor block |
| 38 |
HOSE, |
Air silencer |
| 39 |
0316073 |
LINK, Carburetor choke |
| 40 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 41 |
0321659 |
LINK, Choke soleniod |
| 42 |
0327732 |
SPRING, Plunger This part replaces 0324085. |
| 43 |
0324761 |
PLUNGER, Choke solenoid |
| 44 |
0321218 |
CLAMP, Choke solenoid |
| 45 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0315052 |
GASKET CARB. TO MANIFOLD |
| 48 |
0306407 |
LOCCKWASHER,Cover latch |
| 49 |
0321183 |
GASKET, Cover |
| 50 |
0432272 |
LINK AND PIN, Throttle arm This part replaces 0387378. |
| 54 |
0204445 |
BOW WASHER |
| 55 |
0314416 |
BUMBER, Advance screw |
| 56 |
0317615 |
SCERW,Spark advance |
| 60 |
0316291 |
NUT |
