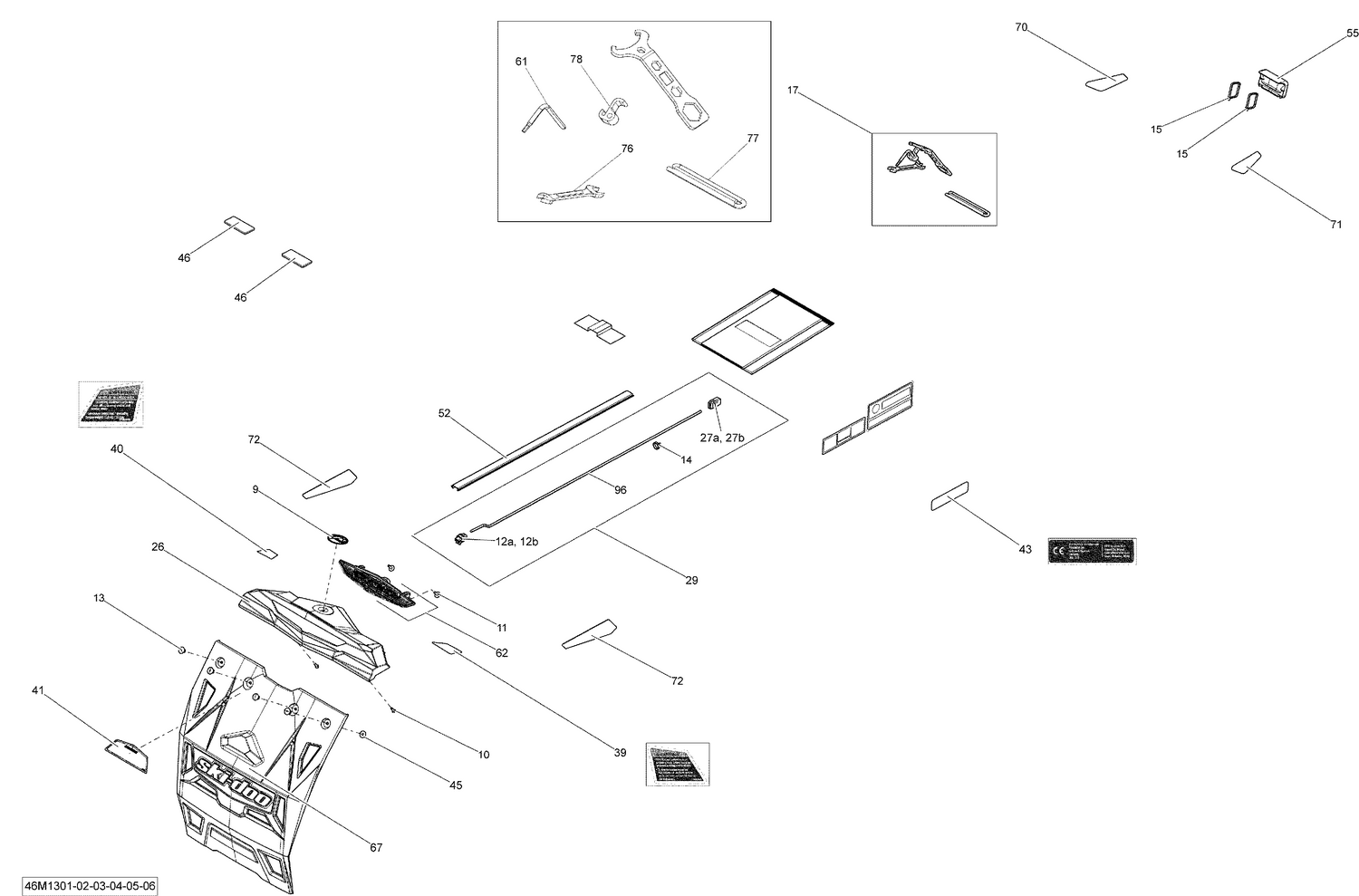

09- Utilities
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 219903947 | BRP Logo 48 mm |
| 10 | 241141340 | Hex. Screw K40 X 13 |
| 11 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 12a | 278002387 | Female Terminal Housing 3 Circuits |
| 12b | 710001153 | Seal Wire |
| 13 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 14 | 293750002 | Tie Wrap 142 mm |
| 17 | 520001590 | Tools Kit This part replaces 520001158. |
| 26 | 511000810 | Deep Black, Light Fairing |
| 27a | 515175494 | Male Housing, 3 Circuits |
| 27b | 515175232 | Male Terminal |
| 39 | 516005057 | WARNING DECAL, SAFETY - Call your local BRP dealership |
| 40 | 516005058 | Warning Decal, Safety |
| 45 | 517124300 | Washer |
| 52 | 520000829 | Radiator Trim |
| 61 | 520001142 | Spacing Tool |
| 62 | 520001143 | Rear Light |
| 70 | 520001236 | Yellow, LH Front Reflector |
| 71 | 520001237 | Yellow, RH Front Reflector |
| 76 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 77 | 219704403 | Was 412500100 Rope-Starter |
| 78 | 529000060 | Starter Grip |
