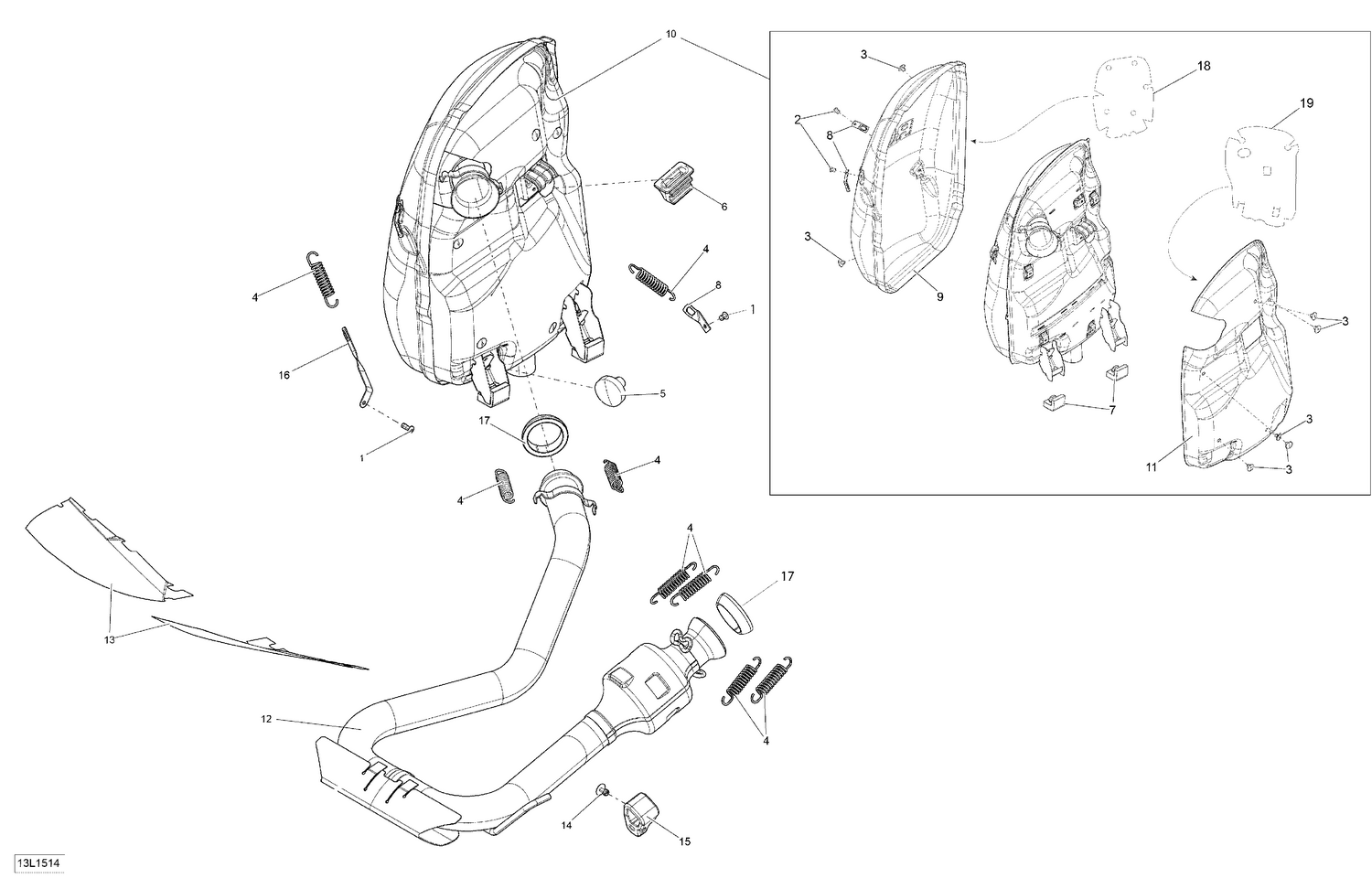

01- Exhaust System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390909100 | Avex Rivet |
| 2 | 390909200 | Avex Rivet |
| 3 | 390910000 | Pop Rivet 3/16” |
| 4 | 415107100 | Spring |
| 5 | 514053654 | Rubber Bumper |
| 6 | 514054346 | Stopper |
| 7 | 514054496 | Lower Stopper |
| 8 | 514054522 | Spring Bracket |
| 9 | 514055325 | RH Heat Shield This part replaces 514054644. |
| 10 | 514055324 | Muffler Ass'y This part replaces 514054878. |
| 11 | 514055128 | LH HEAT SHIELD - Call your local BRP dealership This part replaces 514054880. |
| 12 | 514054960 | Welded Pipe |
| 13 | 514054999 | HEAT SHIELD - Call your local BRP dealership |
| 14 | 293150103 | Pop Rivet 3/16 |
| 15 | 514055012 | Rubber |
| 16 | 514055030 | Spring Bracket |
| 17 | 707601033 | Exhaust Gasket |
| 18 | 514054769 | RH Insulating Wool |
