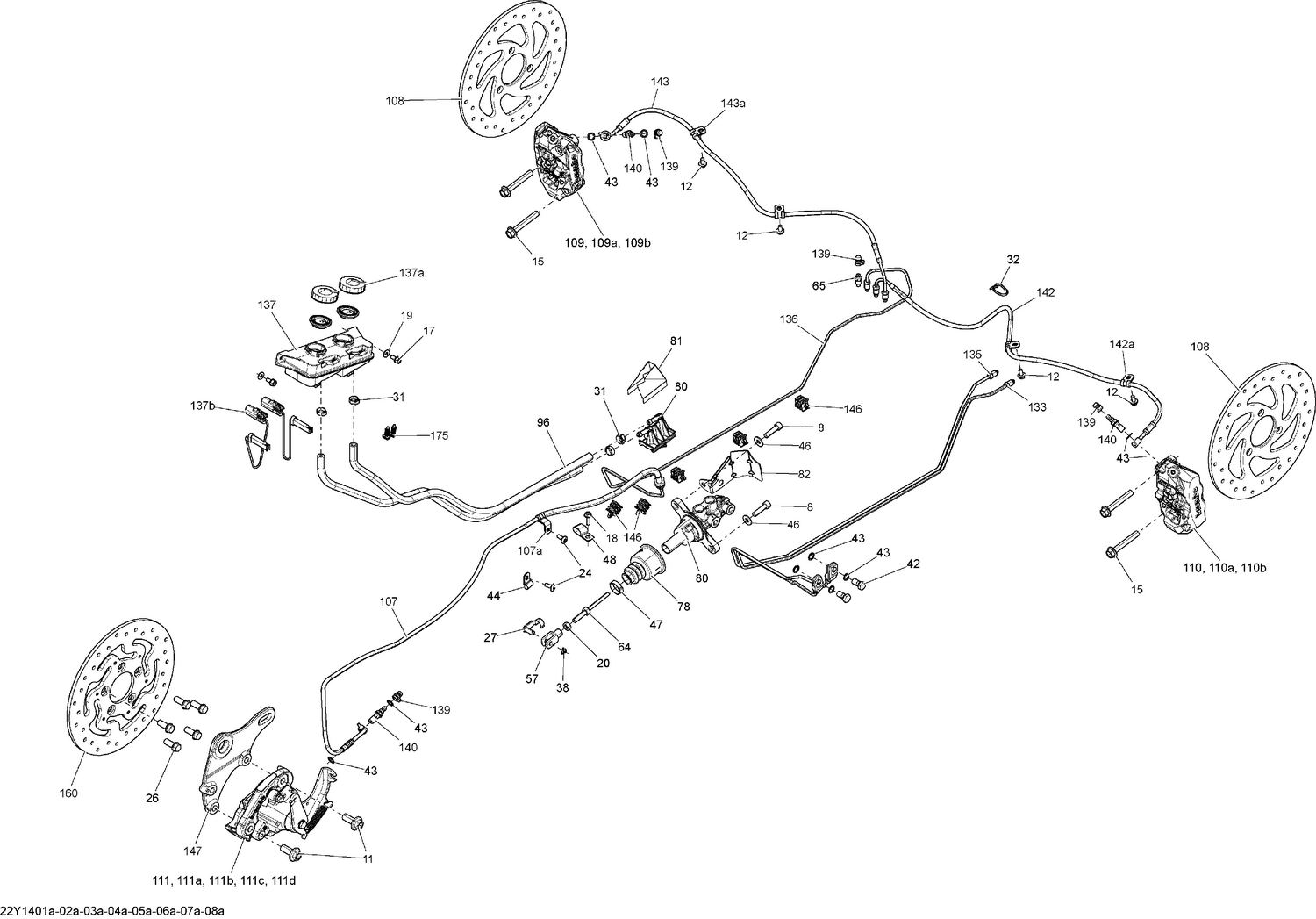

06- Hydraulic Brake RTS_22Y1402a
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 205583044 | SCREW-SOCKET S. GRIP DIN.912 - Call your local BRP dealership |
| 11 | 207523036 | Hex. Flange Screw S.Grip M12 X 30 |
| 12 | 207561234 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 15 | 207506556 | Hex Flange Screw M10 X 65 This part replaces 207506536. |
| 17 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 18 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 19 | 224061121 | Flat Washer |
| 20 | 232081414 | Hex. Nut M8 |
| 24 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 26 | 250001054 | Hex. Flange Screw M10 X 25 This part replaces 250000562. |
| 31 | 293650047 | Crimp Clamp, 15.3-706R |
| 32 | 293750008 | Tie Wrap 368 mm |
| 42 | 414920500 | Banjo Bolt |
| 43 | 414920600 | Washer |
| 44 | 415052400 | Bracket |
| 46 | 506151245 | Washer |
| 47 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 48 | 515175507 | Open Clamp |
| 57 | 705600100 | Yoke |
| 64 | 705600468 | Piston Rod |
| 65 | 705600502 | Bleeder Screw |
| 78 | 705600716 | Bellow |
| 80 | 705600722 | Tandem Cylinder Master |
| 81 | XXX | Not Available As Spare Parts |
| 82 | XXX | Not Available As Spare Parts |
| 96 | 219704417 | HOSE 8MM 3000MM LONG - Call your local BRP dealership |
| 107 | 705601500 | Brake Line This part replaces 705600916. |
| 107a | 293650256 | Clamp This part replaces 705600459. |
| 108 | 705601631 | Front Brake Disk This part replaces 705600955. |
| 109 | 705600987 | LH Front Caliper |
| 109a | 219800237 | Brake Pad Kit |
| 109b | 219800238 | Spring/Pin/Clip Kit |
| 110 | 705600988 | RH Front Caliper |
| 110a | 219800237 | Brake Pad Kit |
| 110b | 219800238 | Spring/Pin/Clip Kit |
| 111 | 705600989 | Rear Caliper |
| 111a | 219800239 | Brake Pad Kit |
| 111b | 219800240 | Spring/Pin/Clip Kit |
| 111c | 219800241 | Rear Cable Support Kit |
| 111d | 219800242 | Rear Dust Cover |
| 133 | 705601157 | Tandem Rigid Tube |
| 135 | 705601158 | Tandem Rigid Tube |
| 136 | 705601159 | Rear Brake Rigid Tube |
| 137 | 705601366 | Brake Fluid Reservoir Ass'y This part replaces 705601072. |
| 137a | 219800058 | Cap And Diaphragm Kit |
| 137b | 705601073 | Oil Level Sensor |
| 139 | 705601190 | Bleeder Bolt Cap |
| 140 | 705601201 | Banjo Bolt/ Bleeder |
| 142a | XXX | Not Available As Spare Parts |
| 146 | 705601987 | Anchorage Tube This part replaces 705601256. |
| 147 | 705601262 | Rear Caliper Support |
| 160 | 705601632 | Rear Brake Disk This part replaces 705601300. |
