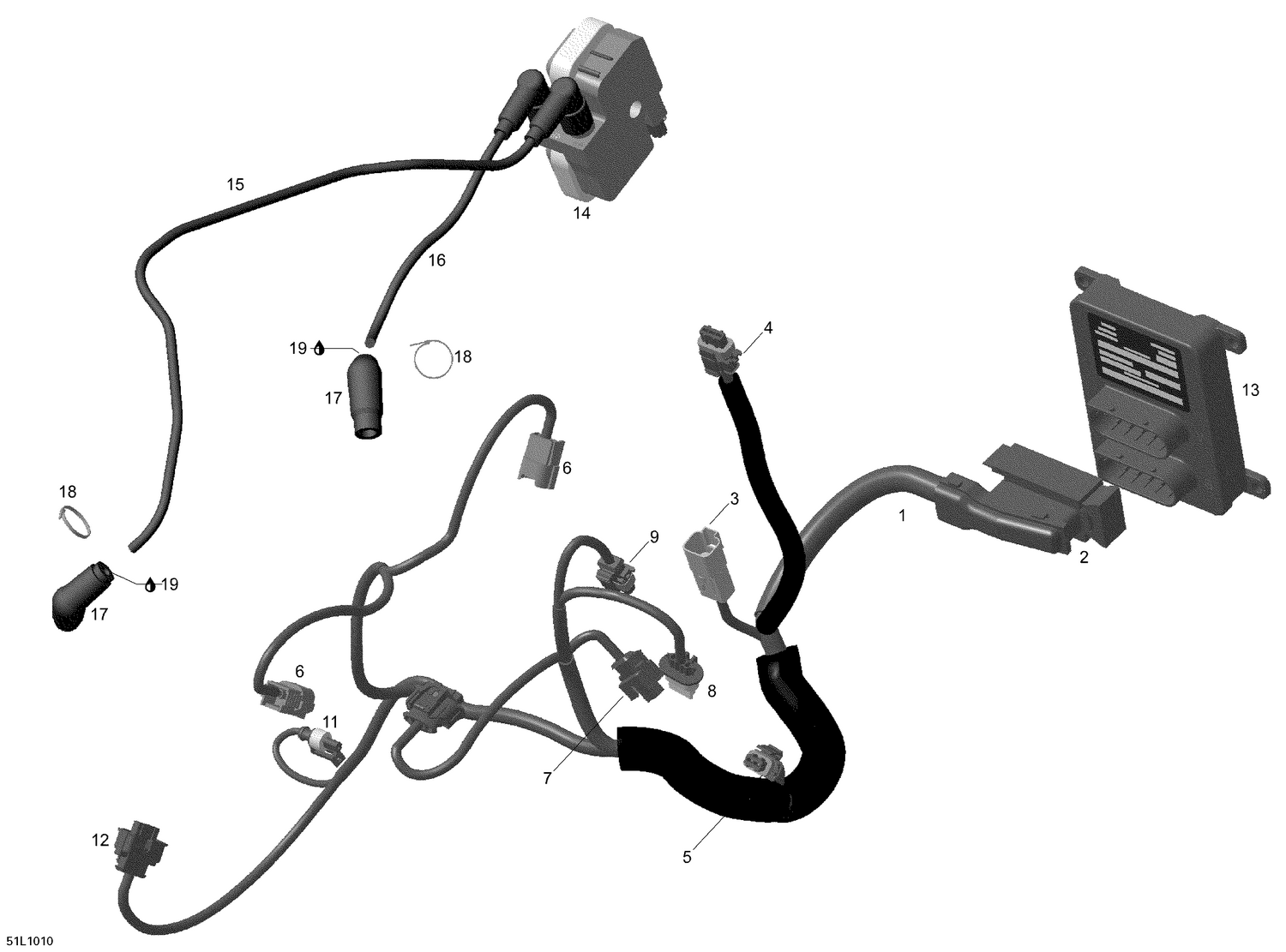

| Ref | Part Number | Description |
|---|
| 2 |
420664450 |
ECM Connector |
| 3 |
Not |
Available As Spare Part - Connector HIC |
| 4 |
Not |
Available As Spare Part - Connector, ignition coil |
| 5 |
Not |
Available As Spare Part - Connector CPS |
| 6 |
Not |
Available As Spare Part - Connector, injector |
| 7 |
Not |
Available As Spare Part - Connector MAPS |
| 8 |
Not |
Available As Spare Part - Connector IA BPV |
| 9 |
Not |
Available As Spare Part - Connector WTS |
| 10 |
Not |
Available As Spare Part - Connector TPS |
| 11 |
Not |
Available As Spare Part - Connector, CAM |
| 12 |
Not |
Available As Spare Part - Connector, OPS |
| 13 |
420666208 |
ELECTRONIC MODULE - Call your local BRP dealership This part replaces 420666207. |
| 14 |
278001546 |
Ignition Coil |
| 15 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420665330. |
| 16 |
420664305 |
CABLE ASS?Y 245 MM PTO - Call your local BRP dealership |
| 17 |
420265248 |
Spark Plug Connector This part replaces 420265240. |
| 18 |
420866710 |
Tie Rap |
