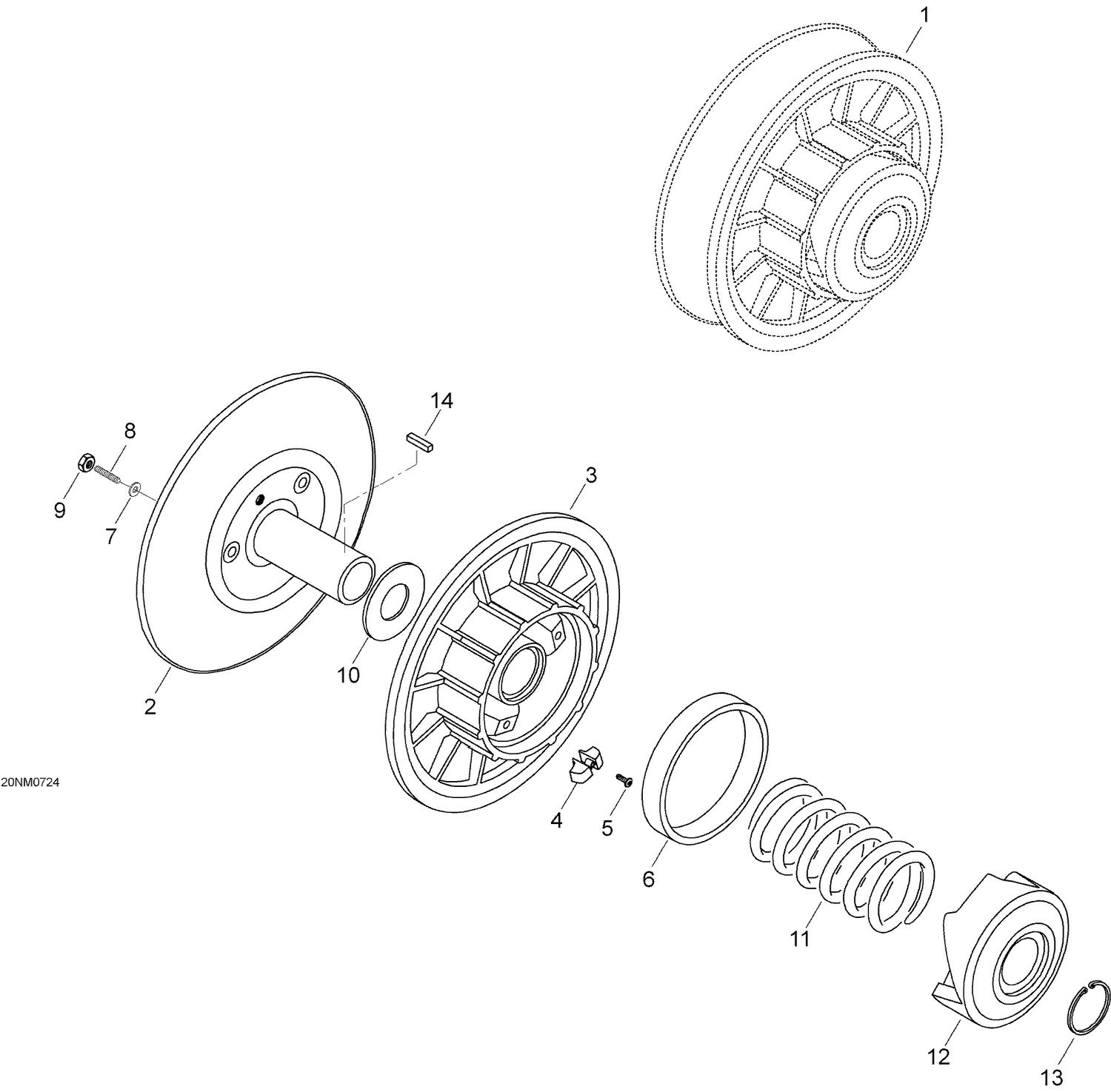

| Ref | Part Number | Description |
|---|
| 2 |
M140065 |
FIXED FLANGE - Call your local BRP dealership |
| 3 |
M140066 |
Sliding Flange |
| 4 |
140068 |
Cam Slide Shoe This part replaces M140068. |
| 5 |
Not |
Available As Spare Part - Screw |
| 6 |
417126308 |
BUSHING - Call your local BRP dealership |
| 7 |
420245370 |
WASHER - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Hex Set Screw |
| 9 |
232061414 |
Hex. Nut M6 |
| 10 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 11 |
M140056 |
RELEASE SPRING - Call your local BRP dealership |
| 12 |
M140070 |
CAM 35/30 DEGR. - Call your local BRP dealership |
| 13 |
371903100 |
CIRCLIP - Call your local BRP dealership |
