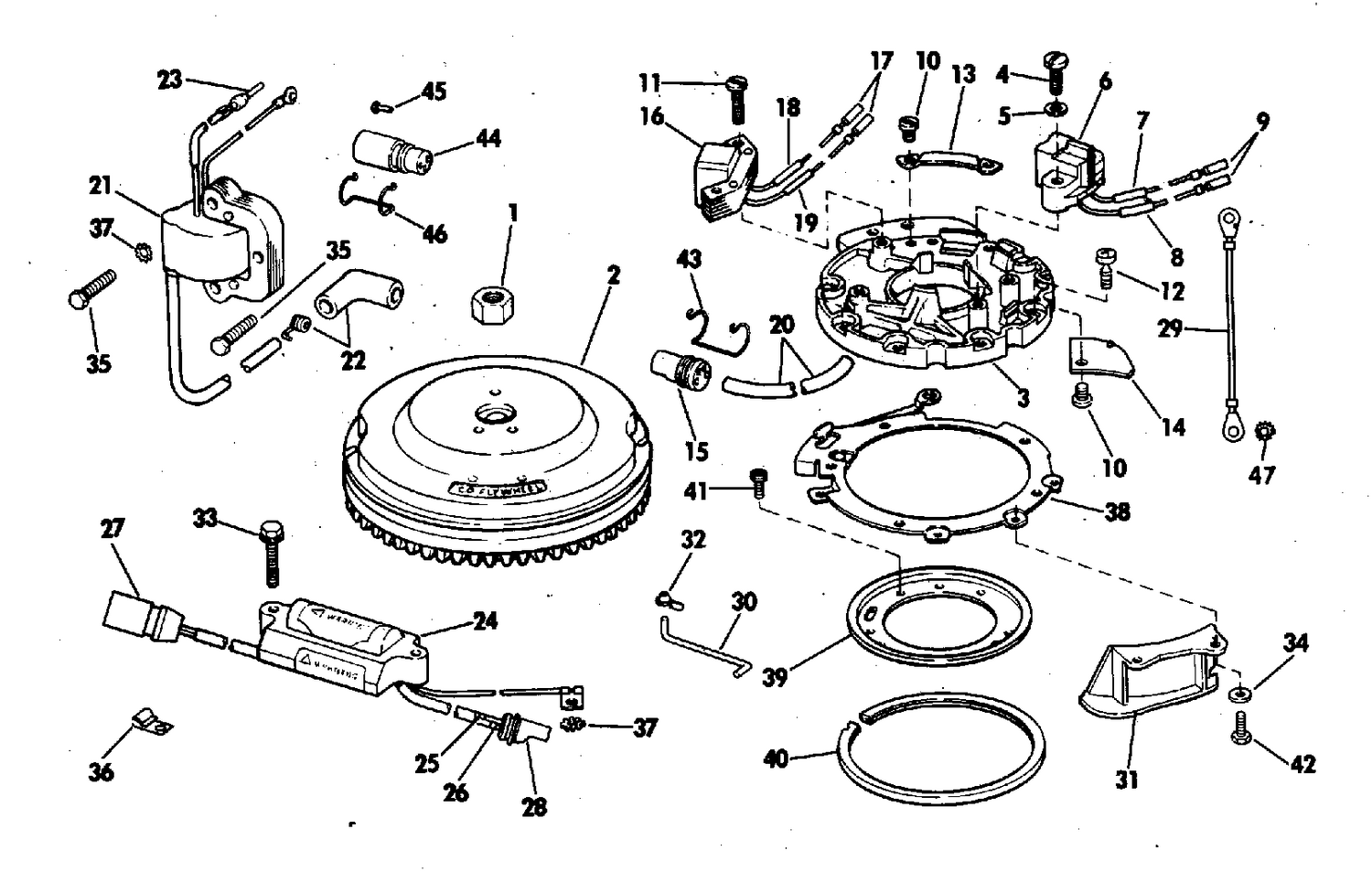

| Ref | Part Number | Description |
|---|
| 2 |
0583914 |
FLYWHEEL ASSEMBLY This part replaces 0389161. |
| 6 |
0583387 |
SENSOR ASSEMBLY This part replaces 0582069. |
| 12 |
0511460 |
VIS, dispositif de retenue |
| 13 |
0511458 |
COLLIER, fils |
| 14 |
0511459 |
CACHE, fils |
| 16 |
0581670 |
CHARGE COIL This part replaces 0582059. |
| 20 |
0511482 |
SLEEVE |
| 21 |
0581819 |
COIL ASSY. |
| 21 |
0581862 |
COIL ASSY |
| 24 |
0581927 |
POER PACK ASSY |
| 25 |
0511071 |
CLIP |
| 26 |
0511072 |
CLIP |
| 27 |
0511449 |
COMMECTOR, Coil to power pack |
| 29 |
0376349 |
FIL, masse |
| 30 |
0315298 |
LINK, Arm plt. to throttle lever |
| 31 |
0323284 |
CAM, Throttle control |
| 32 |
0380226 |
REATINER ASSEMBLY |
| 33 |
0317745 |
SCREW, Power pack to cover |
| 34 |
0306413 |
WASHER |
| 35 |
0306049 |
SCREW |
| 36 |
0310441 |
CLAMP, CPS lead |
| 38 |
0321665 |
RETAINER |
| 39 |
0332063 |
PLATE, Support This part replaces 0323398. |
| 40 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 41 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 42 |
0321701 |
SCREW, Cam |
| 43 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 0582060 |
0582029 |
CHARGE COIL & PLATE ASSY This part replaces 0582060. |
