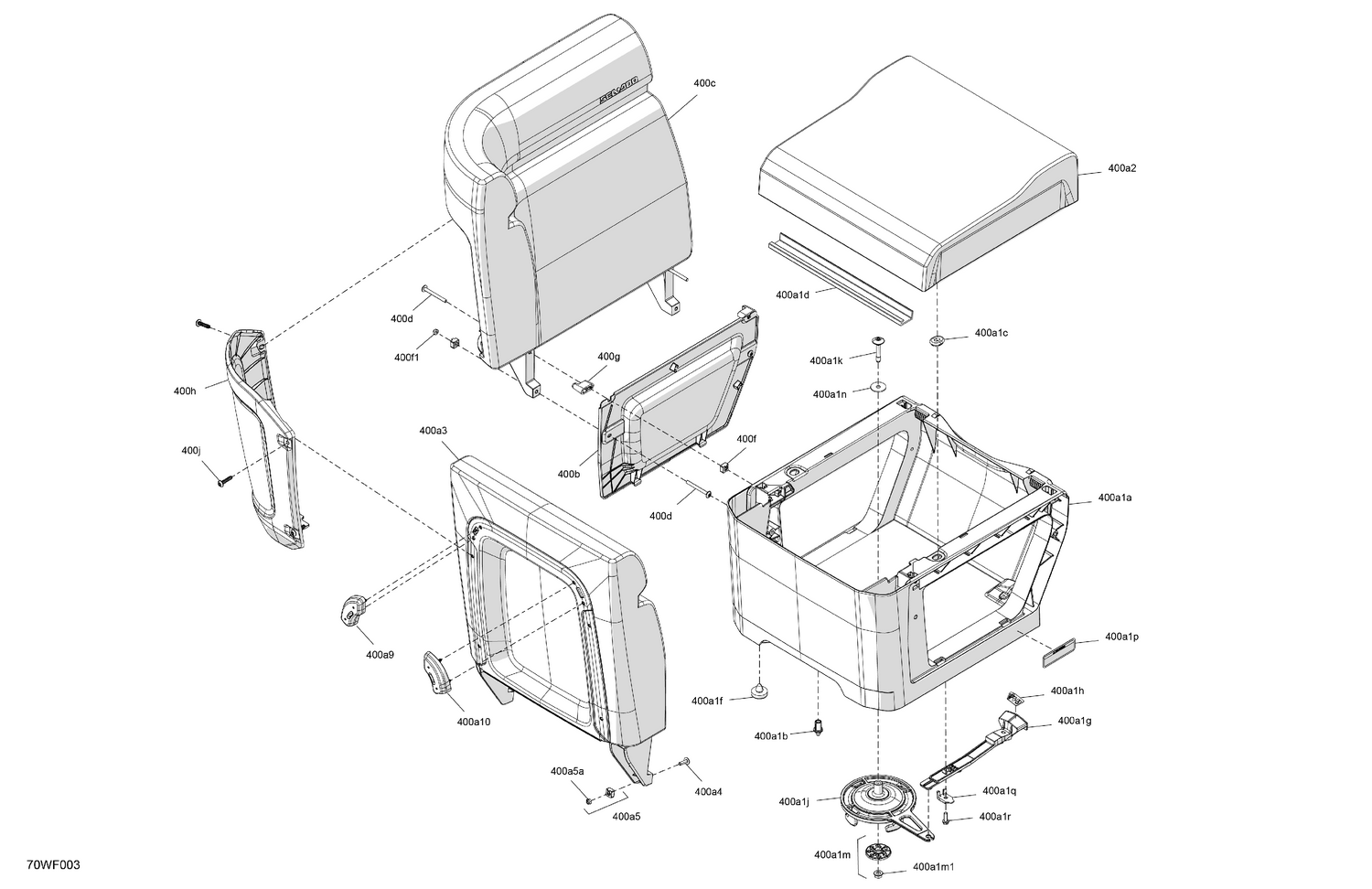

07- FURNITURE - Seat Corner Backrest (LH)
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 400a10 | 269004220 | RH Backrest Stopper |
| 400a1a | 295101127 | Seat Support Service Kit |
| 400a1b | 269003492 | Locator Rod |
| 400a1c | 705000321 | Oval Washer |
| 400a1d | 269003483 | Gutter |
| 400a1f | 269003502 | Rubber Stopper |
| 400a1g | 295101126 | Lever Latch Service Kit |
| 400a1h | 219905993 | Lever Decal |
| 400a1j | 269003311 | Seat Anchorage |
| 400a1k | 250001154 | Torx Head M8 X 50 S.GRIP |
| 400a1m1 | 233181600 | Hex. Flange Nut M8 |
| 400a1n | 250200130 | Flat Washer 8 mm |
| 400a1p | 219905883 | Seat Anchorage Warning Label |
| 400a1q | 269004160 | Guide |
| 400a1r | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 400a2 | 269003224 | Seat Cushion Ass'y |
| 400a3 | 269003305 | Backrest Ass'y |
| 400a4 | 250000234 | Torx Screw M6 X 20, Stainless |
| 400a5a | 232561200 | Brass Elastic Stop Nut M6 |
| 400a9 | 269004219 | LH Backrest Stopper |
| 400b | 295101046 | LH Panel Seat Switch Kit |
| 400c | 295101045 | LH Seat Corner Kit M |
| 400d | 250000631 | Torx Screw M6 X 60 |
| 400f1 | 232561200 | Brass Elastic Stop Nut M6 |
| 400g | 293900146 | Spacer |
| 400h | 269003509 | LH Exterior Support |
