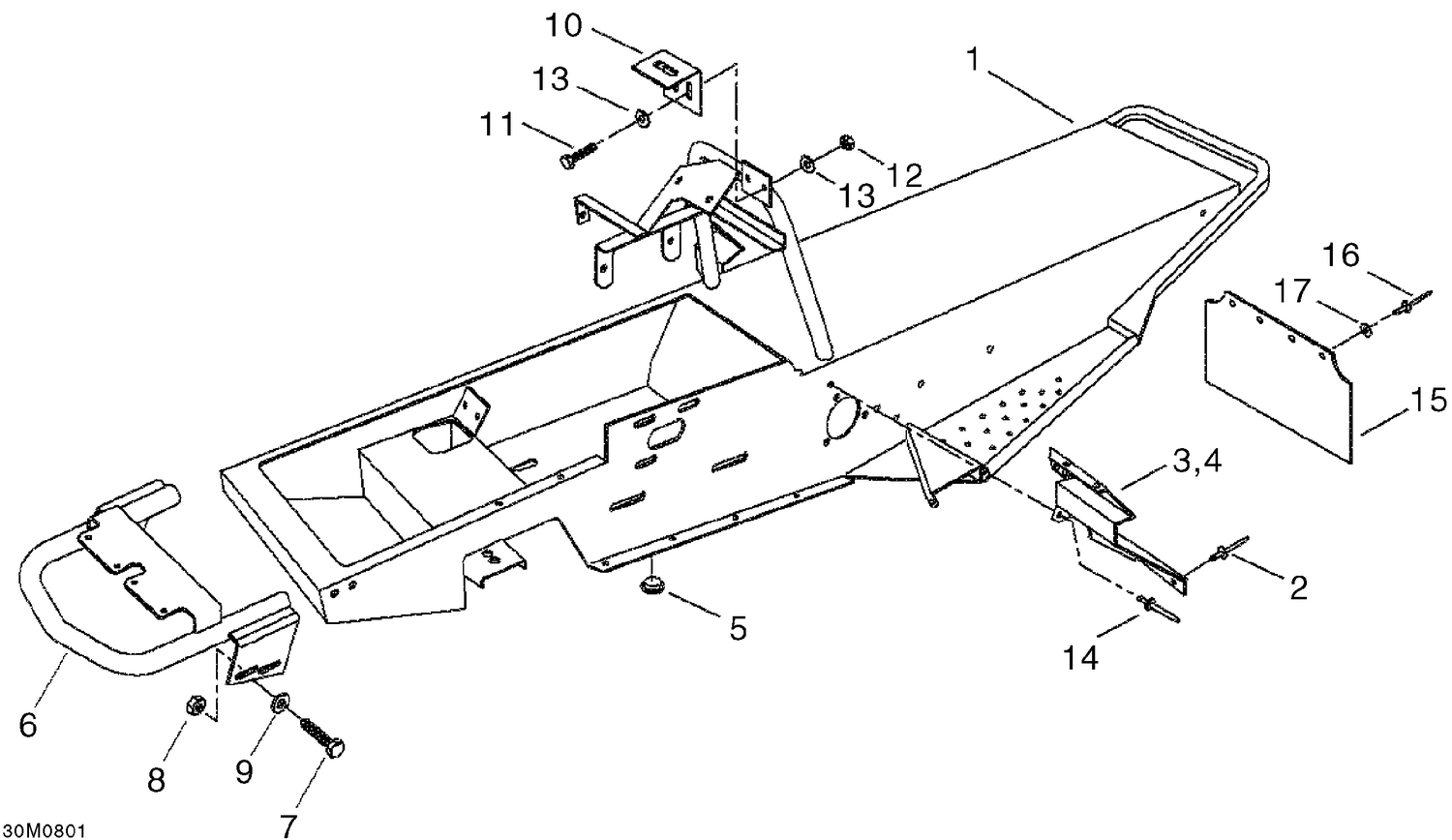

09- Frame
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518323447 | Frame Ass'y |
| 2 | 390402300 | Pop Rivet 3/16" |
| 3 | 518321950 | RH Footrest |
| 4 | 518321952 | LH Footrest |
| 5 | 414404800 | Plug |
| 6 | 518323466 | Bumper |
| 7 | 207162044 | Hex. Screw M6 X 20 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 224061201 | Flat Washer |
| 10 | 518321300 | Adjustable Plate |
| 11 | 207151644 | Hex. Screw M5 X 16 |
| 12 | 232551414 | Elastic Stop Nut M5 |
| 13 | 234051410 | Flat Washer M5 |
| 14 | 293150104 | Pop Rivet 3/16" |
| 15 | 572099800 | Snow Guard |
| 16 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
