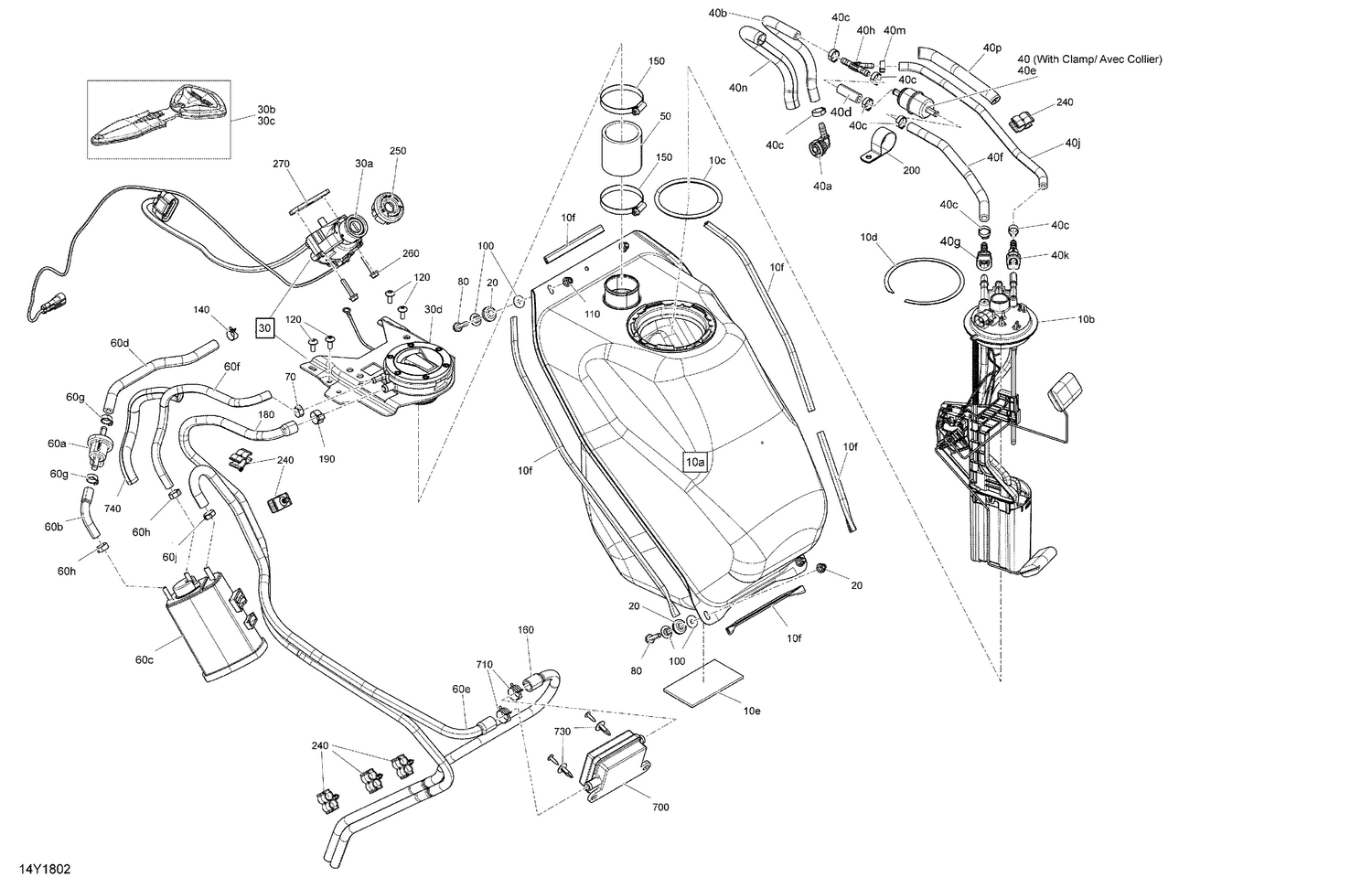

02- Fuel
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 219800366 | Fuel Tank |
| 10b | 709000779 | Fuel Pump Module |
| 10c | 219800248 | Seal Kit |
| 10d | 219800248 | Seal Kit |
| 10e | 709000553 | CARPET - Call your local BRP dealership |
| 10f | 219704354 | Trim 1000Mm Long |
| 20 | 709000582 | Grommet |
| 30 | 709000819 | Lock Kit |
| 30a | 710007316 | Ignition Switch This part replaces 710005640. |
| 30b | 710004408 | Ignition Key Kit |
| 30d | 219800405 | Fuel Cap kit with Key |
| 40a | 293710105 | Elbow Fitting 90° |
| 40b | 709000264 | Fuel Line 7.9 mm, Meter |
| 40c | 293650125 | Oetiker Clamp |
| 40d | 709000265 | Fuel Line 7.9 mm, Meter |
| 40e | 513034047 | Fuel Filter This part replaces 709000100. |
| 40f | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 40f | 709000264 | Fuel Line 7.9 mm, Meter |
| 40g | 709000684 | Female Quick Fitting Ass'y |
| 40h | 219800628 | Kit Y Fitting This part replaces 709000453. |
| 40j | 709000771 | Formed Hose |
| 40k | 293710192 | Quick Connect Pipe Fitting This part replaces 709000686. |
| 40m | 293650046 | Oetiker Clamp |
| 40n | 219704408 | Tubing 16 Mm 1000Mm Long |
| 40p | 219704408 | Tubing 16 Mm 1000Mm Long |
| 50 | 275501196 | Filler Neck Hose This part replaces 275500924. |
| 60a | 709000443 | Bleed Valve |
| 60b | 709000566 | Formed Hose |
| 60c | 709000090 | Vapor Canister |
| 60d | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 60e | 709000567 | Formed Hose |
| 60f | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 60g | 293650047 | Crimp Clamp, 15.3-706R |
| 60h | 293650025 | Oetiker Gear Clamp |
| 60j | 293650140 | Oetiker Clamp |
| 70 | 293650046 | Oetiker Clamp |
| 80 | 207662544 | Hex. Flange Screw M6 X 25 |
| 100 | 709001287 | Bushing This part replaces 709000716. |
| 110 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 120 | 250000534 | Tork Screw M6 X 16 |
| 140 | 513033029 | Universal Spring Clamp |
| 150 | 293650081 | Norma Clamp |
| 160 | 709000570 | Formed Hose |
| 180 | 709000813 | Formed Hose |
| 190 | 293650011 | Oetiker Clamp |
| 200 | 513033047 | Open Clamp |
| 240 | 709000571 | Hose Support |
| 250 | 710004182 | Ignition Switch Cap |
| 260 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 270 | 710001365 | Switch Support |
| 700 | 709000524 | Air Filter |
| 710 | 513033865 | Spring Clamp |
| 730 | 414745900 | Tuflock Phillips Plastic Screw |
