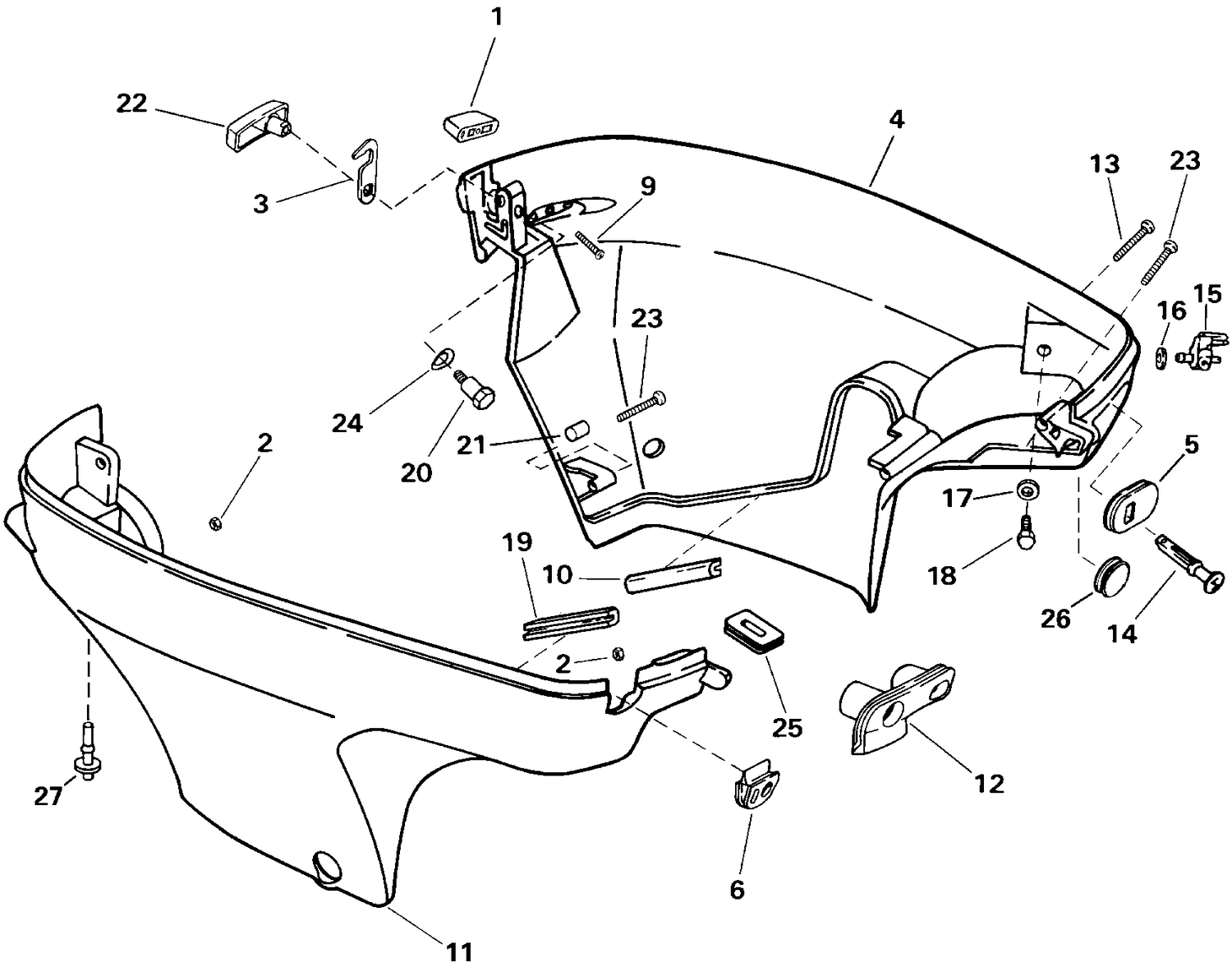

LOWER ENGINE COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0337413 | BUMPER, Cover |
| 3 | 0337414 | LATCH, Rear |
| 4 | 0449533 | ENGINE COVER, Lower, port |
| 6 | 0446253 | GROMMET, Starter motor cable |
| 10 | 0446240 | SEAL, Cover, port |
| 11 | 0446453 | ENGINE COVER, Lower, stbd. |
| 12 | 0446242 | GROMMET, Throttle |
| 13 | 0446246 | SCREW, Cover |
| 14 | 0338965 | CHOKE KNOB |
| 19 | 0446241 | SEAL, Cover, stbd. |
| 20 | 0441226 | SCREW, Handle to cover |
| 21 | 0446286 | ISOLATOR |
| 22 | 0437002 | HANDLE ASSY. |
| 23 | 0446245 | SCREW, Cover |
| 25 | 0446497 | GROMMET, Shift rod This part replaces 0446322. |
| 26 | 0446432 | GROMMET |
