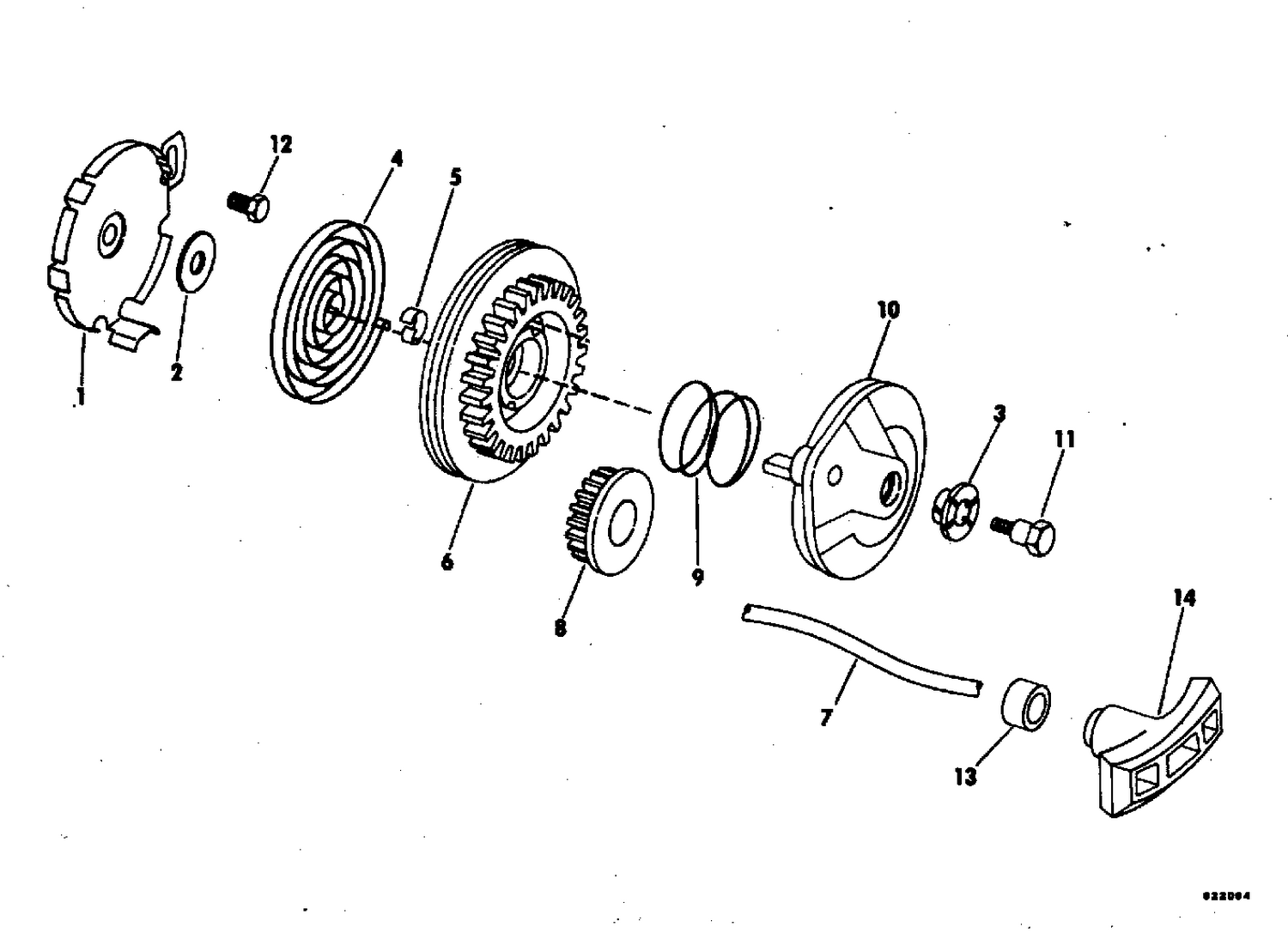

REWIND STARTER - 4.5
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387824 | CUP & STOMP |
| 3 | 0312708 | BUSHING |
| 4 | 0312932 | BUSHING |
| 5 | 0321371 | RETAINER, Starter |
| 6 | 0393618 | PULLEY, Starter This part replaces 0392619. |
| 7 | ROPE, | Starter |
| 8 | 0323614 | IDLER GEAR, Starer |
| 9 | 0312980 | SPRING ARM TO PULLEY |
| 10 | 0327777 | ARM, Idle gear |
| 11 | 0312761 | SHOULDEER SCREW, Starter |
| 12 | 0312975 | SCREW |
| 13 | 0325746 | BUMPER, HAND;E |
| 0392620 | 0393617 | REWIND STARTER ASSY. This part replaces 0392620. |
