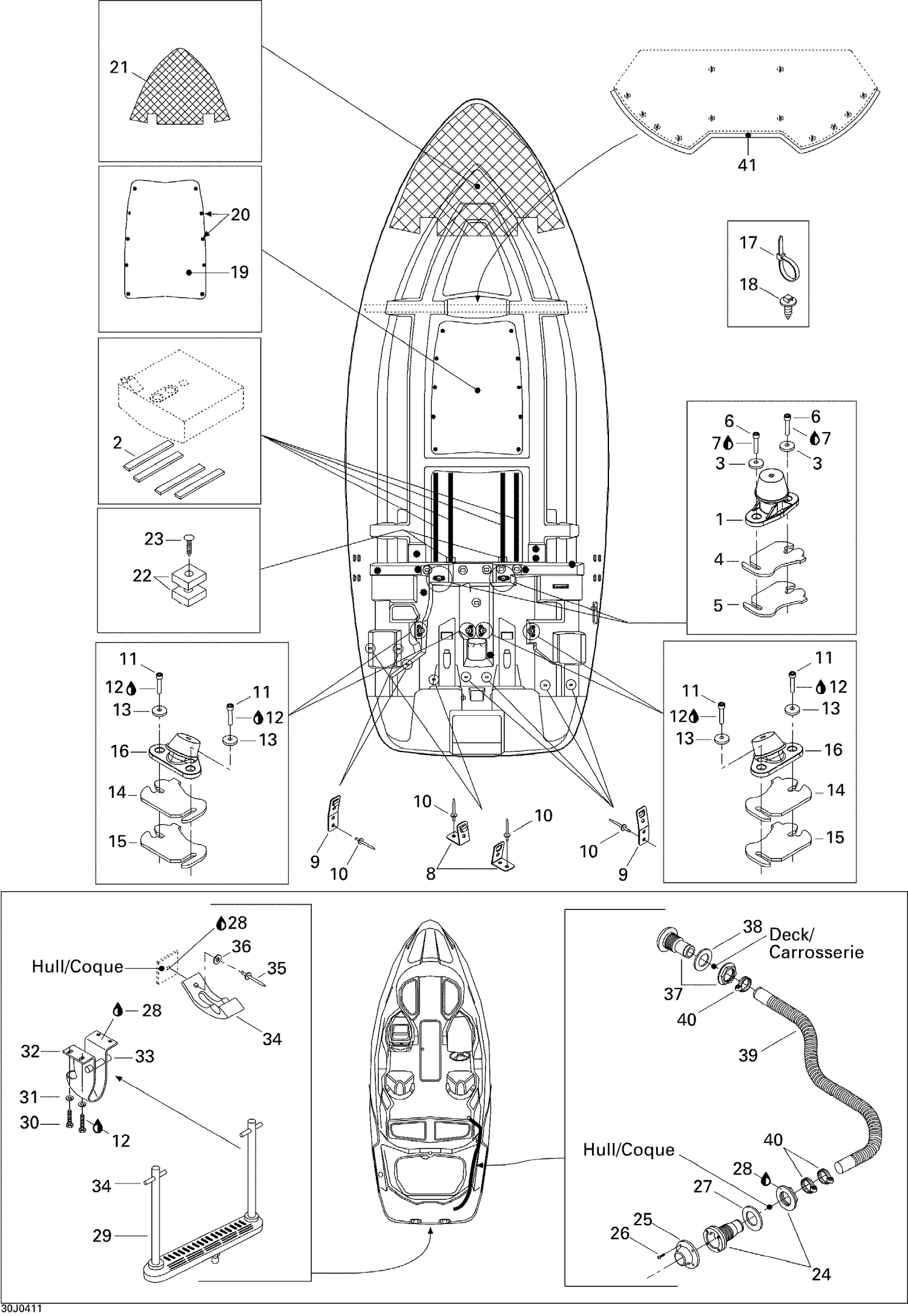

| Ref | Part Number | Description |
|---|
| 1 |
270001096 |
Engine Support Ass'y This part replaces 270000489. |
| 2 |
204560115 |
PROTECTOR PAD - Call your local BRP dealership |
| 3 |
250200018 |
Cone Washer |
| 4 |
0460868 |
NEEDS DESCRIPTION This part replaces 204250048. |
| 5 |
204250049 |
SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049. |
| 6 |
205084560 |
Socket Head Screw M8 X 45 |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 8 |
293850024 |
STRAP CLIP - Call your local BRP dealership |
| 9 |
204060017 |
Strap Clip 90° |
| 10 |
293150037 |
Avdel Rivet 3/16" |
| 11 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 12 |
293800060 |
Loctite 243, 10 ml |
| 13 |
250200018 |
Cone Washer |
| 14 |
270000445 |
SHIM 0.3 MM - Call your local BRP dealership |
| 15 |
270000762 |
Shim 1.3 mm This part replaces 270000446. |
| 16 |
270001081 |
Engine Support Ass'y This part replaces 270000612. |
| 17 |
293750008 |
Tie Wrap 368 mm |
| 17 |
414115200 |
Tie-Rap 180 mm |
| 18 |
293730040 |
Mount Dart This part replaces 293730018. |
| 19 |
204060804 |
Storage Liner |
| 20 |
293730006 |
Black, Dart |
| 21 |
204060856 |
Storage Carpet |
| 22 |
204060684 |
RUBBER PAD - Call your local BRP dealership |
| 23 |
293730014 |
Black Dart |
| 24 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 25 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 26 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 27 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 28 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 29 |
204060187 |
LADDER - Call your local BRP dealership |
| 30 |
207163560 |
Hex. Screw M6 X 35 |
| 31 |
234161601 |
Lock Washer Helical M6 |
| 32 |
204060141 |
U-BRACKET - Call your local BRP dealership |
| 33 |
211300021 |
ROLL PIN M8 X 55 - Call your local BRP dealership |
| 34 |
570027100 |
Hood Latch |
| 35 |
293150013 |
Pop Rivet 3/16" |
| 36 |
234052600 |
Flat Washer 5 mm, Stainless |
| 37 |
293710060 |
FITTING - Call your local BRP dealership |
| 38 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 39 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 40 |
293650074 |
Norma Clamp |
