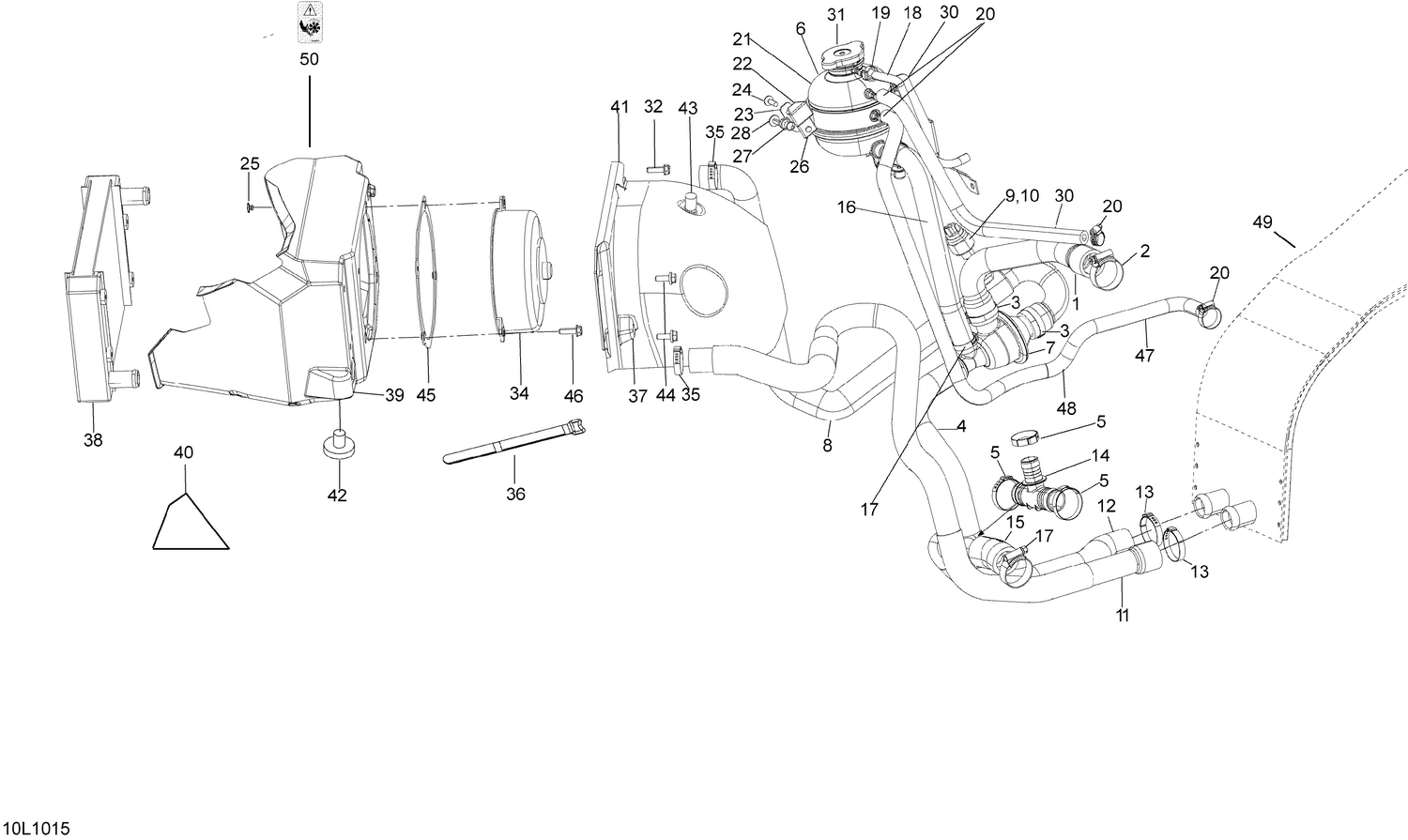

01- Cooling System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000522 | HOSE OUTLET - Call your local BRP dealership |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000181 | Oetiker Gear Clamp |
| 4 | 509000523 | Bypass Hose |
| 5 | 293650099 | Oetiker Gear Clamp |
| 6 | 219700362 | ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership This part replaces 293600038. |
| 7 | 509000499 | Thermostat Housing |
| 8 | 509000653 | RADIATOR HOSE - Call your local BRP dealership |
| 9 | 509000480 | SWITCH - Call your local BRP dealership |
| 10 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 11 | 509000588 | Air Radiator Hose |
| 12 | 509000589 | Return Radiator Hose |
| 13 | 509000045 | Oetiker Gear Clamp |
| 14 | 509000372 | T-Fitting |
| 15 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 16 | 509000655 | HOSE FILLING - Call your local BRP dealership |
| 17 | 509000442 | Gear Clamp |
| 18 | 509000598 | BREATHER HOSE - Call your local BRP dealership |
| 19 | 293650170 | Tridon Gear Clamp |
| 20 | 293650053 | Crimp Clamp |
| 21 | 509000368 | Coolant Tank |
| 22 | 509000852 | Reservoir support This part replaces 509000654. |
| 23 | 509000608 | Support |
| 24 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 25 | 36005 | Rivet |
| 26 | 509000609 | Support |
| 27 | 517303439 | Knob |
| 28 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 30 | 276000048 | Hose 6 mm |
| 31 | 509000187 | Pressure Cap |
| 32 | 205061244 | Socket Screw |
| 34 | 509000837 | Cooling Fan This part replaces 509000456. |
| 35 | 27011 | Clamp |
| 36 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 37 | 508000572 | Bumper |
| 38 | 509000488 | Radiator |
| 39 | 509001173 | Cooling Fan Shroud This part replaces 509000489. |
| 40 | 509000615 | Foam |
| 41 | 509001174 | Deflector This part replaces 509000558. |
| 42 | 570044700 | Rubber Bumper |
| 43 | 710000992 | Clip |
| 44 | 207661244 | Hex. Flange Screw M6 X 12 |
| 45 | 509000614 | Screw plate |
| 46 | 210262040 | Hex. Flanged Screw M6 X 20 |
| 47 | 509000601 | FORMED HOSE - Call your local BRP dealership |
| 48 | 415080000 | Tubing 16 mm |
