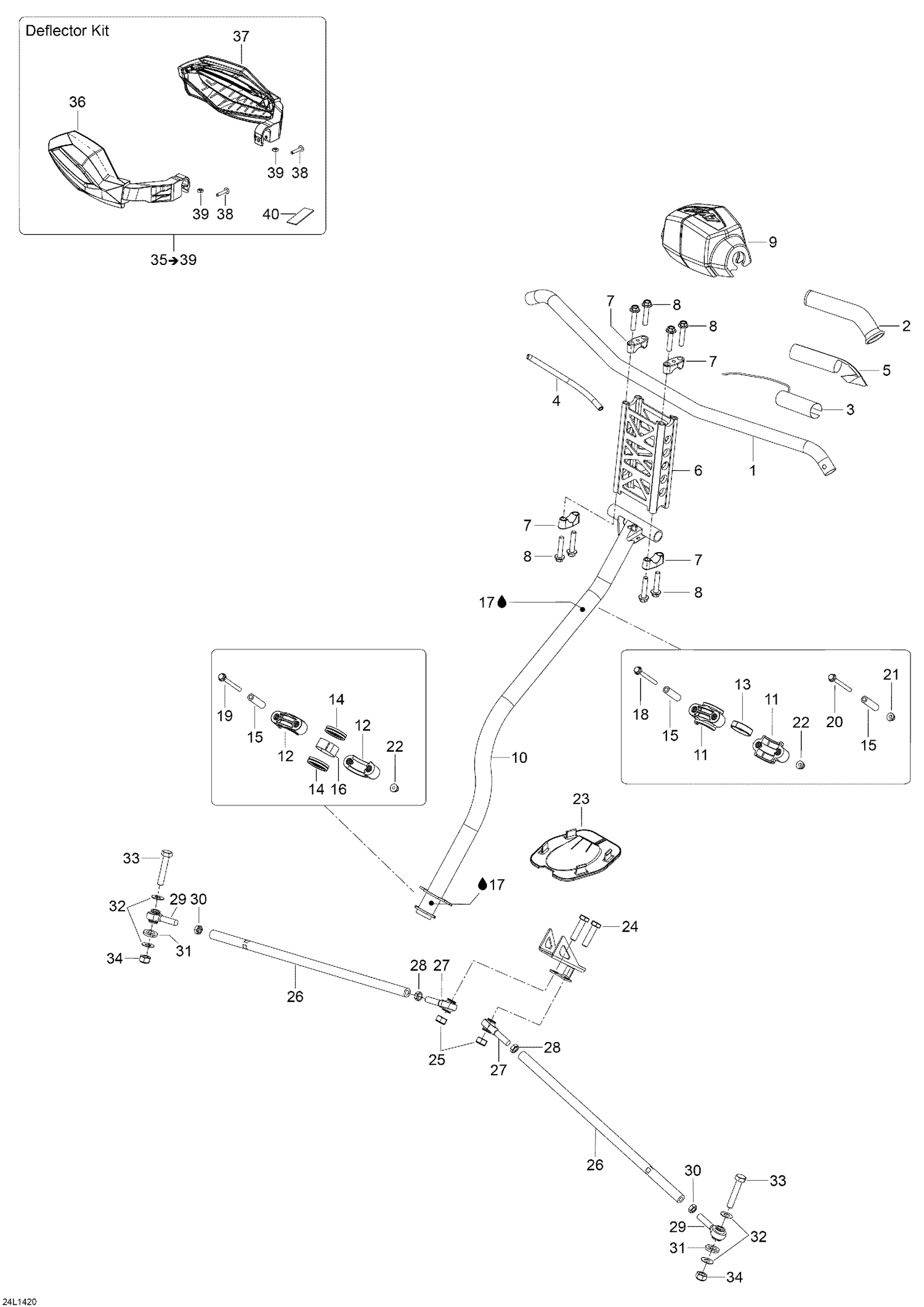

| Ref | Part Number | Description |
|---|
| 1 |
506152722 |
Handle Bar |
| 2 |
506152483 |
Grip |
| 3 |
506152428 |
Heated Film |
| 4 |
Not |
Available As Spare Part - Protector Tube |
| 5 |
506153176 |
Isolant This part replaces 506152548. |
| 6 |
506152616 |
Extension |
| 7 |
506152751 |
Steering Support This part replaces 506152395. |
| 8 |
250000352 |
Hex. Flanged Screw M8 x 40 |
| 9 |
506152553 |
Steering Pad |
| 10 |
506152962 |
Steering Column This part replaces 506152584. |
| 11 |
506152508 |
Half Housing Upper |
| 12 |
506152217 |
Half Housing Lower |
| 13 |
506152509 |
Vibrat. Gasket Upper |
| 14 |
506152518 |
Lower Vibration Ring |
| 15 |
506152297 |
Housing Bushing |
| 16 |
Not |
Available As Spare Part - Retain. Ring |
| 17 |
Not |
Available As Spare Part - Synthetic Grease |
| 18 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 19 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 20 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 22 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 23 |
506152163 |
Plate |
| 24 |
207004044 |
Hex. Screw M10 x 40 |
| 25 |
232500416 |
Elastic Stop Nut M10 |
| 26 |
506152496 |
Tie Rod |
| 27 |
506152081 |
Ball Joint |
| 28 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 29 |
506152019 |
Ball Joint |
| 30 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 31 |
NOT |
IN USE Washer NOT IN USE |
| 32 |
506152194 |
Washer |
| 33 |
207005544 |
Hex Screw M10 x 55 |
| 34 |
232500416 |
Elastic Stop Nut M10 |
| 36 |
Not |
Available As Spare Part - Deflector RH, White |
| 37 |
Not |
Available As Spare Part - Deflector LH, White |
| 38 |
250000501 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 39 |
250000498 |
SQUARE NUT M6 - Call your local BRP dealership |
