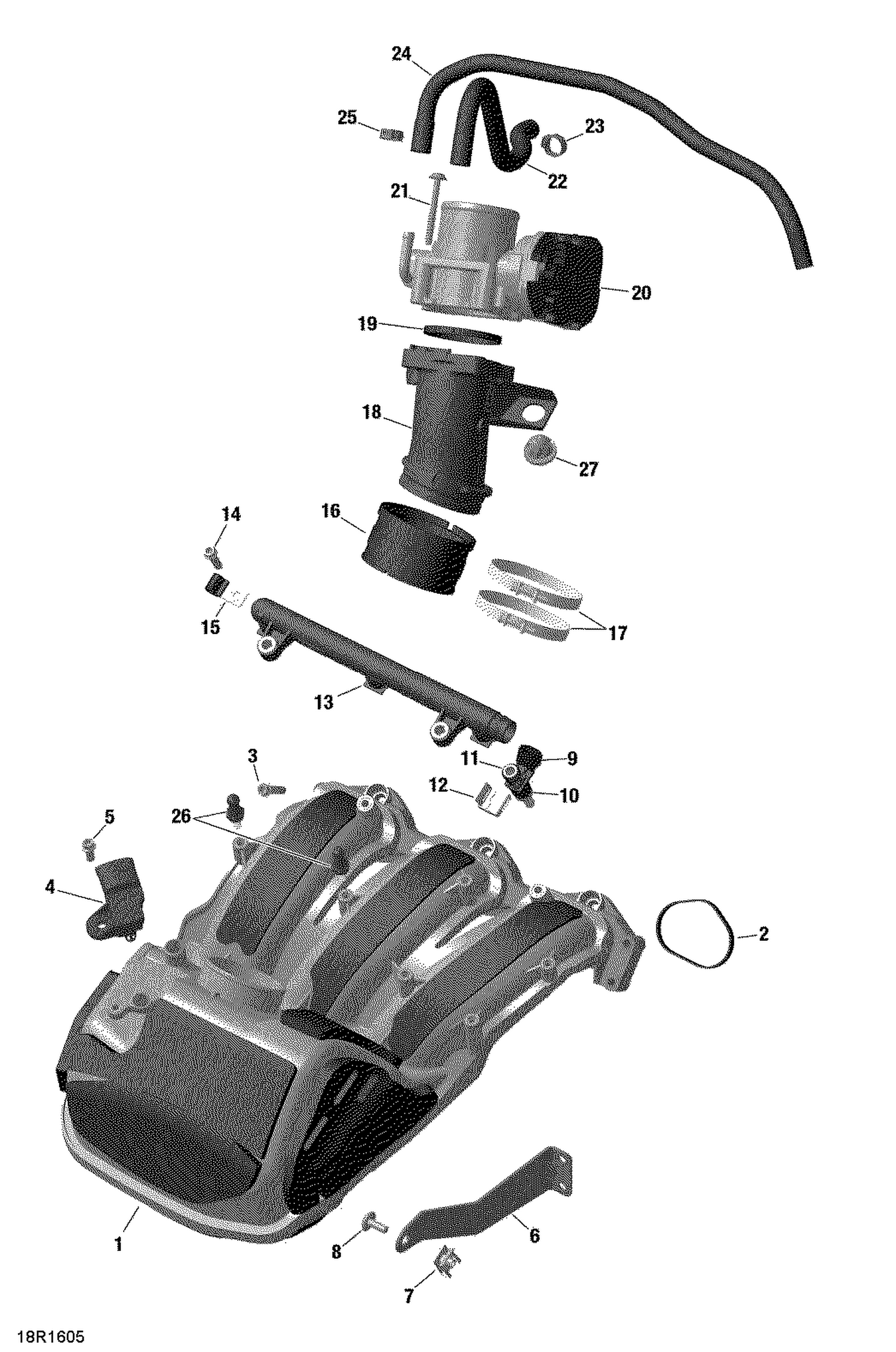

02- Air Intake Manifold and Throttle Body - 1200iTC 4-TEC
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420950745 | Gasket |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 707000995 | Pressure And Temperature Sensor |
| 5 | 420440162 | Torx Flange Screw M6 X 16 |
| 6 | 420951011 | SUPPORT - Call your local BRP dealership |
| 7 | 420942108 | Panel Nut M6 X 1 |
| 8 | 420241524 | Torx Screw M6 X 16 |
| 10 | 420431890 | O-Ring |
| 11 | 420631220 | O-Ring |
| 12 | 420853030 | Injector Clip |
| 13 | 420874810 | Fuel Rail |
| 14 | 420440234 | Torx Flange Screw M6 X 25 |
| 15 | 420253150 | CABLE CLAMP - Call your local BRP dealership |
| 16 | 420460490 | INTAKE ADAPTOR - Call your local BRP dealership |
| 17 | 420251209 | Clamp |
| 18 | 420867560 | CONNECTING TUBE - Call your local BRP dealership |
| 19 | 420850130 | Gasket Rubber |
| 20 | 420893148 | Throttle Body |
| 21 | 420441588 | Torx Flange Screw M6 X 50 |
| 22 | 420460483 | MOLDED HOSE - Call your local BRP dealership |
| 23 | 420851458 | Clamp |
| 25 | 293650125 | Oetiker Clamp |
| 26 | 420441840 | Screw |
